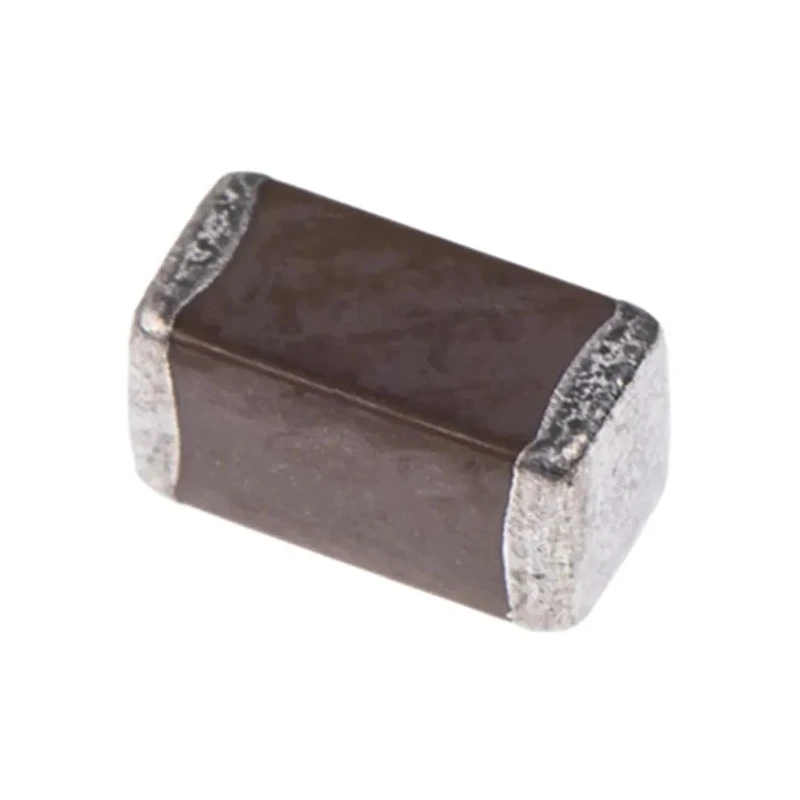

TDK Multilayer Ceramic Capacitor 100 nF 16V dc ±10 % Surface Mount CGA2B1X7R1C104K050BC

Free Delivery in India | Lowest Global Shipping Charges

TDK Multilayer Ceramic Capacitor 100 nF 16V dc ±10 % Surface Mount CGA2B1X7R1C104K050BC



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	16V dc
Brand	TDK
Height	0.55mm
Length	3.2mm
Model	CGA2B1X7R1C104K050BC
Packaging	Tape & Reel
Width	0.5mm
Mount Type	Surface
Series	CGA2
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0402
Dielectric	X7R
Automotive Standard	AEC-Q200

Key Features

This capacitor uses an X7R dielectric type suitable for stable performance over wide temperature ranges.
It complies with automotive AEC-Q200 standards, ensuring high reliability in automotive applications.
The package size is 0402 with tape and reel packaging for automated assembly.
Operational temperature range spans from -55°C to 125°C making it durable under harsh conditions.
Its low Equivalent Series Resistance (ESR) and low self-heating characteristics provide excellent ripple current handling.
Surface mount termination type ensures compatibility with standard SMT assembly lines.
Compact dimensions of 3.2 mm length, 0.5 mm width, and 0.55 mm height optimize PCB space.
The capacitor is RoHS compliant and manufactured in Japan for quality assurance.

Product Description

TDK CGA2B1X7R1C104K050BC is a premium 100 nF Multilayer Ceramic Capacitor (MLCC) designed for surface mounting in electronic circuits. It is rated at 16V DC with a tolerance of ±10 %, providing consistent capacitance performance across the operating voltage range. Featuring the X7R dielectric, this capacitor exhibits excellent capacitance stability over a broad temperature range from -55°C to 125°C.

Constructed as part of TDK’s reputable CGA2 series, these capacitors leverage multilayer ceramic technology with multiple thin ceramic layers, enabling high capacitance in a compact 0402 package size. The capacitor is supplied in tape and reel packaging, which supports automated high-precision placement machines for mass production processes.

Meeting strict automotive standard AEC-Q200, this component is suited for critical automotive electronics applications such as sensor modules, engine control units, and infotainment systems where reliability and performance are essential. Its low Equivalent Series Resistance (ESR) and low self-heating allow it to handle ripple currents efficiently, maintaining durability and accuracy.

Dimensions are optimized for space-saving designs (3.2 mm length, 0.5 mm width, and 0.55 mm height), allowing integration into compact electronic devices. The surface mount termination ensures ease of assembly on printed circuit boards (PCBs).

This capacitor provides excellent heat resistance and mechanical strength for longevity. It offers superior reliability guaranteed by TDK's mature manufacturing processes. The RoHS certification confirms compliance with environmental safety standards.

The product is made in Japan, reflecting TDK's commitment to quality. It is ideally suited for applications in automotive systems, industrial electronics, smart meters, solar inverters, battery chargers, and communication devices.
