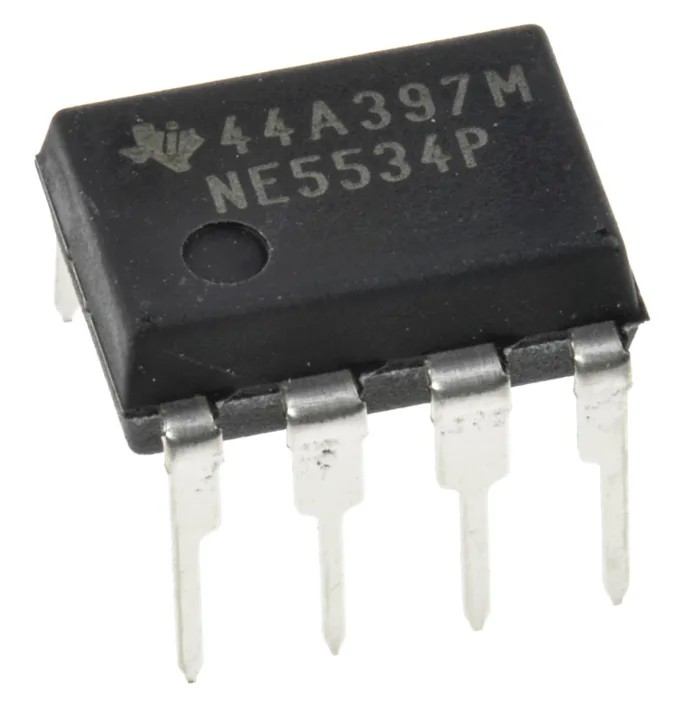

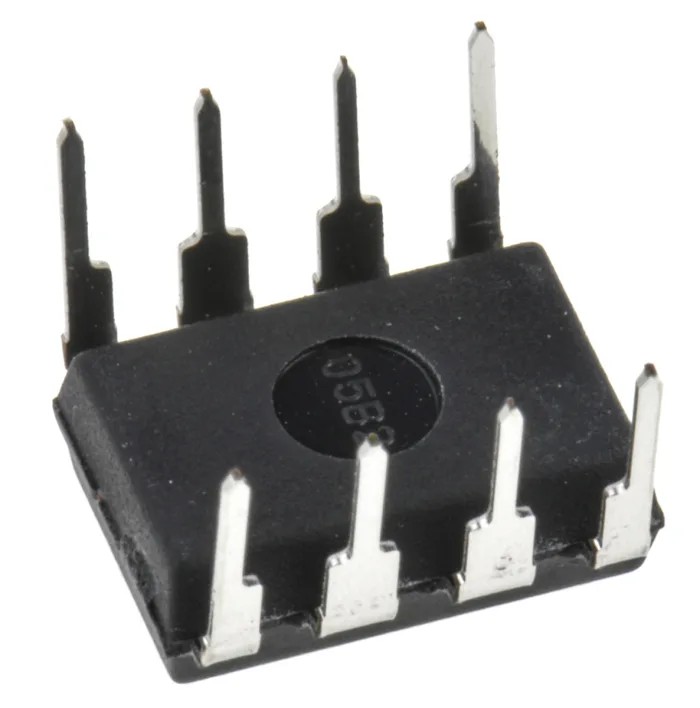

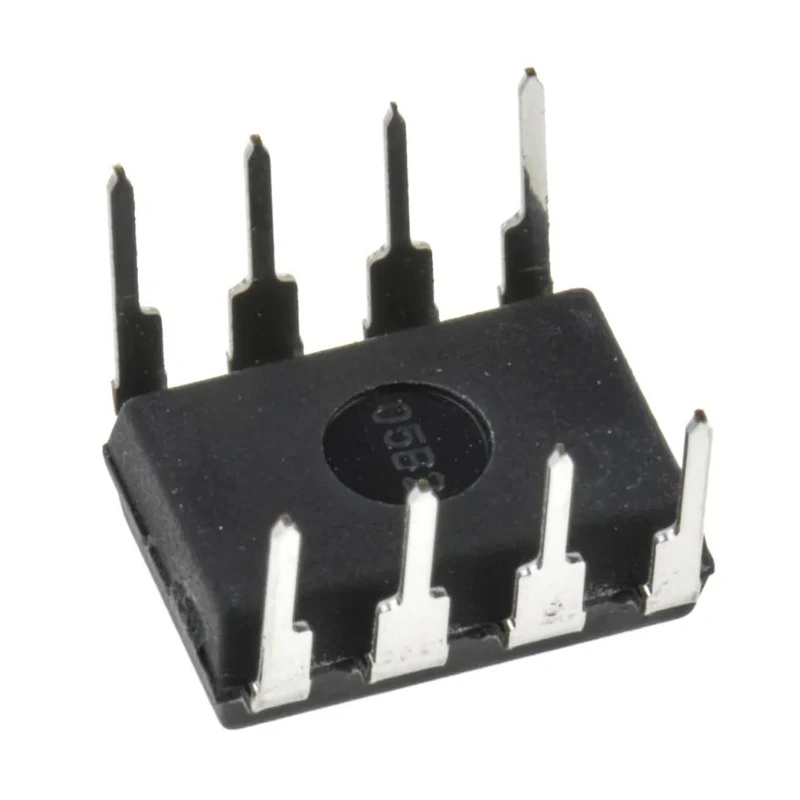

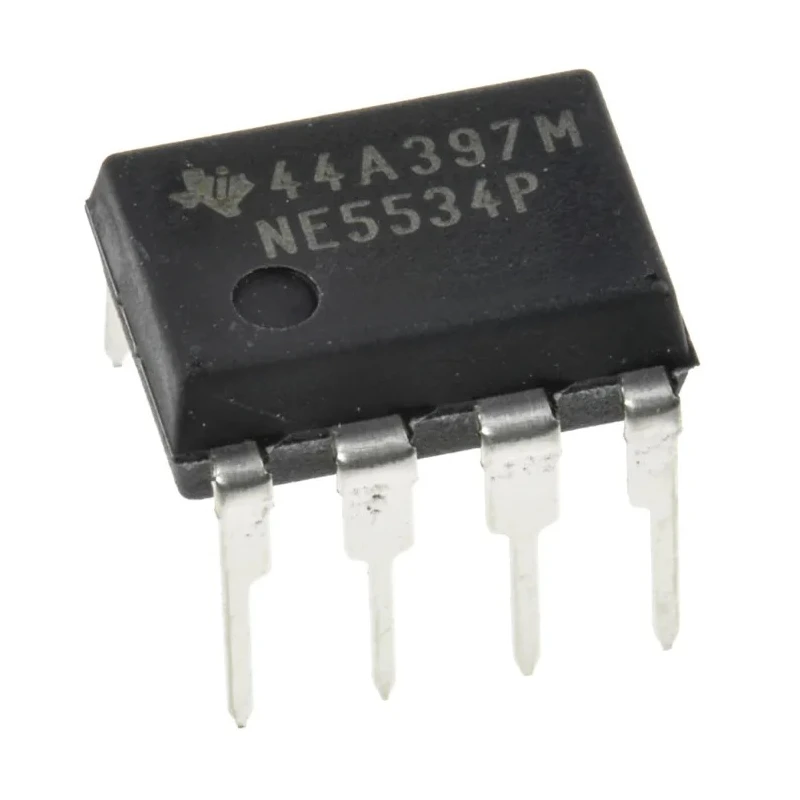

Texas Instruments Operational Amplifier 10 MHz 8-Pin 22V PDIP NE5534P
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | NE5534P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | NE5534 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -22V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 2000 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 400 nA |
Key Features
- High gain bandwidth product of 10 MHz for precise signal amplification.
- Single channel configuration suitable for various electronic circuits.
- Through Hole mount type for easy PCB integration.
- Operates at a voltage range of -22V to 22V DC supply.
- Low input offset voltage of 5 mV ensuring accuracy.
- Input bias current of 2000 nA supporting low noise applications.
- Slew rate of 13 V/μs allowing fast response to signal changes.
- Operative temperature range from 0°C to 70°C for reliable performance.
Product Description
Texas Instruments NE5534P operational amplifier is a high-quality electronic semiconductor device designed for precise analog signal processing. Featuring a gain bandwidth product of 10 MHz, this amplifier is ideal for laboratory, industrial, and electronic manufacturing applications requiring low noise and high speed.
This single-channel operational amplifier comes in an 8-pin PDIP package with Through Hole mounting, enabling easy installation on custom PCBs. It supports a broad supply voltage from -22V to 22V, making it versatile for different circuit designs.
With an input offset voltage of 5 mV and bias current of 2000 nA, the NE5534P delivers high accuracy with minimal distortion. Its slew rate of 13 V/μs ensures rapid response suitable for instrumentation and audio amplification.
Operating efficiently in temperatures between 0°C and 70°C, this component is suitable for typical industrial and laboratory environments. Compact dimensions (9.81 mm x 6.35 mm x 4.57 mm) facilitate use in space-constrained applications. The device is compliant with RoHS standards, ensuring environmentally responsible manufacturing.
This operational amplifier is manufactured in Mexico, meeting stringent quality requirements for semiconductor components used in electronics and electrical systems. High gain bandwidth of 10 MHz. Single channel, 8-pin PDIP package.
Through Hole mount type. Wide supply voltage range of -22V to 22V. Low input offset voltage of 5 mV for high accuracy. Input bias current of 2000 nA. Slew rate of 13 V/μs for fast signal response. Operating temperature range: 0°C to 70°C.
Compact physical dimensions. RoHS compliant manufactured in Mexico.
Texas Instruments offers reliable semiconductor components trusted in industrial, laboratory, construction, and manufacturing sectors. Explore more Operational Amplifiers and electronic components at EnvMart for professional use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NE5534P operational amplifier has a gain bandwidth product of 10 MHz, making it suitable for precise signal amplification in various applications.
It operates within a supply voltage range of -22V to 22V, allowing for versatility in different circuit designs.
The input offset voltage of this model is 5 mV, which contributes to its accuracy in signal processing.
This operational amplifier has a slew rate of 13 V/μs, enabling fast response to signal changes.
The dimensions of this model are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, making it compact for various applications.
It features a single channel configuration, suitable for various electronic circuits.
The input bias current is 2000 nA, which supports low noise applications.
This operational amplifier operates efficiently within a temperature range of 0°C to 70°C, suitable for typical industrial and laboratory environments.
It utilizes a Through Hole mount type, which facilitates easy installation on custom PCBs.
Yes, the NE5534P is RoHS compliant, ensuring environmentally responsible manufacturing standards are met.
This operational amplifier is manufactured in Mexico, adhering to stringent quality requirements for semiconductor components.
It is suitable for laboratory, industrial, and electronic manufacturing applications that require low noise and high speed in signal processing.
