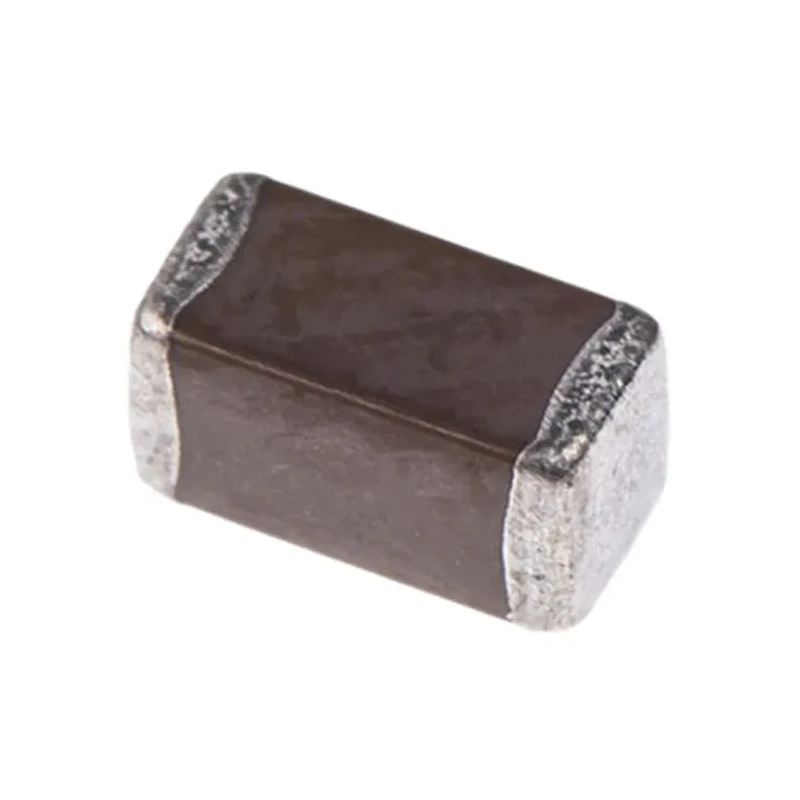

TDK Multilayer Ceramic Capacitor 220nF 16V DC ±10% Surface Mount 0603 CGA3E2X7R1C224K080AA

Free Delivery in India | Lowest Global Shipping Charges

TDK Multilayer Ceramic Capacitor 220nF 16V DC ±10% Surface Mount 0603 CGA3E2X7R1C224K080AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	16V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2X7R1C224K080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	220nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0603
Dielectric	X7R
Automotive Standard	AEC-Q200

Key Features

Built with X7R dielectric for stable performance across temperature ranges.
Automotive-grade AEC-Q200 certified for high reliability.
Compact 0603 package size measuring 1.6mm x 0.8mm x 0.8mm (LxWxH).
Offers low equivalent series inductance (ESL) and excellent frequency characteristics.
Suitable for automotive applications like battery line smoothing and sensor modules.
Operating temperature range from -55°C to 125°C ensures versatile use.
Termination type is surface mount enabling efficient automatic assembly.
RoHS compliant ensuring environmental safety and regulatory compliance.

Product Description

TDK CGA3E2X7R1C224K080AA multilayer ceramic capacitor offers a capacitance of 220nF with a voltage rating of 16V DC, designed for surface mount applications in a compact 0603 package.

This capacitor employs the X7R dielectric material, providing excellent stability and performance over a broad temperature range from -55°C to 125°C. It is AEC-Q200 qualified, making it ideal for automotive electronics requiring high reliability, such as battery line smoothing, sensor modules, engine control units, anti-lock brake systems, and infotainment systems.

These capacitors are manufactured using precision technology to enable multiple thin ceramic dielectric layers, resulting in high capacitance within a small form factor. They exhibit low equivalent series inductance (ESL) and low equivalent series resistance (ESR), ensuring low self-heating and superior ripple resistance.

Additional features include a surface mount termination type facilitating automated assembly processes, and packaging in tape and reel format for efficient system integration. The product complies with RoHS directives, confirming adherence to environmental safety standards.

Typical industrial and commercial use cases include automotive electronics, smart meters, smart grids, solar inverters, and AC-DC battery chargers where reliability and performance are critical.

Built with X7R dielectric for stable performance across temperature ranges. Automotive-grade AEC-Q200 certified for high reliability. Compact 0603 package size measuring 1.6mm x 0.8mm x 0.8mm (LxWxH). Offers low equivalent series inductance (ESL) and excellent frequency characteristics.

Suitable for automotive applications like battery line smoothing and sensor modules. Operating temperature range from -55°C to 125°C ensures versatile use. Termination type is surface mount enabling efficient automatic assembly.

RoHS compliant ensuring environmental safety and regulatory compliance. Packaging includes tape and reel format for optimized manufacturing insertion.

Explore more high-quality Multilayer Ceramic Capacitors from TDK and other reliable brands in the Electronics Components category at EnvMart for your precise industrial and automotive needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a capacitance of 220nF and a voltage rating of 16V DC.

The operating temperature range is from -55°C to 125°C, allowing for versatile use in various applications.

It employs X7R dielectric material, which provides stable performance across temperature ranges.

The capacitor is packaged in a compact 0603 size, measuring 1.6mm in length, 0.8mm in width, and 0.8mm in height.

This model features a surface mount termination type, which facilitates efficient automatic assembly.

Yes, it is RoHS compliant, ensuring adherence to environmental safety standards.

It is AEC-Q200 qualified, making it suitable for automotive applications requiring high reliability.

The capacitor is packaged in tape and reel format, which is optimized for manufacturing insertion.

It is suitable for automotive electronics, such as battery line smoothing, sensor modules, and engine control units.

It offers low equivalent series inductance (ESL) and low equivalent series resistance (ESR), ensuring low self-heating and superior ripple resistance.

The tolerance for this model is ±10%.

The country of origin for this capacitor is India.
