Texas Instruments Operational Amplifier 100 kHz, 8-Pin MDIP LMC6062IN/NOPB

Free Delivery in India | Lowest Global Shipping Charges

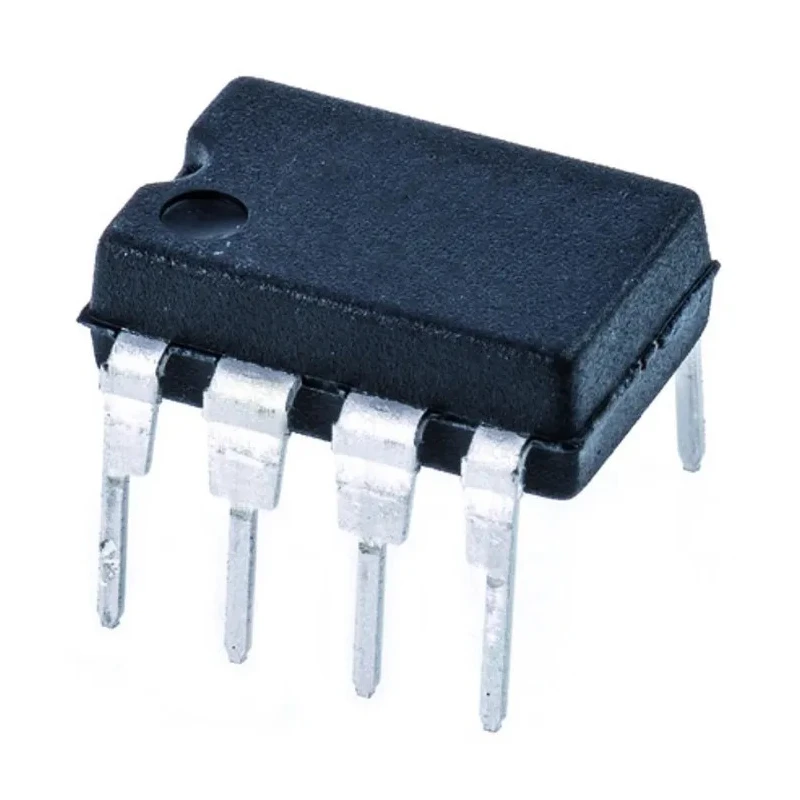

Texas Instruments Operational Amplifier 100 kHz, 8-Pin MDIP LMC6062IN/NOPB

Name: Texas Instruments Operational Amplifier 100 kHz, 8-Pin MDIP LMC6062IN/NOPB
Brand: Texas Instruments
SKU: 195225



Category Operational Amplifier Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	3.3mm
Length	9.27mm
Model	LMC6062IN/NOPB
Width	6.35mm
Mount Type	Through Hole
Series	LMC6062
Output Current	13mA
Maximum Operating Temperature	85°C
Package Type	MDIP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	15.5V
Minimum Supply Voltage	5V
GBP - Gain Bandwidth Product	100kHz
Input Bias Current	4 pA
Slew Rate	0.04V/μs
Input Offset Current	2 pA

Key Features

This operational amplifier has a gain bandwidth of 100 kHz.
It operates from a minimum supply voltage of 5 V up to a maximum of 15.5 V.
The package type is an 8-pin Molded Dual Inline Package (MDIP) with through hole mounting.
It features low input bias current of 4 picoamperes and input offset voltage of 800 microvolts.
Operating temperature ranges from -40°C to 85°C, ensuring reliability in harsh environments.
The device delivers a maximum output current of 13 mA with a slew rate of 0.04 V/μs.
The series is LMC6062 CMOS operational amplifiers known for low noise and precision.
The compact dimensions are 9.27 mm length, 6.35 mm width, and 3.3 mm height.

Product Description

Texas Instruments LMC6062IN/NOPB is a high-performance operational amplifier featuring a gain bandwidth product of 100 kHz and supplied in an 8-pin MDIP (Molded Dual Inline Package) designed for through hole mounting. It operates over a supply voltage range from 5 V to 15.5 V, making it suitable for various analog electronic circuits.

This device provides low distortion and offset, with an input offset voltage of 800 microvolts and a very low input bias current of 4 picoamperes, enhancing precision signal amplification. Its slew rate is 0.04 volts per microsecond with a maximum output current capability of 13 mA.

The amplifier operates reliably over industrial temperature ranges from -40°C to 85°C, facilitating its use in demanding applications such as instrumentation, data acquisition, industrial automation, and communications equipment.

With a compact MDIP package dimensions of 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height, the LMC6062IN/NOPB fits well in space-constrained designs. The product is RoHS compliant, ensuring adherence to environmental regulations.

This operational amplifier is part of the LMC/LPC CMOS series, widely used in precision low power analog circuits due to its reliability and low power consumption. This operational amplifier has a gain bandwidth of 100 kHz.

Supports a wide supply voltage range from 5 V to 15.5 V. Equipped with low input bias current and low input offset voltage for precision applications. Operates reliably over a broad temperature range (-40°C to 85°C). Compact 8-pin MDIP package suitable for through hole mounting.

Maximum output current is 13 mA with a slew rate of 0.04 V/μs. RoHS compliant ensuring environmental safety. Ideal for instrumentation, industrial automation, and communication systems. Explore more high-quality Operational Amplifiers and semiconductor components in the Electronics & Electricals category at EnvMart for your industrial and laboratory requirements.
