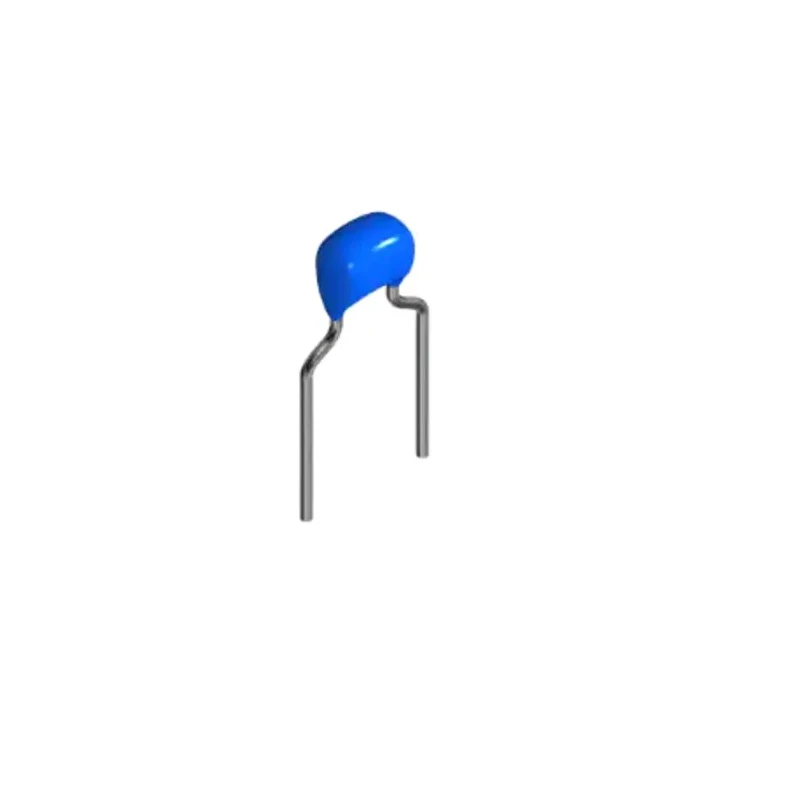

TDK Multilayer Ceramic Capacitor 220 nF, 50V DC, ±10 % Tolerance, Radial Push-in FG24X7R1H224KNT06

Free Delivery in India | Lowest Global Shipping Charges

TDK Multilayer Ceramic Capacitor 220 nF, 50V DC, ±10 % Tolerance, Radial Push-in FG24X7R1H224KNT06



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	3mm
Length	5.5mm
Model	FG24X7R1H224KNT06
Packaging	Tape
Width	3mm
Mount Type	Push-in
Series	FG
Termination Type	Radial
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	220nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Lead Diameter	0.5mm
Dielectric	X7R
Lead Spacing	5mm

Key Features

220 nF capacitance provides reliable filtering and decoupling in electronic circuits.
Rated for 50V DC to suit a wide range of power supply and signal applications.
±10% tolerance ensures precise performance and stable capacitance values.
Radial push-in mount design facilitates easy PCB integration and installation.
X7R dielectric for stable characteristics across temperature range.
FG series from TDK delivers robust quality and RoHS compliance.
Operating temperature from -55°C up to 125°C, suitable for demanding environments.
5mm lead spacing and 0.5mm lead diameter for standard PCB layouts.

Product Description

TDK FG24X7R1H224KNT06 is a high-performance multilayer ceramic capacitor designed to deliver 220 nF capacitance for circuit filtering, decoupling, and noise reduction applications. The device operates at a rated voltage of 50V DC, offering versatility across electronic, power, and industrial circuits.

This capacitor features a ±10% tolerance, ensuring reliable performance and consistent capacitance values. Its radial push-in mount makes it easy to install into printed circuit boards, providing secure mechanical and electrical connections.

220 nF capacitance provides reliable filtering and decoupling in electronic circuits. Rated for 50V DC to suit a wide range of power supply and signal applications. ±10% tolerance ensures precise performance and stable capacitance values.

Radial push-in mount design facilitates easy PCB integration and installation. X7R dielectric for stable characteristics across temperature range. FG series from TDK delivers robust quality and RoHS compliance. Operating temperature from -55°C up to 125°C, suitable for demanding environments.

Compact dimensions: 5.5mm length x 3mm width x 3mm height for space-saving designs. 5mm lead spacing and 0.5mm lead diameter for standard PCB layouts.

The X7R dielectric ensures strong electrical stability over a wide temperature range, making the capacitor suitable for use in both industrial and commercial electronics. The capacitor is RoHS-compliant, halogen-free, and meets high environmental standards for electronic manufacturing.

Practical use cases include power supply bypassing, smoothing, snubber circuits, PFC input filters, and noise suppression in automotive and industrial motor applications. The product's compact size and robust voltage rating make it ideal for high-density PCB layouts.

TDK is recognized worldwide for quality passive components, and the FG24X7R1H224KNT06 model is part of their FG series, tailored for both general and professional applications. Explore more Multilayer Ceramic Capacitors and related electronic components on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a capacitance value of 220 nF, making it suitable for circuit filtering and decoupling applications.

It is rated for a voltage of 50V DC, which allows it to be used in a variety of power supply and signal applications.

The capacitor features a tolerance of ±10%, ensuring reliable performance and stable capacitance values during operation.

This model utilizes a radial push-in mount design, facilitating easy installation into printed circuit boards.

It uses X7R dielectric, which provides stable electrical characteristics across a wide temperature range.

The capacitor has compact dimensions of 5.5mm in length, 3mm in width, and 3mm in height, making it suitable for space-saving designs.

It features a lead spacing of 5mm and a lead diameter of 0.5mm, which conforms to standard PCB layouts.

The maximum operating temperature is 125°C, while the minimum is -55°C, making it suitable for demanding environments.

Yes, this model is RoHS compliant, ensuring it meets high environmental standards for electronic manufacturing.

It is suitable for applications such as power supply bypassing, smoothing, snubber circuits, and noise suppression in automotive and industrial settings.

The country of origin for this capacitor is India.

It is packaged in tape, which is typical for components intended for automated assembly on PCBs.
