| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | DMP2165UW |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | DMP2165UW |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 2.5A |
| Maximum Drain Source Voltage Vds | 20V |
| Maximum Drain Source Resistance Rds | 180mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 700mW |
| Typical Gate Charge Qg @ Vgs | 3.5nC |
| Maximum Gate Source Voltage Vgs | 12V |
| Forward Voltage Vf | -1.1V |

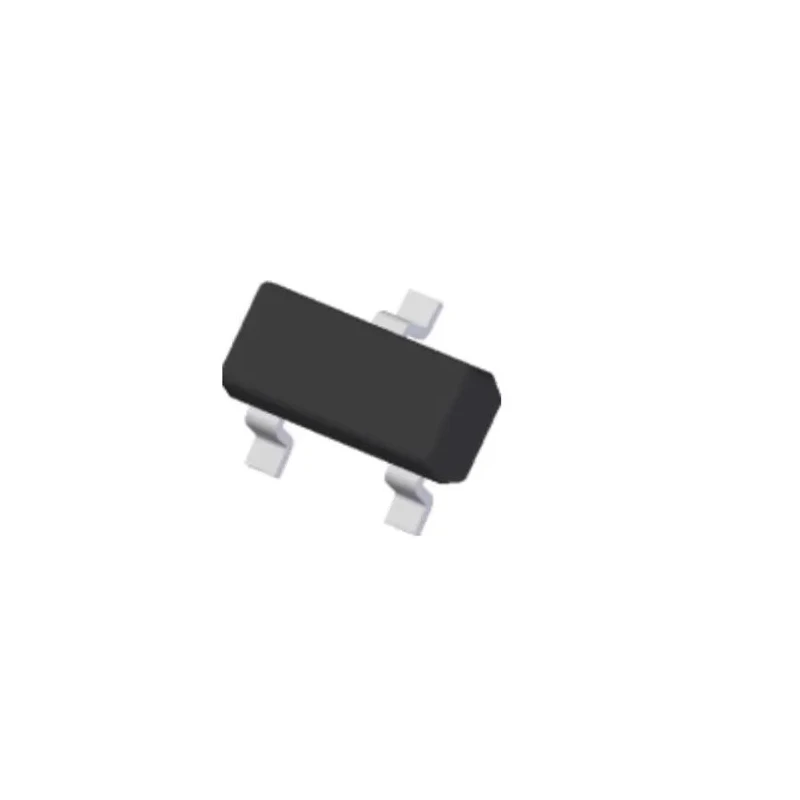

DiodesZetex DMP2165UW P-Channel MOSFET is a high-performance discrete semiconductor device with a maximum continuous drain current of 2.5 A and a maximum drain-source voltage of 20 V. It employs an enhancement mode channel for efficient switching and integrates a low on-resistance (180 mΩ) characteristic to minimize power losses during operation.
Packaged in a compact 3-pin SOT-323 surface mount package, this MOSFET suits applications requiring space-saving and high efficiency such as motor control, power management, and backlighting systems. It operates reliably within a broad temperature range of -55°C to 150°C, ensuring durability in demanding industrial and automotive environments. Compliance with AEC-Q101 automotive standards confirms suitability for automotive electronic systems.
The device features a typical gate charge of 3.5 nC at a gate-source voltage of 3.5 V, supporting fast switching speeds while maintaining low input capacitance. Maximum gate-source voltage is 12 V, and forward voltage is -1.1 V, which enhances conduction control and efficiency.
This MOSFET is a lead-free, halogen-free, and antimony-free 'green' component, aligning with modern environmental standards. It is manufactured in China and designed to provide superior switching performance with minimal leakage currents.
Low on-resistance for high efficiency power management. Fast switching speed due to low input capacitance. Compact SOT-323 package for space-efficient surface mounting. Wide operating temperature range from -55°C to 150°C.
Compliance with automotive standard AEC-Q101. Lead-free and environmentally friendly construction. Suitable for motor control, power management, and backlighting applications.
This high-quality component is ideal for industrial, automotive, and consumer electronic applications requiring reliable and efficient power control. Explore similar products in the MOSFET category at EnvMart for comprehensive semiconductor solutions.
