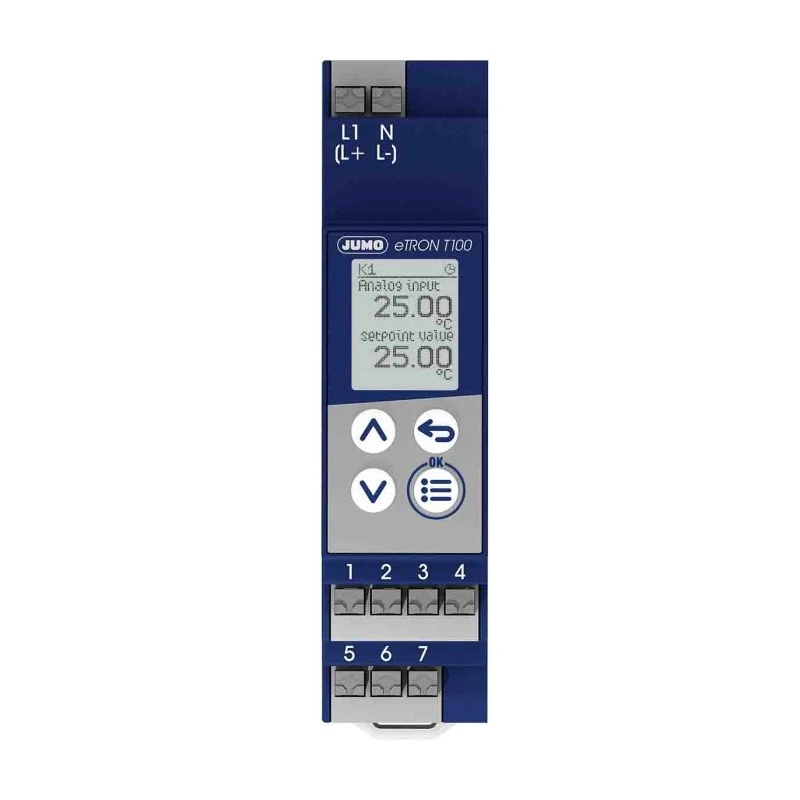

Jumo eTRON T100 DIN Rail On-Off Temperature Controller 1 Input 1 Output Relay 230V 701052/8-01-02-00/000

The Jumo eTRON T100 model (701052/8-01-02-00/000) is a high-performance DIN Rail On-Off Temperature Controller designed for industrial temperature regulation. It supports 1 input and 1 relay output and operates at 230V supply voltage, making it ideal for precise heating and cooling applications in manufacturing, process control, HVAC, and electrical systems.

This controller measures temperature by thermocouples, resistance thermometers, or through a current input signal of 0(4) to 20 mA. It can be configured as either a heating or cooling thermostat, with user-selectable switching behaviors, providing flexible control for various industrial setups.

The device sports a clear backlit LCD dot matrix display with 64 x 80 pixel resolution available in four languages: German, English, French, and Spanish. Users can operate the unit via four front panel keys or connect it to a PC using the USB interface for configuration and parameterization through the setup program. This program also enables customer-specific linearization and access to the data logger, useful for detailed performance analysis.

The controller includes important features such as a timer function for time-limited control, limit value monitoring via a photoMOS® relay option, and a digital input for floating contact connection. It also keeps track of service and operating hours for effective maintenance scheduling.

Constructed for DIN rail mounting, its compact size (90mm width, 62mm panel depth, 22.5mm length) and an IP20 protection rating allow for robust integration into control panels. Compliance with cULus and UL standards attests to its safety and quality.

Its 10A changeover relay output provides robust switching capability, suitable for controlling a wide range of process equipment. This device fits well in industrial machines, electrical automation, HVAC environments, and industrial laboratories requiring reliable temperature control.

Suitable for heating or cooling control with configurable switching behavior. Supports temperature measurement via thermocouple, resistance thermometer, or 0(4) - 20 mA current input. Features a backlit LCD dot matrix display with 64 x 80 pixels supporting four languages.

Includes timer function for controlled operation periods. Equipped with 10A changeover relay and additional digital output options. Operated via front panel keys and also configurable via USB setup program. Includes data logger and service/operating hours counters for maintenance monitoring.

Compact size optimized for DIN rail mounting in control panels. IP20 rated with cULus and UL approvals ensuring industrial safety standards.

The Jumo eTRON T100 temperature controller is manufactured in Germany and is an ideal choice for industrial temperature regulation and process control applications. For more details and related automation products, explore the Temperature Controllers category on EnvMart.
