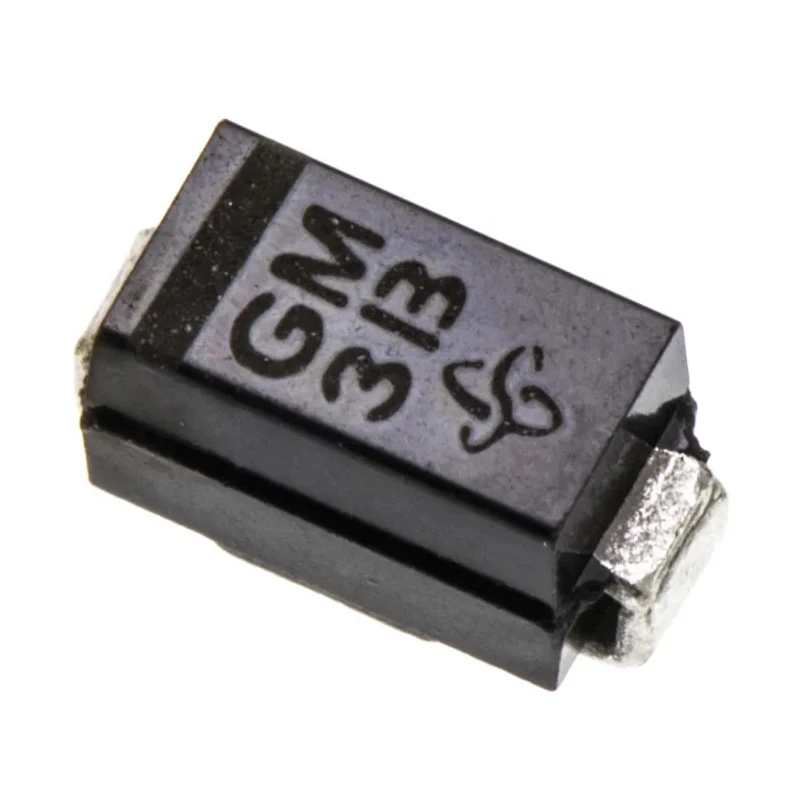

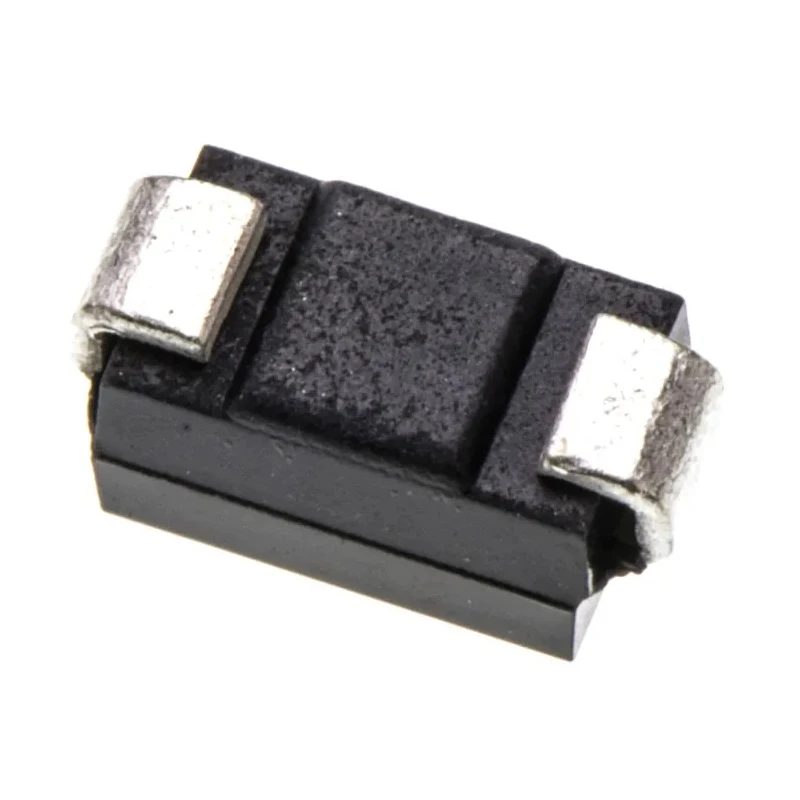

Vishay Switching Diode 1 kV 1 A 2-Pin DO-214BA GF1M-E3/67A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.74mm |
| Length | 4.75mm |
| Model | GF1M-E3/67A |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | GF1M |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214BA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 2μs |
| HY Electronic Corp 1 kV 1 A Diode Schottky 2-Pin DO-214AC S1MBrand | HY Electronic Corp |
| Vishay 1000V 1A, Silicon Junction Diode, 2-Pin DO-214BA GF1MBrand | Vishay |
Key Features
- This surface mount diode supports a peak reverse repetitive voltage of 1kV.
- It features a maximum continuous forward current of 1 ampere.
- The diode has a peak reverse current of only 5 microamperes, ensuring low leakage.
- It withstands high operating temperatures up to 175°C.
- The package dimensions are 4.75 mm length, 2.9 mm width, and 2.74 mm height.
- This switching rectifier diode has a forward voltage drop of 1.2 volts.
- The peak non-repetitive forward surge current capacity is 30 amperes.
- The recovery time is fast with 2 microseconds peak reverse recovery time.
Product Description
Vishay GF1M-E3/67A is a surface-mount switching diode with a maximum continuous forward current rating of 1 ampere and a peak reverse repetitive voltage of 1 kV. Housed in a 2-pin DO-214BA package, it measures 4.75 mm length, 2.9 mm width, and 2.74 mm height, making it suitable for compact electronic designs.
The diode exhibits a low peak reverse current of 5 microamperes, enabling efficient circuit performance with minimal leakage. It can operate reliably in harsh environments with a minimum operating temperature of -65°C and a maximum operating temperature of 175°C.
With a forward voltage of 1.2 volts and a swift peak reverse recovery time of 2 microseconds, this diode is ideal for switching applications requiring efficient and rapid rectification.
The device supports a high surge current capability of 30 amperes peak non-repetitive forward surge current, allowing it to endure brief high current conditions without damage. Compliant with RoHS and qualified under the AEC-Q101 automotive standard, the diode is suitable for automotive, industrial, and general electronic applications.
Surface mount 2-pin DO-214BA package. Maximum continuous forward current 1 A. Peak reverse repetitive voltage 1 kV. Low peak reverse current 5 µA. Forward voltage drop of 1.2 V. Peak reverse recovery time 2 µs. High surge current tolerance 30 A.
Operating temperature from -65°C to 175°C. RoHS compliant and automotive standard AEC-Q101. Ideal for power switching and rectification in electronic circuits.
This Vishay switching diode is engineered for reliability and performance in industrial, automotive, and general semiconductor use cases. Browse the Semiconductor category on EnvMart for related Schottky Diodes & Rectifiers from leading manufacturers.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this diode is 1 ampere.
It supports a peak reverse repetitive voltage of 1 kV.
The package dimensions are 4.75 mm in length, 2.9 mm in width, and 2.74 mm in height.
The peak reverse current is 5 microamperes.
The maximum operating temperature is 175°C.
The forward voltage drop is 1.2 volts.
It has a peak non-repetitive forward surge current capacity of 30 amperes.
The peak reverse recovery time is 2 microseconds.
It can operate in a temperature range from -65°C to 175°C.
Yes, it is RoHS compliant and qualified under the AEC-Q101 automotive standard.
This model uses surface mounting.
It is suitable for automotive, industrial, and general electronic applications.
