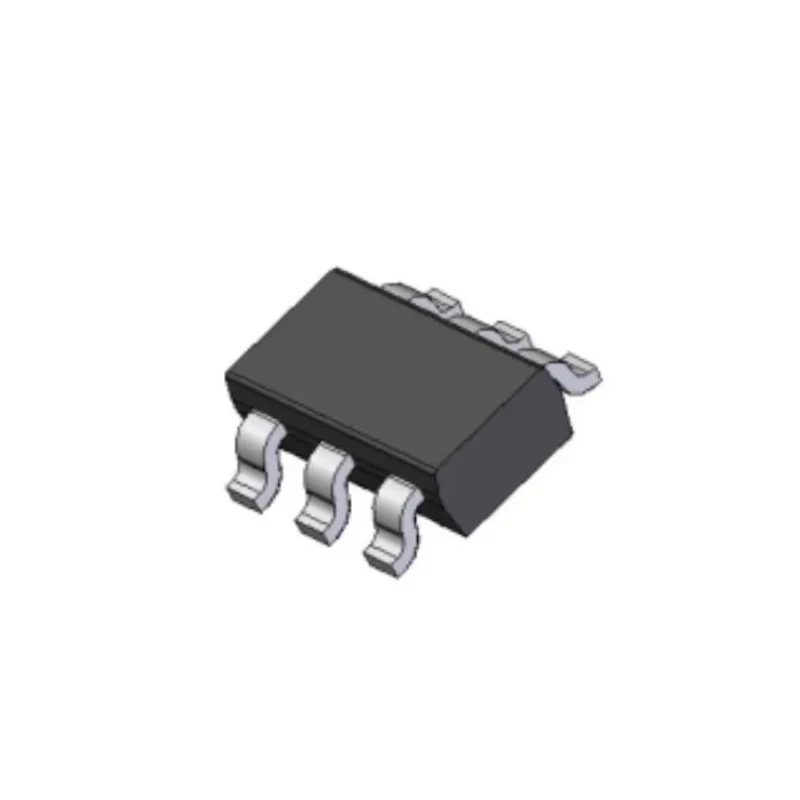

DiodesZetex P-Channel MOSFET 20 V 5.5 A 6-Pin TSOT, Enhancement Mode DMP2040UVT-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 900μm |
| Length | 3mm |
| Model | DMP2040UVT-7 |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | DMP2040UVT |
| Maximum Operating Temperature | 150°C |
| Package Type | TSOT |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 5.5A |
| Maximum Drain Source Voltage Vds | 20V |
| Maximum Drain Source Resistance Rds | 52mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 1.5W |
| Typical Gate Charge Qg @ Vgs | 19nC |
| Maximum Gate Source Voltage Vgs | 12V |
| Forward Voltage Vf | -1.2V |
Key Features
- This MOSFET operates in enhancement mode for efficient switching.
- Maximum drain-source resistance is 52 milliohms ensuring low on-state losses.
- Maximum power dissipation rating is 1.5 W for reliable thermal handling.
- Device supports gate-source voltage up to 12 V with fast switching speed.
- Temperature range from -55°C to 150°C suits demanding industrial applications.
- AEC-Q101 automotive standard compliance guarantees high reliability.
- The device has low input capacitance and is halogen and antimony free.
- Ideal for DC-DC converters, motor control, and power management applications.
Product Description
DiodesZetex DMP2040UVT-7 is a P-Channel MOSFET designed for high efficiency power management with a maximum continuous drain current of 5.5 A and a maximum drain-source voltage of 20 V. Encapsulated in a 6-pin TSOT package, this enhancement mode MOSFET offers a maximum drain-source resistance of 52 milliohms, enabling minimal on-state power loss and superior switching performance.
The device supports a maximum gate-source voltage of 12 V and has a forward voltage of -1.2 V. It dissipates up to 1.5 W and operates reliably in a wide temperature range from -55°C to 150°C. Its low input capacitance facilitates fast switching, making it ideal for use in DC-DC converters, motor control circuits, and various power management functions.
Manufactured to AEC-Q101 automotive standards, this MOSFET is a green device, being completely lead-free and free from halogen and antimony, aligning with environmental safety regulations.
5.5 A maximum continuous drain current enables high current handling. 20 V maximum drain-source voltage suits low voltage applications. Enhancement mode operation for improved switching control. Low on-resistance of 52 mΩ minimizes power loss.
Wide operating temperature range from -55°C to 150°C. AEC-Q101 certified for automotive quality and reliability. Halogen and antimony free for environmental compliance. Compact 6-pin TSOT package for surface mounting on PCBs.
This product is suitable for industrial electronics, automotive applications, and power management systems. It is a reliable choice for engineers requiring efficient MOSFET performance with automotive-grade quality standards.
Explore more semiconductor devices and power management components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 5.5 A.
It can handle a maximum drain-source voltage of 20 V.
The maximum power dissipation rating is 1.5 W.
The operating temperature range is from -55°C to 150°C.
This model is encapsulated in a 6-pin TSOT package.
The maximum gate-source voltage supported is 12 V.
The maximum drain-source resistance is 52 milliohms.
It complies with the AEC-Q101 automotive standard.
The typical gate charge is 19 nC at Vgs.
This model has a P-channel type.
It is suitable for applications such as DC-DC converters, motor control, and power management.
The forward voltage is -1.2 V.
