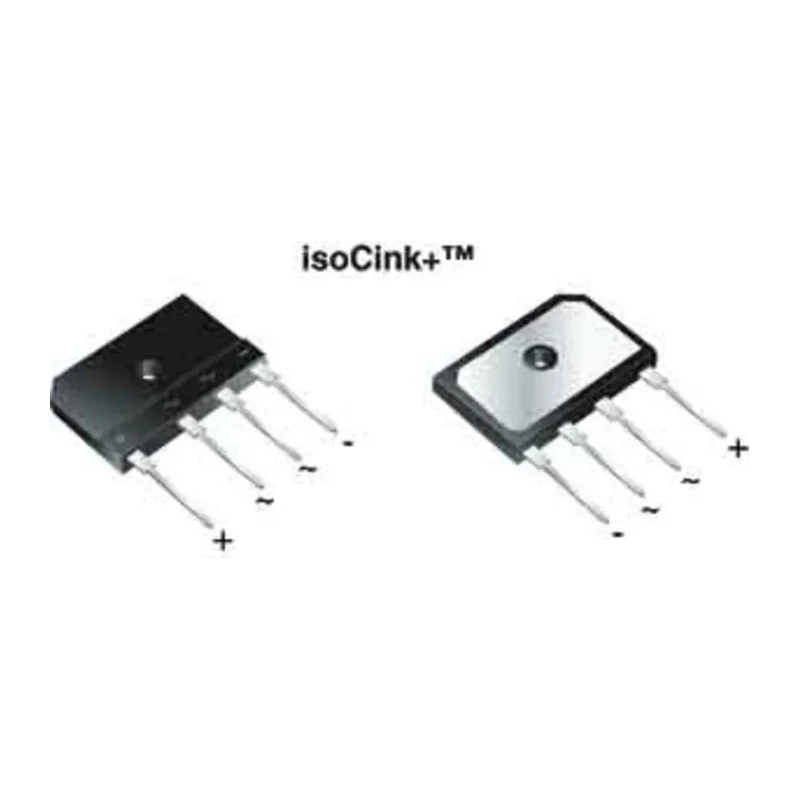

Vishay Bridge Rectifier, 1000 V Peak Reverse Voltage, 450 A Forward Surge Current, 4-Pin Single Package PB5010-E3/45

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier, 1000 V Peak Reverse Voltage, 450 A Forward Surge Current, 4-Pin Single Package PB5010-E3/45

Name: Vishay Bridge Rectifier, 1000 V Peak Reverse Voltage, 450 A Forward Surge Current, 4-Pin Single Package PB5010-E3/45
Brand: Vishay
SKU: 154937
Price: 3.68 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	20.3mm
Length	30.3mm
Model	PB5010-E3/45
Width	5.1mm
Mount Type	Through Hole
Series	PB50
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	PB
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	450A
Forward Current If	45A
Peak Forward Voltage Vf	1.1V

Key Features

Features a 4-pin single configuration for through-hole mounting.
Supports a maximum forward current of 45 A for high current applications.
Operates safely within temperature range from -55°C to 150°C.
Designed with superior thermal conductivity and enhanced high-current density PB package.
Ideal for switching power supplies, home appliances, and white goods.
Compact dimensions of 30.3 mm length, 20.3 mm height, and 5.1 mm width for PCB integration.
Peak forward voltage of 1.1 V ensures efficient power handling.
Peak reverse current is low at 500 μA, supporting durability and reliability.

Product Description

Vishay PB5010-E3/45 Bridge Rectifier is a high-performance semiconductor device designed for efficient AC/DC bridge full wave rectification in various industrial and consumer electronic applications. It features a single-phase 4-pin single configuration housed in a PB package, optimized for through-hole PCB mounting. The device is rated for a peak reverse repetitive voltage of 1000 V, making it suitable for high voltage environments.

It supports a continuous forward current of 45 A and a peak non-repetitive forward surge current of 450 A, enabling robust operation under transient loads. The maximum operating temperature of 150°C ensures reliable thermal performance in demanding conditions, while the minimum operating temperature of -55°C supports cold environment applications.

Compact dimensions (30.3 mm length, 20.3 mm height, 5.1 mm width) make it convenient for integration in power supply designs and industrial electronics. The low peak forward voltage (1.1 V) and minimal peak reverse current (500 μA) contribute to efficient operation and energy conservation.

This bridge rectifier is ideal for use in switching power supplies, home appliances, and white goods, providing efficient power conversion and durability. Its superior thermal conductivity and enhanced high-current density design improve performance and reliability.

4-pin single configuration for through-hole mounting. Peak reverse repetitive voltage of 1000 V. Continuous forward current rating of 45 A. Peak non-repetitive forward surge current of 450 A. Operating temperature range of -55°C to 150°C.

Compact footprint with dimensions 30.3 mm x 20.3 mm x 5.1 mm. Low peak forward voltage of 1.1 V. Minimal peak reverse current of 500 μA.

For industrial, electronic manufacturing, HVAC, and laboratory use, this Vishay Bridge Rectifier provides dependable performance. Browse our extensive range of semiconductor components on EnvMart for precise and high-quality power management solutions.
