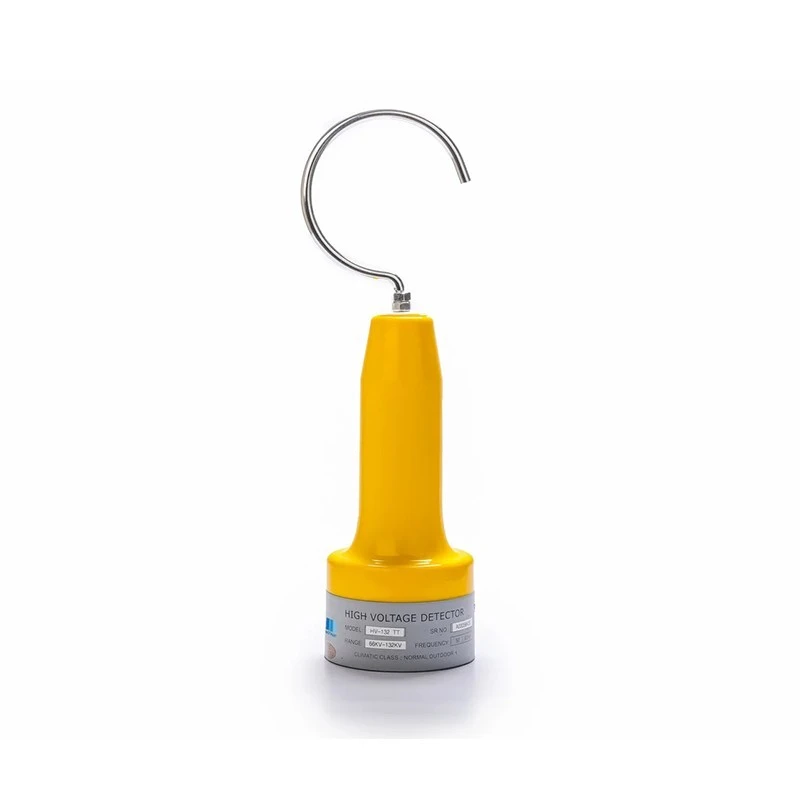

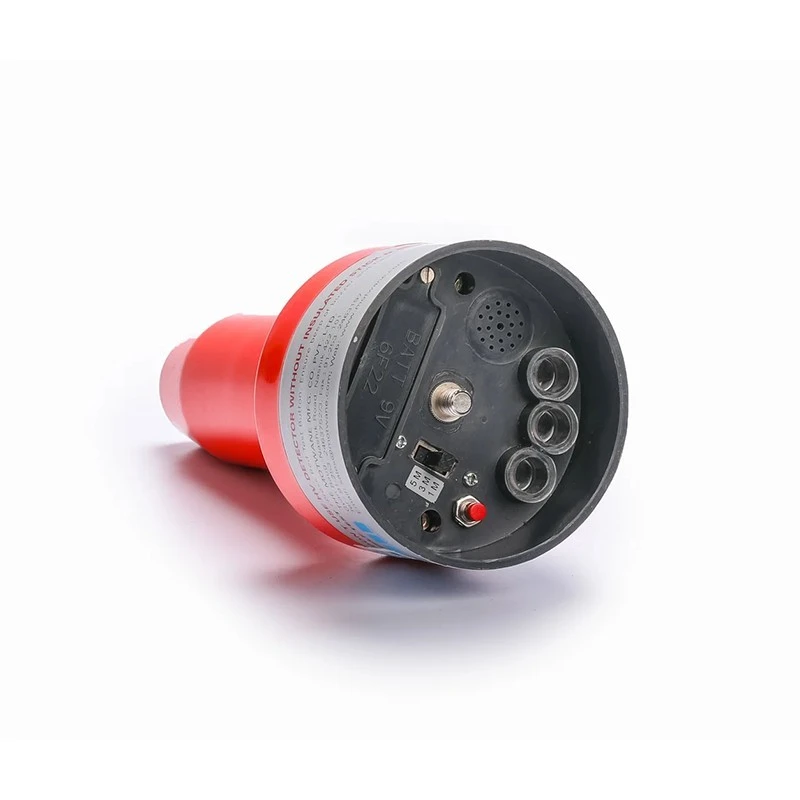

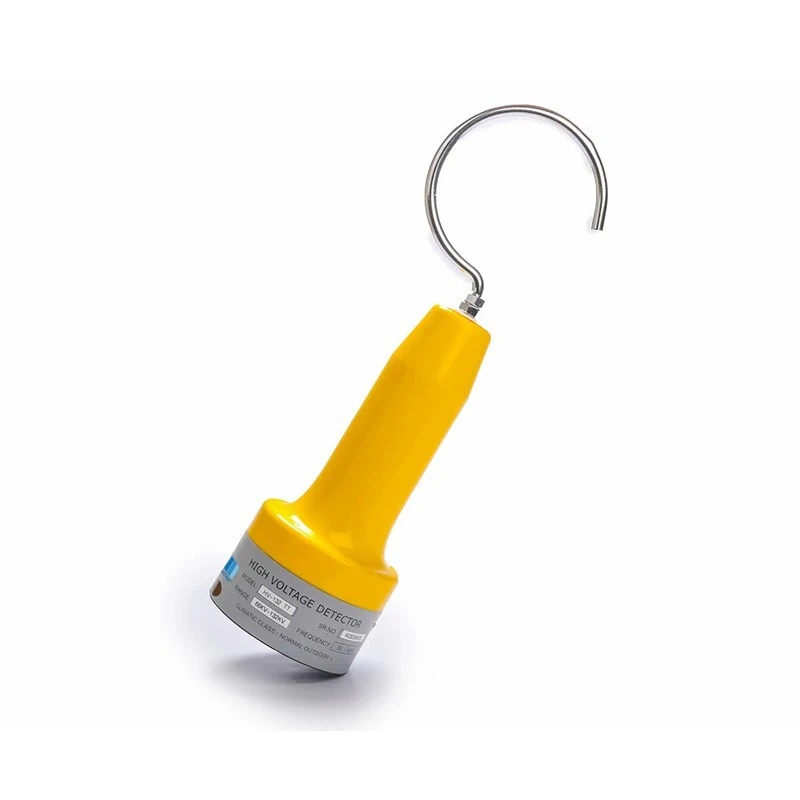

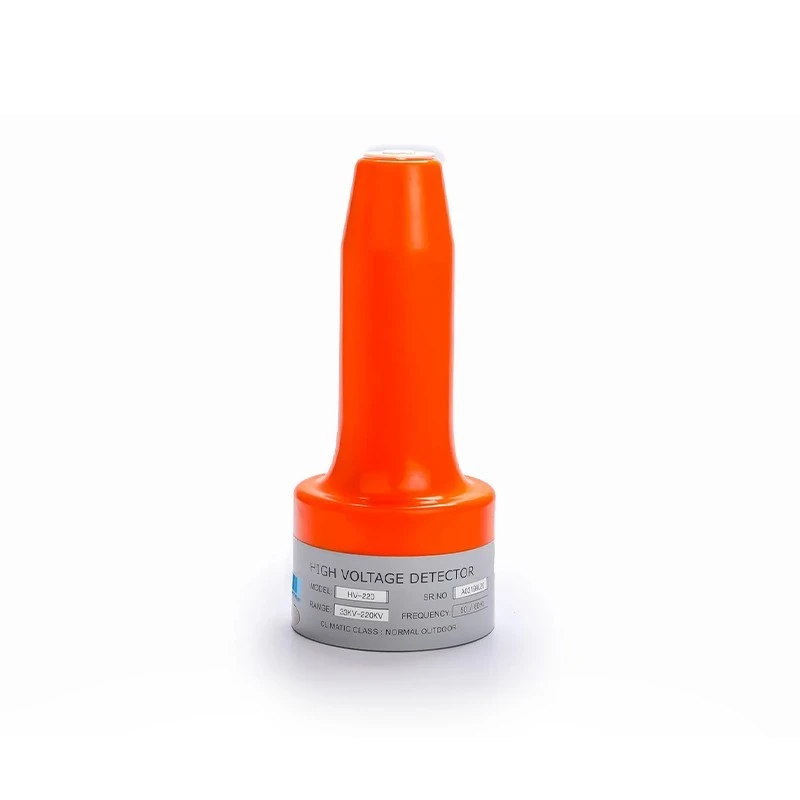

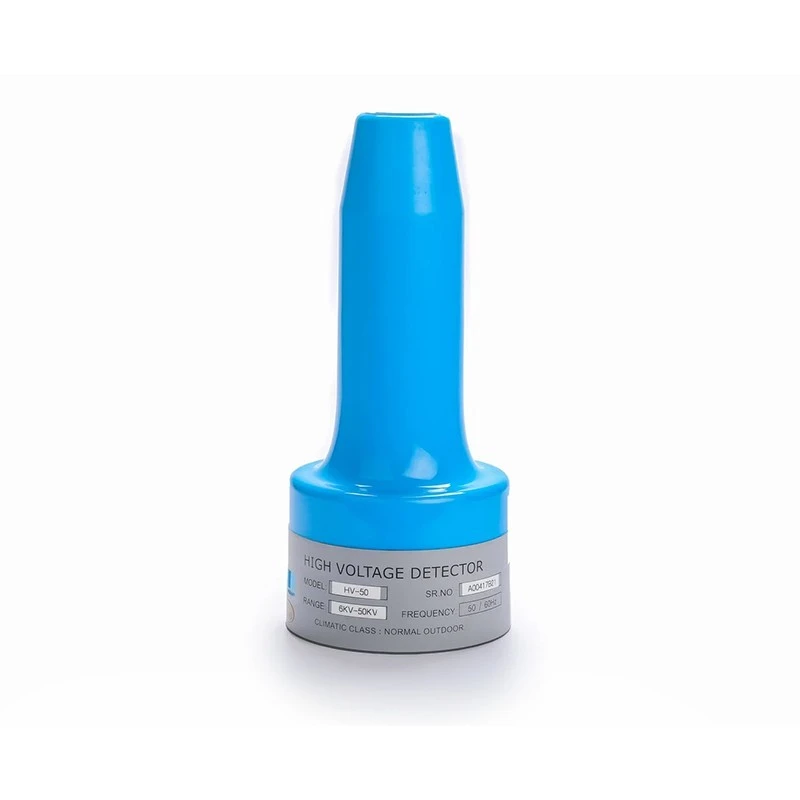

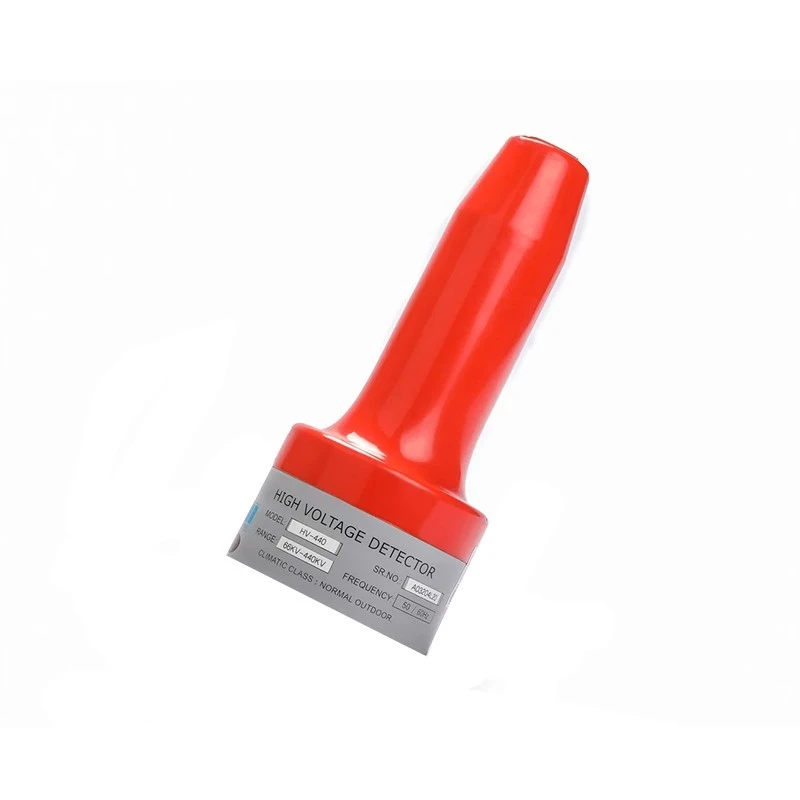

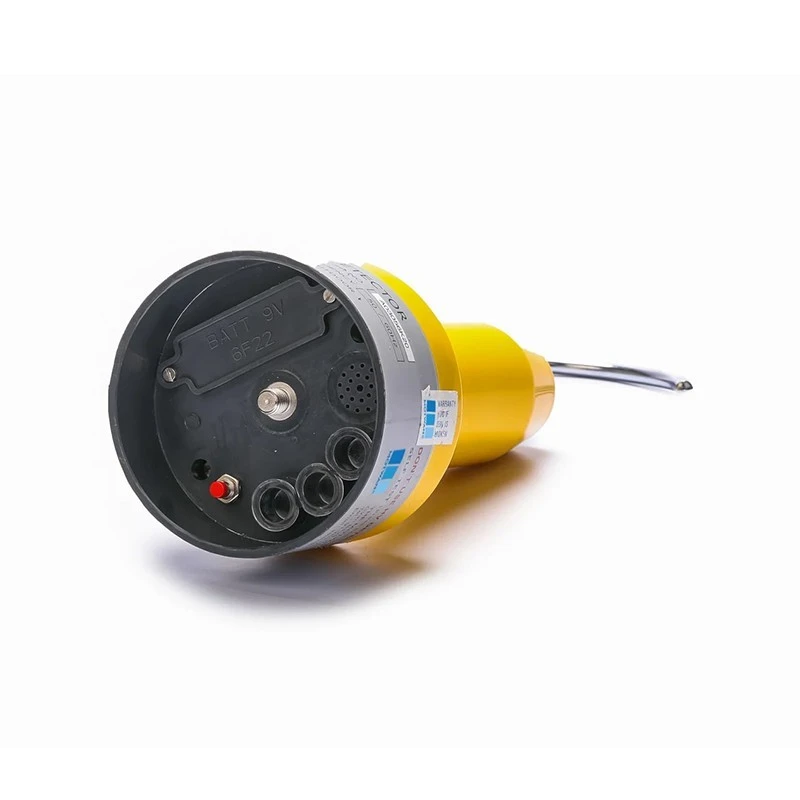

Motwane HV440 High Voltage Detectors
Specifications
| Country of Origin | India |
|---|---|
| Voltage Range | 66kV – 440kV |
| Diameter | 108mm Approx |
| Brand | Motwane |
| Type | Contact / Non-Contact |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | 10°C to 60°C |
| Battery | 9V / Battery type 6F22 or equivalent |
| Humidity | Less than 85% RH non-condensing |
| Length | 250mm Approx. |
| Model | HV440 |
| Weight | 510 gm Approx |
| Sensing Distance | 1mtr – 3mtr – 5mtr |
| Current consumption | 30mA maximum |
| Battery Low | 7.2 V Nominal |
| Visual Indication | High Bright Red LED’s flashing |
| Audible Indication | Buzzer beeps Loudly |
| Humidity (Storage) | Less than 85% RH non-condensing |
Key Features
- Colour code models for different voltage levels
- Non-contact/contact type detectors
- Indicates the presence of high voltage by audio and visual indications
- Bright high intensity red LED provides clear visual indications even in unfavorable daylight conditions. A buzzer produces a loud beep which is audible even in noisy backgrounds
- Packed as a complete kit with HV detector, telescopic fiberglass insulation stick in an ergonomically designed sturdy carry bag
- Self-test button to test battery and proper functioning of HV detector
- Powered by a single 9V battery type (6F22), it can be easily replaced on the field
- Type tested at CPRI/ERDA
- Available in FRP telescopic rod/FRP sectional hot stick rod in 1.2/3/5 meters
Product Description

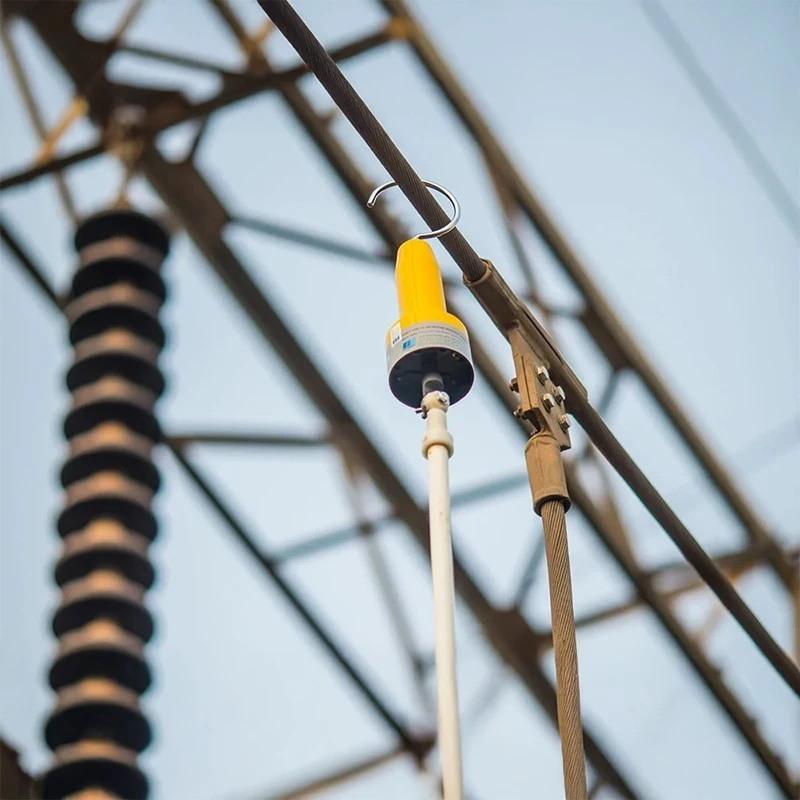

Motwane’s HV detector series provides an exceptional combination of user comfort and safety in one electrical safety device. The optimum LED layout, integrated audible signals, and innovative self-test features form the basic elements in all voltage detection equipment types. HV detector series are designed in contact type and non-contact type. The HV detectors are used to check the absence or the presence of voltage on medium and high voltage switchgear, transformers, or overhead lines. Electrical safety is imperative in all areas of power transmission and distribution at all voltage levels including MV, HV, and EHV up to 400kV (Suitable for 11 kV/33 kV/132 kV/220 kV/440 kV supply lines). It is available in FRP telescopic rod/FRP sectional hot stick. It is powered by a 9V battery. The HV detector starts annunciation by flashing a red LED and buzzer beeps indicating that the line is LIVE and not safe to earth before carrying out any operations. HV detector series is easy to use, quicker, and completely safe. It is reliable in detecting high voltage on distribution and transmission voltage power lines which is a critical job performed by electric utility linemen.
Application
Useful for utility, industrial, railway, and for mine safety applications like:
- Contact/non-contact detection of live voltages
- Checking and detecting live high voltage cables
- Tracing live wires
- Detecting residual or induced voltage
Standard Accessories
- FRP telescopic rod 1.2/3/5 meters OR FRP sectional hot stick Rod 1.2/3/5 meters
- Carry case
Available on EnvMart, these Voltage Detectors are designed for quick and reliable voltage presence detection in electrical systems. Motwane Voltage Detectors offer high precision and safety, making them essential for electricians, maintenance professionals, and industrial applications.
