| Country of Origin | India |
|---|---|
| Diameter | 1.59mm |
| Brand | STMicroelectronics |
| Height | 1.62mm |
| Length | 3.4mm |
| Model | TMMBAT41FILM |
| Width | 1.62mm |
| Mount Type | Surface |
| Series | TMMBAT41 |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniMELF |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 100mA |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 750mA |
| Maximum Forward Voltage Vf | 1V |

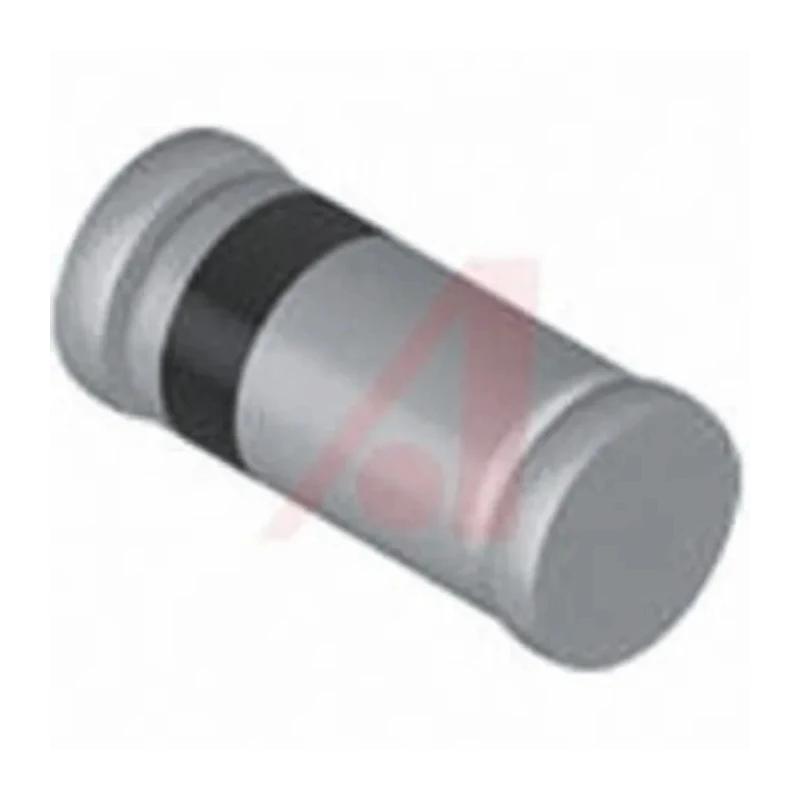

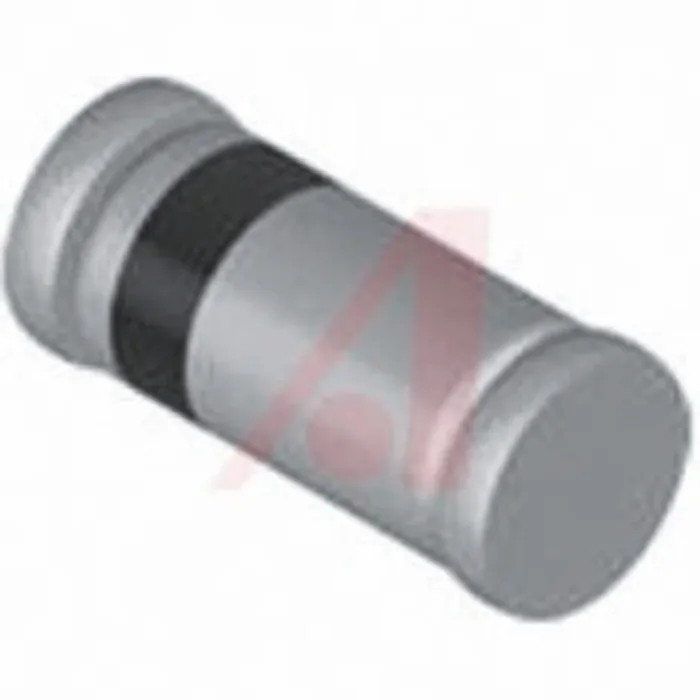

STMicroelectronics TMMBAT41FILM is a highly efficient Schottky diode designed for discrete semiconductor applications requiring low forward voltage and fast switching in surface mount technology.
This diode comes in a 2-pin MiniMELF package, providing a compact and reliable solution with a maximum continuous forward current of 100 mA and a peak repetitive reverse voltage of 100 V. It exhibits a low forward voltage drop of 1 V, improving circuit efficiency and thermal performance.
Operable over a wide temperature range from -65°C to 125°C, the diode ensures dependable performance in demanding industrial, electronic, and power management applications. It has a peak non-repetitive forward surge current capability of 750 mA, allowing it to withstand transient loads effectively.
The compact dimensions - 3.4 mm in length, 1.62 mm width and height, and 1.59 mm diameter - make it well-suited for high-density PCB designs in modern electronics manufacturing environments.
The diode’s very low leakage current of 100 nA ensures minimal power loss and improves overall device reliability. Its single diode Schottky barrier design offers fast switching capabilities and high power efficiency, vital for power rectification and voltage clamping in electronic circuits.
Small 2-pin MiniMELF package ideal for surface mounting. Maximum continuous forward current of 100 mA. Peak reverse repetitive voltage at 100 V. Low forward voltage drop of 1 V. Wide operating temperature range: -65°C to 125°C.
Peak surge current up to 750 mA. Compact dimensions suitable for dense PCB layouts. Single diode configuration for rectification. Extremely low peak reverse leakage current (100 nA). This diode is ideal for use in industrial electronics, power supply circuits, protection circuits, and switching applications requiring fast recovery and low conduction losses.
