IXYS Three Phase Bridge Rectifier Module 1600 V 1.95 kA Forward Current 175 A Panel Mount VUO160-16NO7

Free Delivery in India | Lowest Global Shipping Charges

IXYS Three Phase Bridge Rectifier Module 1600 V 1.95 kA Forward Current 175 A Panel Mount VUO160-16NO7

Name: IXYS Three Phase Bridge Rectifier Module 1600 V 1.95 kA Forward Current 175 A Panel Mount VUO160-16NO7
Brand: IXYS
SKU: 148319
Price: 94.49 USD
Availability: InStock



Category Bridge Rectifier Module Brand IXYS Condition New

Specifications

Country of Origin	Germany
Brand	IXYS
Height	30mm
Length	94mm
Model	VUO160-16NO7
Width	54mm
Mount Type	Panel
Series	VUO160
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	PWS E 1
Minimum Operating Temperature	-40°C
Number of Phases	3
Pin Count	5
Peak Reverse Repetitive Voltage Vrrm	1600V
Peak Reverse Current Ir	300μA
Peak Non-Repetitive Forward Surge Current Ifsm	1.95kA
Forward Current If	175A
Peak Forward Voltage Vf	1.65V
IXYS Bridge Rectifier Module, 1200 V 1.95 kA, 5-Pin SingleBrand	IXYS

Key Features

Capable of handling a peak reverse repetitive voltage of 1600 volts.
Supports a continuous forward current rating of 175 amperes.
Designed with a peak non-repetitive forward surge current of 1.95 kiloamperes.
Mounted via panel type with screw terminals for secure attachment.
Operates effectively between -40°C and a maximum of 150°C.
Features a low peak forward voltage drop of 1.65 volts for improved efficiency.
Constructed in a PWS E 1 package with 5 pins.
Compact dimensions measuring 94 mm length, 54 mm width, and 30 mm height.

Product Description

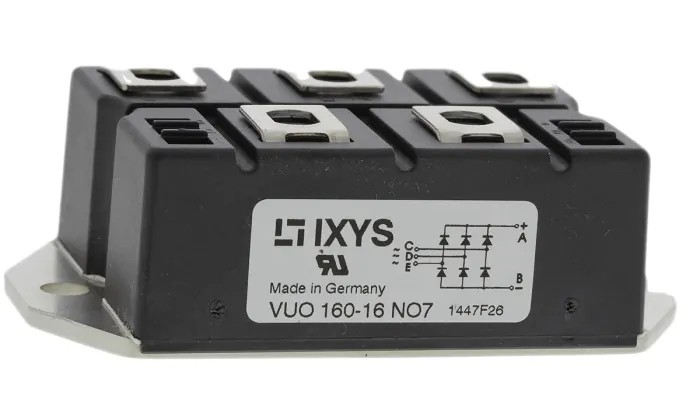

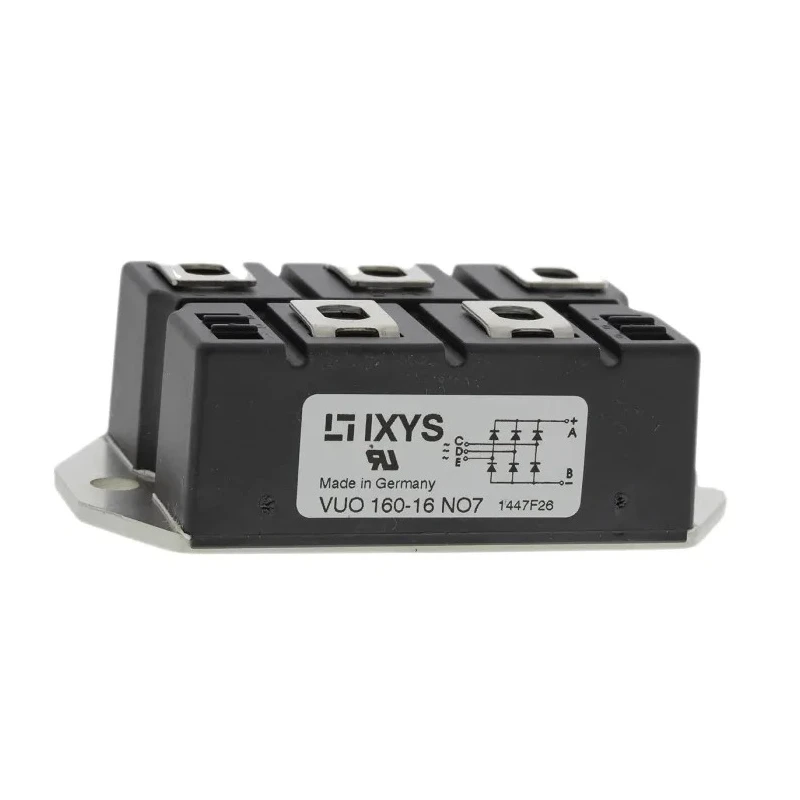

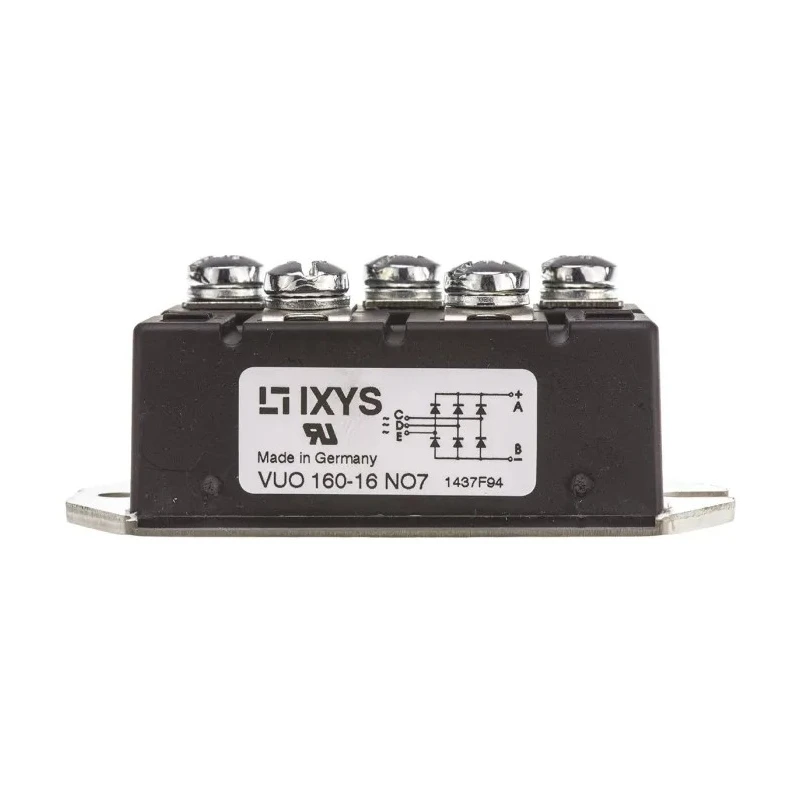

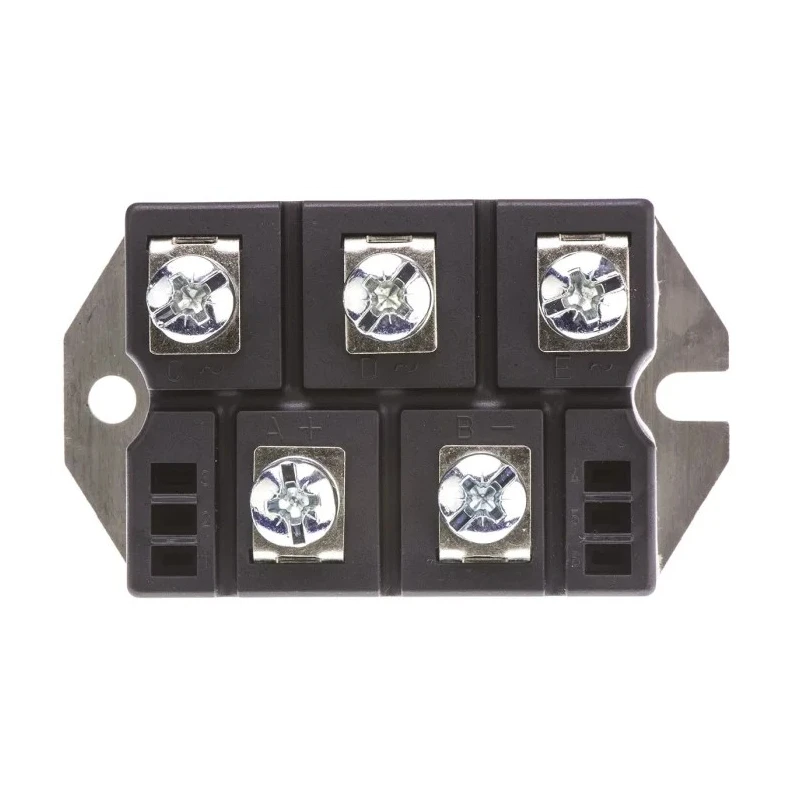

IXYS VUO160-16NO7 is a three-phase bridge rectifier module supplying a peak reverse repetitive voltage of 1600 volts and a peak surge current capacity of 1.95 kA. It features a panel mount type with 5-pin single configuration, designed to convert alternating current (AC) input into direct current (DC) output efficiently.

This module supports a continuous forward current of 175 amps and operates reliably within a temperature range from -40°C to 150°C. The low forward voltage drop of 1.65 volts enhances overall energy efficiency. Its compact construction in a PWS E 1 package with exact dimensions of 94 mm length, 54 mm width, and 30 mm height allows easy integration into power and electronic equipment.

Designed and manufactured in Germany, the VUO160-16NO7 ensures high reliability and quality. It includes screw terminals for secure and durable installation within industrial, manufacturing, laboratory, and power electronics systems.

Capable of handling high reverse and surge voltages for demanding electrical environments. Wide operating temperature range supporting robust industrial use. Panel mount configuration allows flexible installation with ease.

Compact form factor suitable for various power module assemblies.

This Bridge Rectifier Module is ideal for applications in power supply units, motor drives, energy conversion systems, and semiconductor-based control equipment. The robust specifications make it suitable for commercial, industrial, and heavy-duty electronic uses.
