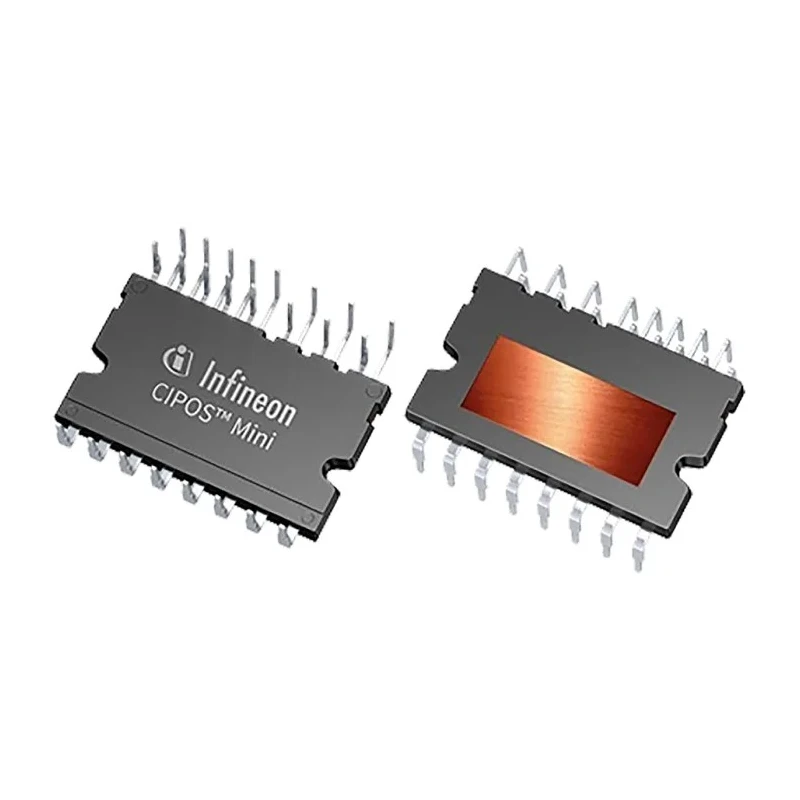

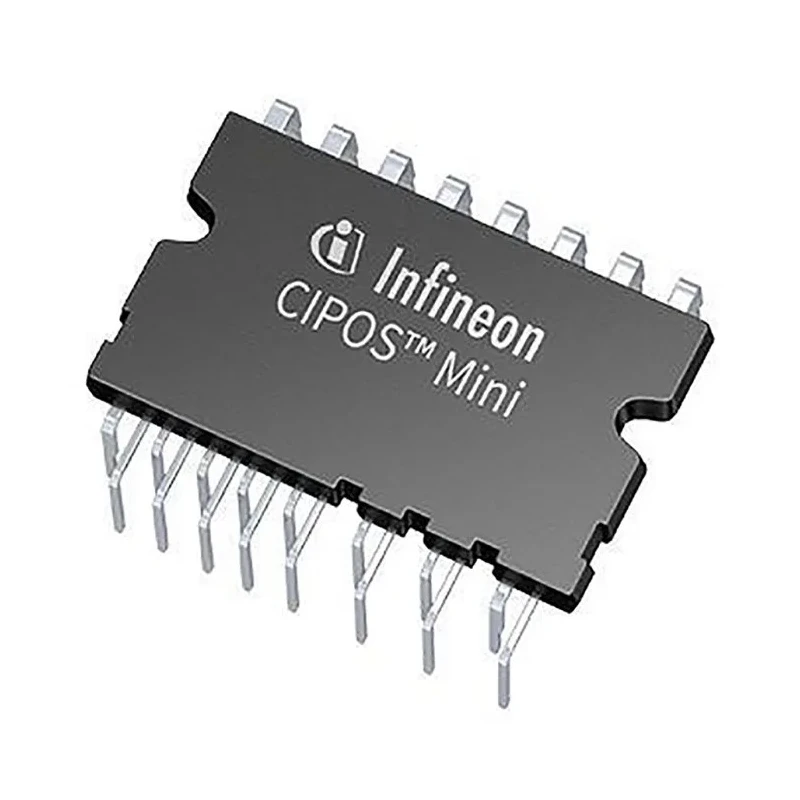

Infineon AC Motor Permanent Magnet Motor Driver IC 2.05 V 30 A 24-Pin DIP IKCM15L60GAXKMA1

Infineon IKCM15L60GAXKMA1 is a high-performance AC Motor Permanent Magnet Motor Driver IC designed to provide efficient and reliable motor control solutions. This intelligent power module (IPM) from the CIPOS family integrates compact power modules optimized for three-phase motor driving used in diverse applications such as home appliances, fans, pumps, and industrial automation systems.

The module offers a maximum IGBT collector current of 30 A and operates with a maximum collector emitter voltage of 2.05 V. It supports output currents up to 15 A, with a supply voltage that can reach up to 450 V, enabling robust motor control under demanding electrical conditions. Thermal performance is ensured across a wide operating temperature range from -40°C to 150°C, with a typical switching frequency of 20 kHz supporting efficient power switching.

This product features a 3-phase configuration and comes in a 24-pin DIP through-hole package, facilitating easy mounting and integration in motor driver circuits. With a low supply current of 900 μA, it maintains energy efficiency while delivering reliable performance.

Infineon's IKCM15L60GAXKMA1 complies with the AEC-Q101 automotive standard, making it suitable for automotive and other critical applications requiring stringent reliability. The unit measures 36 mm in length, 21 mm in width, and 3.1 mm in height, offering a compact footprint for embedded system designs.

This motor driver IC is ideal for industrial, manufacturing, HVAC, and commercial applications where precise motor control is essential. Its intelligent power design improves motor system performance and energy efficiency while enhancing system ruggedness and reliability.

Designed for driving 3-phase AC motors with permanent magnet configuration. Offered in a 24-pin DIP package for through-hole mounting. Supports output current up to 15 A with a maximum supply voltage of 450 V. Operates within a temperature range of -40°C to 150°C with a typical switching frequency of 20 kHz.

Features low supply current of 900 μA and complies with automotive standard AEC-Q101. Compact dimensions of 36 mm length, 21 mm width, and 3.1 mm height. Suitable for applications in home appliances, fans, pumps, and industrial motor control systems.

Manufactured in Korea, Republic Of, ensuring high quality and reliability. Explore the extensive range of Motor Driver ICs at EnvMart for efficient motor control solutions tailored to your industrial and commercial needs.
