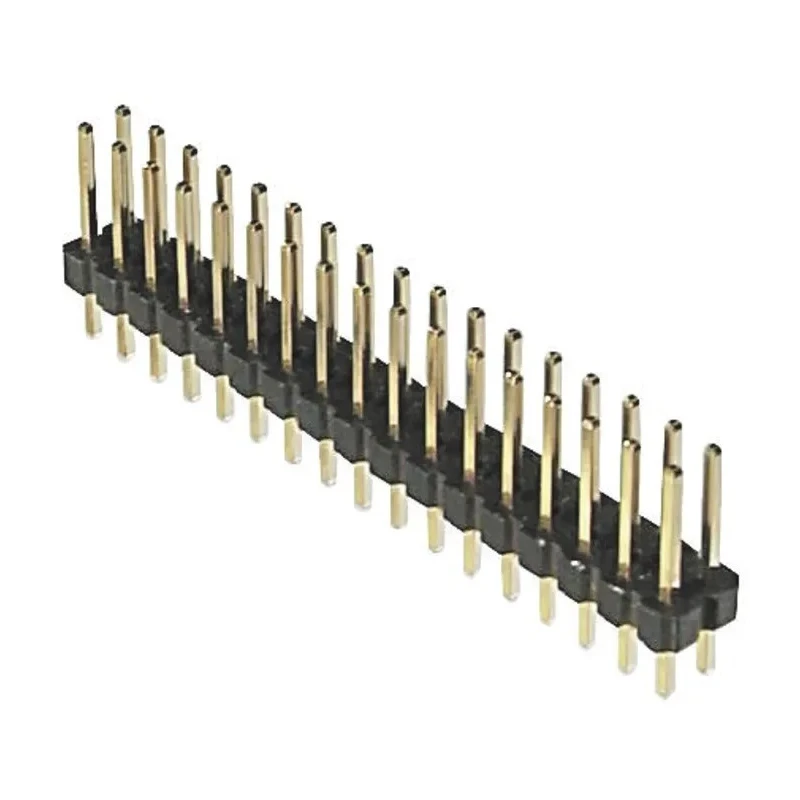

ASSMANN WSW AWL254 Series Straight Through Hole Pin Header 72 Contacts 2.54 mm Pitch 2 Row Unshrouded AWL254
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 1.5A |
| Model | AWL254 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AWL254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 72 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 7mm |
Key Features
- Features 72 male contacts with 2.54 mm pitch for reliable electrical connections.
- Manufactured with polybutylene terephthalate housing material for durability.
- Gold-plated brass contacts ensure corrosion resistance and optimal conductivity.
- Designed with 2 rows and a row pitch of 2.54 mm to fit standard PCB layouts.
- Supports through hole mounting type with solder termination for easy assembly.
- Operates safely up to 250 V and current up to 1.5 A for versatile use.
- Temperature range from -40°C to 105°C making it suitable for varied environments.
- Tail pin length is 3 mm with mating pin length of 7 mm for secure connections.
Product Description
ASSMANN WSW AWL254 Series Straight Through Hole Pin Header model AWL254 provides a high-quality, reliable board-to-board connector solution featuring 72 contacts arranged in 2 rows with a 2.54 mm pitch.
The pin header is constructed from durable polybutylene terephthalate housing, housing gold-plated brass contacts that enhance conductivity and resist corrosion over extended use. Its through-hole mount type and solder termination enable secure PCB assembly ideal for electronics manufacturing in industrial, commercial, and laboratory applications.
Designed to operate at voltages up to 250 V and currents up to 1.5 A within a wide temperature range of -40°C to 105°C, this pin header is suitable for demanding environments requiring stable performance.
The unshrouded, straight orientation facilitates easy mating with counterparts without obstructions, while tail and mating pin lengths of 3 mm and 7 mm respectively ensure proper connection depth and mechanical stability.
72 male contacts on 2 rows with 2.54 mm pitch. Housing made from polybutylene terephthalate for strength and reliability. Gold-plated brass contacts for corrosion resistance and excellent conductivity. Through hole solder termination ensures firm mounting on PCB.
Wide operating temperature from -40°C to 105°C. Voltage rating up to 250 V and current rating 1.5 A. Unshrouded straight through hole design for easy accessibility. Tail pin length 3 mm and mating pin length 7 mm for optimal mating.
This pin header is widely used in electronics manufacturing for PCB interconnections in industrial, power, and electronic component assemblies. Choose the ASSMANN WSW AWL254 for a robust, reliable pin header solution that supports efficient and durable board-to-board connections.
Explore more products in the PCB Headers category at EnvMart for your electronic components needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage rating of up to 250 V and a current rating of 1.5 A.
It features a pitch of 2.54 mm and includes 72 male contacts arranged in 2 rows.
The housing is made from polybutylene terephthalate, which provides strength and reliability.
This pin header uses solder termination for secure mounting on PCBs.
The tail pin length is 3 mm, while the mating pin length is 7 mm.
It operates within a temperature range of -40°C to 105°C, making it suitable for various environments.
This model is unshrouded, allowing for easy mating with counterparts without obstructions.
It supports through hole mounting type, which is ideal for PCB assembly.
The contacts are made of brass and are gold-plated to enhance conductivity and resist corrosion.
It is designed as a board-to-board connector system.
This pin header is widely used in electronics manufacturing for PCB interconnections in industrial, power, and electronic component assemblies.
The country of origin for this pin header is China.
