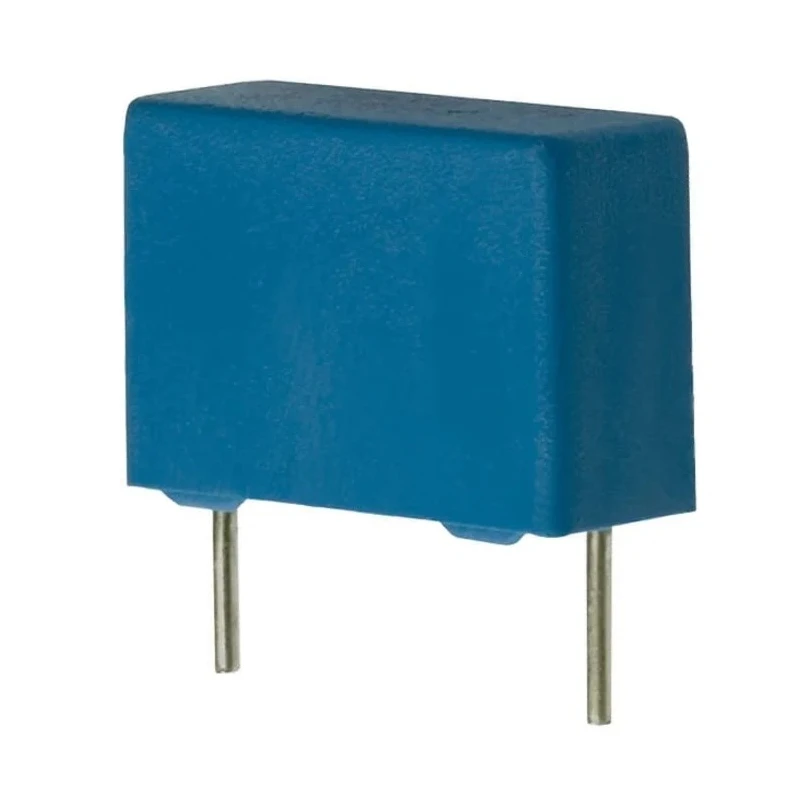

TDK Polypropylene Film Capacitor 100 nF 305V AC/DC Through Hole Lead Pitch 15mm B32922C3104K189

Free Delivery in India | Lowest Global Shipping Charges

TDK Polypropylene Film Capacitor 100 nF 305V AC/DC Through Hole Lead Pitch 15mm B32922C3104K189



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	Spain
Brand	TDK
Height	10.5mm
Length	18mm
Model	B32922C3104K189
Width	5mm
Mount Type	Through Hole
Series	B32922C
Maximum Operating Temperature	110°C
Capacitance	100nF
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	X2

Key Features

This film capacitor utilizes a polypropylene dielectric for high performance and reliability.
Rated for 305 V AC and 305 V DC voltage operation ensuring versatility in applications.
Designed with a 15 mm lead pitch and 0.8 mm lead diameter facilitating easy through-hole PCB mounting.
Compact dimensions of 18 mm length, 5 mm width, and 10.5 mm height enable space-saving integration.
Maximum operating temperature of 110°C suited for demanding environments.
Suppression Class X2 makes it suitable for EMI noise suppression in power electronic circuits.
Lead-free tinned parallel wire leads with plastic case and epoxy sealing improve durability and solderability.

Product Description

TDK B32922C3104K189 polypropylene Film Capacitor is a high-quality passive component designed for reliable operation in electronic circuits requiring EMI noise suppression and stable capacitance values.

This capacitor has a capacitance of 100 nF and is rated for 305 V AC and 305 V DC, providing flexibility for AC and DC circuit designs. It utilizes a polypropylene dielectric material, which offers excellent electrical characteristics and self-healing properties, extending the device's lifespan.

The device is mounted through hole with a 15 mm lead pitch and 0.8 mm lead diameter, allowing straightforward installation on printed circuit boards. Its plastic case and epoxy sealing protect internal components against environmental stress, while the parallel wire leads are lead-free and tinned for compliant soldering processes.

Compact dimensions (18 mm length, 5 mm width, 10.5 mm height) make this capacitor suitable for space-constrained applications in industrial, consumer electronics, and power supply circuits.

Designed to operate reliably at temperatures up to 110°C, it meets stringent European and International safety standards (EN 60384-14:2014/A1:2016, IEC 60384-14:2013/AMD1:2016) and belongs to the X2 suppression class, indicating its capability to suppress EMI noise in common mode applications.

This capacitor is ideal for use in electronic devices, power supplies, lighting ballasts, and filtering circuits where stable and low-loss capacitors are needed. Its self-healing properties enhance robustness against voltage spikes and transient events.

The product originates from Spain, reflecting reliable manufacturing standards. Explore more components like this in the Electronics & Electricals category at EnvMart for your industrial and technical projects.
