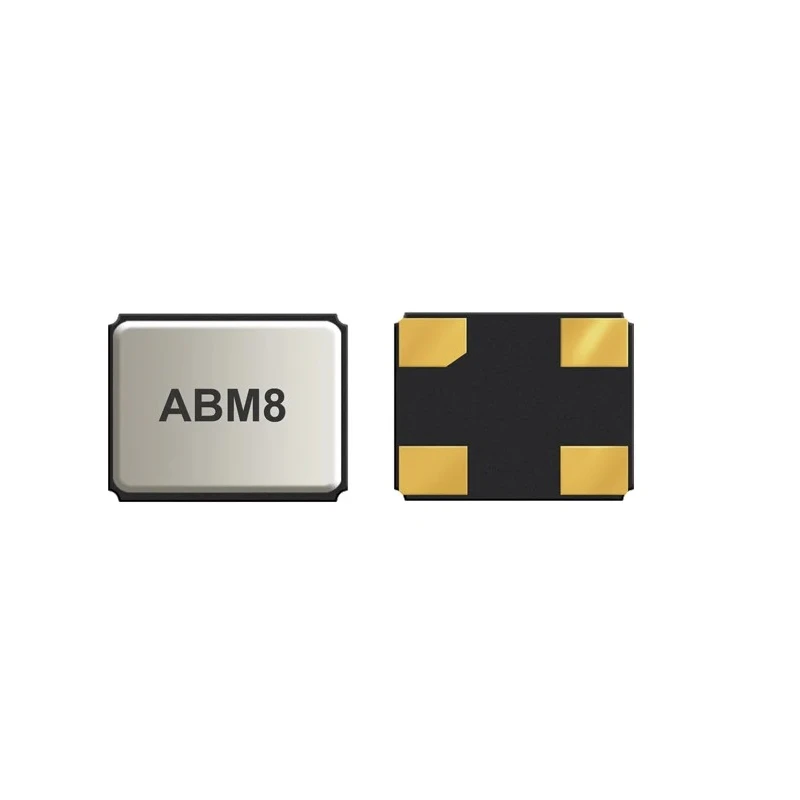

Abracon 12 MHz Crystal Unit Surface Mount 4-Pin 0.8 mm Height, 3.2 mm Length, 2.5 mm Width ABM8-12.000MHz-20-B1U-T

Abracon ABM8-12.000MHz-20-B1U-T is a precision 12 MHz crystal unit designed for surface mount applications with a 4-pin package. It features a compact low-profile construction measuring 3.2 mm in length, 2.5 mm in width, and only 0.8 mm in height, making it ideal for thin and space-constrained electronic devices.

This crystal unit offers a tight frequency tolerance and stability of ±10 ppm, which guarantees consistent performance in sensitive electronic circuits. Its load capacitance of 20 pF and a series resistance of 120 Ω enable stable oscillation in various operating conditions.

The device reliably operates within a wide temperature range from -20°C to 70°C, making it suitable for industrial, commercial, and communication-level applications. With a seam-sealed package, it ensures high reliability and long life span in harsh environments.

Applications include high-density mounting in modems, communication equipment, test instrumentation, PCMCIA cards, and wireless technology products. Compact surface mount design with 4 pins for easy PCB integration. Low height of 0.8 mm suitable for thin equipment.

Stable frequency performance with ±10 ppm tolerance and stability. RoHS compliant, supporting environmental safety requirements. Reliable operation over a temperature range of -20°C to 70°C. Seam sealed package construction for enhanced durability and reliability.

Ideal for use in communication, industrial, and wireless applications. Manufactured in Korea, Republic Of.
