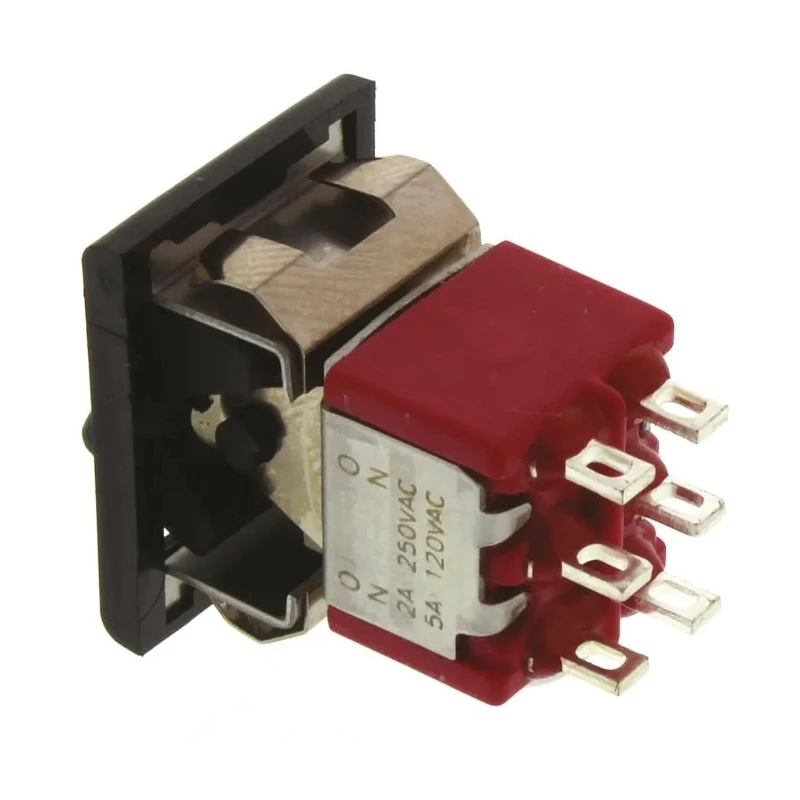

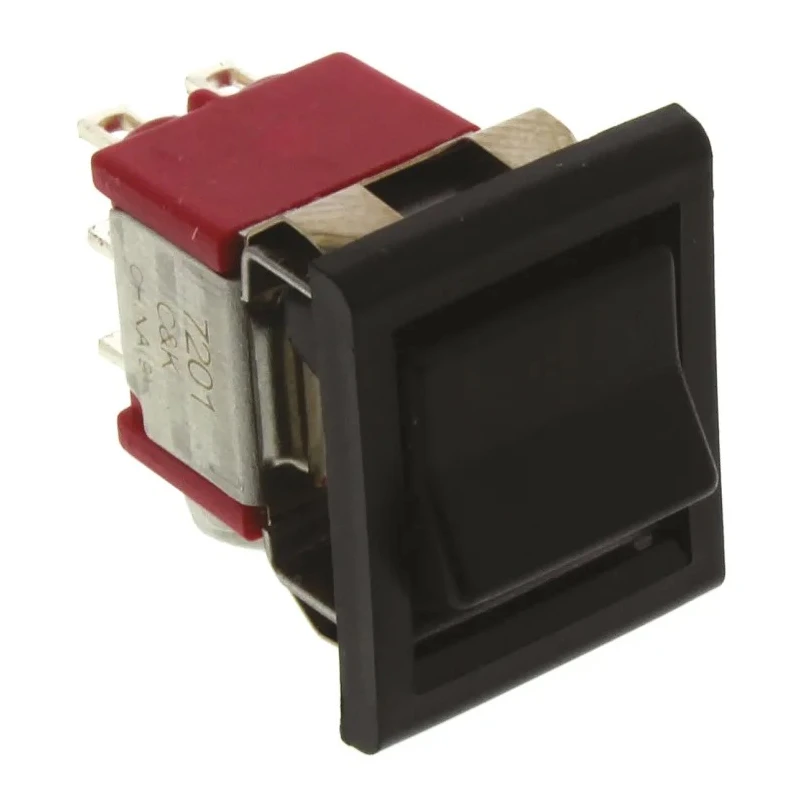

C & K DPDT On-On On-(On) Panel Mount Stainless Steel Rocker Switch 2A 250V AC 28V DC 7000 Series 7201J51ZQE22

Free Delivery in India | Lowest Global Shipping Charges

C & K DPDT On-On On-(On) Panel Mount Stainless Steel Rocker Switch 2A 250V AC 28V DC 7000 Series 7201J51ZQE22

Name: C & K DPDT On-On On-(On) Panel Mount Stainless Steel Rocker Switch 2A 250V AC 28V DC 7000 Series 7201J51ZQE22
Brand: C & K
SKU: 153946
Price: 20.44 USD
Availability: InStock



Category Rocker Switch Brand C & K Condition New

Specifications

Country of Origin	India
Brand	C & K
Model	7201J51ZQE22
IP Rating	IP00
Mount Type	Panel
Housing Material	Stainless Steel
Series	7000
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-(On)
Minimum Operating Temperature	-30°C
Panel Cutout Size	15.24 x 12.7 mm
Terminal type	Solder
Standards/Approvals	RoHS, UL
Switch Operation	On-On
Actuator Colour	Black
Contact DC Voltage	28V dc
Actuator Style	Rectangular
Switch Contact Current	2A
Contact AC Voltage	250V ac
C & K SPDT, Latching Rocker Switch Panel MountBrand	C & K

Key Features

This rocker switch features a double pole double throw (DPDT) contact configuration.
The switch operation is On-On, with an additional On-(On) switch configuration.
The panel cutout size required is 15.24 x 12.7 mm, suitable for mounting on panels up to 3.18 mm thick.
The switch contacts carry a current rating of 2A at 250V AC and 5A at 28V DC.
It operates reliably in temperatures from -30°C up to 85°C.
The switch terminals use solder type connection, offering secure electrical contact.
The actuator style is rectangular and is colored black for clear visibility.
With an IP00 rating, this switch is intended for indoor use without exposure to water or dust.

Product Description

C & K 7201J51ZQE22 DPDT On-On Rocker Switch Panel Mount is a versatile and durable electrical switch designed for industrial, commercial, and automation applications. It features a stainless steel housing ensuring robust mechanical protection and corrosion resistance for panel installations.

This rocker switch supports double pole double throw (DPDT) contact configuration allowing two independent circuits to be switched on or off simultaneously. The On-On operation offers two fixed positions while the On-(On) configuration adds a momentary position for versatile control options.

The switch is designed to fit standard panel cutouts measuring 15.24 x 12.7 mm with panel thickness up to 3.18 mm. It uses solder terminals for establishing reliable and durable electrical connections during assembly and maintenance.

The contacts are silver plated and rated for 2 amperes at 250 volts AC, and a higher capacity of 5 amperes at 28 volts DC suitable for control and signal switching. The operating temperature range from -30°C to 85°C allows use in diverse environmental conditions without compromising performance.

The actuator has a rectangular shape and is black colored to enable easy visual identification of switch state. The IP00 rating confirms suitability for protected environments away from moisture and dust. Compliance with RoHS and UL standards guarantees conformity with international environmental and safety regulations.

This rocker switch features a double pole double throw (DPDT) contact configuration. The switch operation is On-On with an additional On-(On) configuration. Stainless steel housing provides durability and corrosion resistance.

Suitable for panel cutouts sized 15.24 x 12.7 mm and max thickness of 3.18 mm. Contact current rating of 2A at 250V AC and 5A at 28V DC ensures reliable switching. Solder-type terminals offer secure and stable electrical connections.

Operating temperature range is from -30°C to 85°C for versatile usage. Black rectangular actuator style facilitates clear operation feedback. The switch is RoHS and UL certified for safety and environmental standards compliance.

This product is ideal for use in industrial automation systems, electrical panels, manufacturing equipment, and commercial control panels where robust, reliable switching with compact panel mounting is required.

Explore more products in the Rocker Switch category at EnvMart for extensive options in switch types and configurations to fit your project needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This rocker switch features a double pole double throw (DPDT) contact configuration, allowing two independent circuits to be switched on or off simultaneously.

The maximum operating temperature for this model is 85°C, making it suitable for diverse environmental conditions.

The switch contacts are rated for 2A at 250V AC and 5A at 28V DC, ensuring reliable switching for both AC and DC applications.

The required panel cutout size for installation is 15.24 x 12.7 mm, with a maximum panel thickness of 3.18 mm.

This rocker switch uses solder-type terminals, which provide secure and stable electrical connections during assembly and maintenance.

This model has an IP00 rating, indicating it is intended for indoor use without exposure to moisture or dust.

The actuator style is rectangular and is colored black, which facilitates clear visibility of the switch state.

This rocker switch is compliant with RoHS and UL standards, ensuring adherence to international environmental and safety regulations.

The minimum operating temperature for this switch is -30°C, allowing it to function effectively in colder environments.

This rocker switch is suitable for industrial automation systems, electrical panels, manufacturing equipment, and commercial control panels.

The switch operation type is On-On with an additional On-(On) configuration, providing versatile control options.

The housing material of this rocker switch is stainless steel, which provides durability and corrosion resistance for panel installations.
