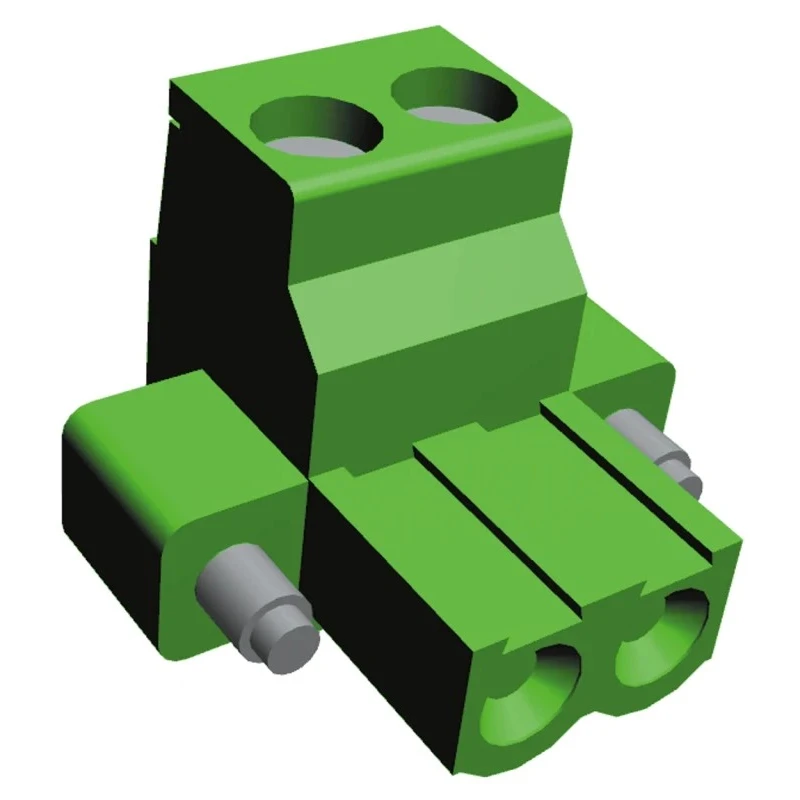

TE Connectivity Buchanan Series Pluggable Terminal Block 2-Contact 5 mm Pitch 1 Row 15A 300V AC Polyamide Housing 796858-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Buchanan Series Pluggable Terminal Block 2-Contact 5 mm Pitch 1 Row 15A 300V AC Polyamide Housing 796858-2

Name: TE Connectivity Buchanan Series Pluggable Terminal Block 2-Contact 5 mm Pitch 1 Row 15A 300V AC Polyamide Housing 796858-2
Brand: TE Connectivity
SKU: 377771
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Blocks Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	300V ac
Brand	TE Connectivity
Colour	Green
Orientation	Straight
Current	15A
Length	19.8mm
Model	796858-2
Depth	15.5mm
Width	18.4mm
Housing Material	Polyamide
Series	Buchanan
Number of Rows	1
Pitch	5mm
Number of Contacts	2
Connector Gender	Female
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	3mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	30AWG

Key Features

Constructed with durable green polyamide housing for excellent insulation.
Accommodates wire sizes from 12 AWG to 30 AWG with a minimum of 0.05 mm² and maximum of 3 mm².
Features a straight orientation for versatile mounting options.
Compact dimensions of 19.8mm length, 18.4mm width, and 15.5mm depth.
Suitable for industrial and electronic applications requiring reliable electrical connections.
Rated for 15A current and 300V AC voltage ensuring suitability for various electronic applications.
Includes M3 screw terminals and locking flange for secure connections.
Ideal for industrial automation, manufacturing, HVAC, and laboratory electrical control systems.

Product Description

TE Connectivity 796858-2 Buchanan Series pluggable terminal block offers a 2-contact design with a 5 mm pitch and a single row configuration. Rated for a current of 15A and a voltage of 300V AC, this terminal block is housed in a robust green polyamide 6.6 GF material, ensuring mechanical strength and electrical insulation.

This terminal block supports wire sizes ranging from 12 AWG to 30 AWG (0.05 to 3 mm²), making it suitable for a wide range of wiring requirements. The connector is female gender with a straight orientation, facilitating easy assembly and connection in various industrial, laboratory, manufacturing, and electronic control systems.

Its compact dimensions (19.8mm length, 18.4mm width, and 15.5mm depth) make it efficient for PCB mounting in confined spaces. The 5 mm pitch maintains compatibility with standard terminal block accessories and PCB designs.

The TE Connectivity Buchanan Series is well-suited for industrial automation, power management, and electronic instrumentation applications where durable and secure electrical connections are essential. The plug connector includes M3 screw terminals with locking screw flanges for added reliability.

It adheres to industry standards though specific certifications are not declared. Constructed with green polyamide housing for excellent insulation and durability. Supports wire sizes from 12 AWG to 30 AWG (0.05 mm² to 3 mm²) for flexible wiring options.

Rated for 15A current and 300V AC voltage, ensuring suitability for various electronic applications. Compact dimensions enable installation in tight spaces for PCB and electronic modules. Features female connector gender with straight orientation for ease of use.

Terminal block plug connectors include M3 screw terminals and locking flange for secure connections. Ideal for industrial automation, manufacturing, HVAC, and laboratory electrical control systems. Part of the Buchanan Series known for reliability and precision in electronic components.
