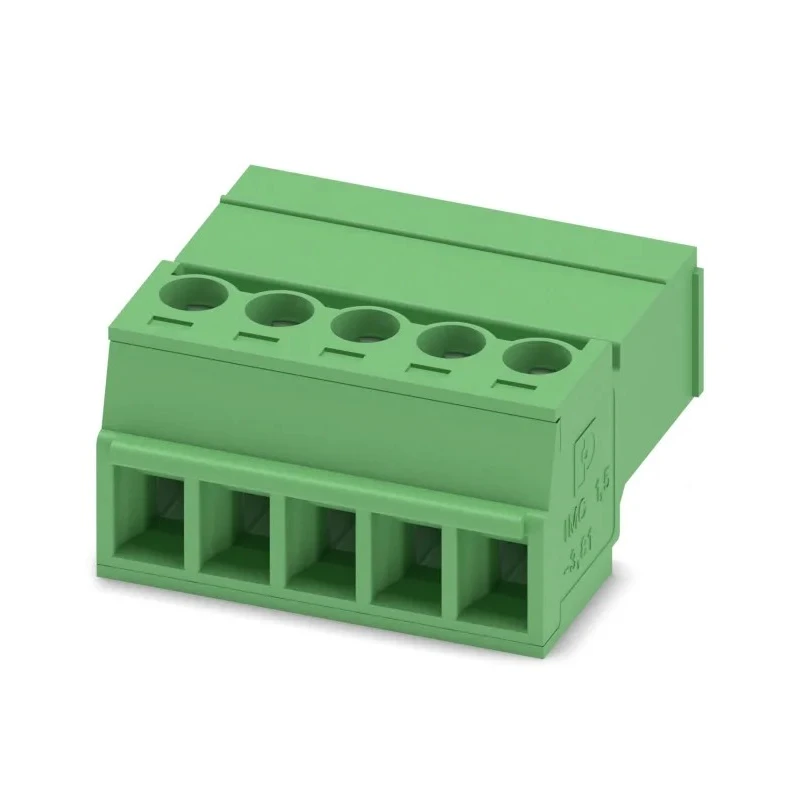

Phoenix Contact Pluggable Terminal Block 5-Contact, 3.81 mm Pitch, 1 Row, Polyamide Housing, 8A Current, 320V Voltage 1857919
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 8A |
| Length | 18mm |
| Model | 1857919 |
| Depth | 11.1mm |
| Width | 19.84mm |
| Housing Material | Polyamide |
| Series | IMC 1.5/5-ST-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 5 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Screw |
| PCB connector, nominal current | 8 A, rated voltage (III/2): 160 V, number of positions: 5, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, colour: green, contact surface: Tin |
Key Features
- The terminal block features a polyamide housing providing durability and insulation.
- Supports nominal current up to 8 A and rated voltage of 320 V.
- Its screw connection method with tension sleeve ensures secure wire attachment.
- Compatible with wire sizes ranging from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG).
- The product is designed with a straight orientation and a single row configuration.
- Contact surfaces are tin-plated for corrosion resistance and optimal conductivity.
- The block’s compact dimensions include length 18 mm, width 19.84 mm, and depth 11.1 mm.
- Color coded green for easy identification in circuit assemblies.
Product Description
Phoenix Contact 1857919 is a high-quality pluggable terminal block designed for PCB applications requiring compact and secure electrical connections. Featuring 5 contacts arranged in a single row with a 3.81 mm pitch, it supports nominal currents of up to 8 A and voltage ratings of 320 V (III/2).
Constructed with polyamide housing, this terminal block provides durable insulation and mechanical stability in industrial and electronic environments. The screw connection method is enhanced with a tension sleeve to secure wires firmly and ensure reliable conductivity.
The terminal block accommodates a wide range of wire sizes from 0.14 mm² (28 AWG) up to 1.5 mm² (16 AWG), enabling versatile usage across varied wiring requirements.
The product is straight-oriented and features tin-plated contact surfaces to prevent corrosion and maintain optimal electrical performance. Its compact size with dimensions 18 mm length, 19.84 mm width, and 11.1 mm depth makes it suitable for dense PCB layouts.
This pluggable terminal block is RoHS compliant and manufactured in Poland, complying with strict environmental and quality standards common in industrial, manufacturing, automation, and electronic system applications.
The terminal block features a polyamide housing providing durability and insulation. Supports nominal current up to 8 A and rated voltage of 320 V. Screw connection method with tension sleeve ensures secure wire attachment.
Wire size compatibility from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG). Compact dimensions: 18 mm length, 19.84 mm width, 11.1 mm depth. Single row with 5 contacts and 3.81 mm pitch. Tin-plated contact surfaces for corrosion resistance.
Green color for easy circuit identification. RoHS compliant and made in Poland.
This product is ideal for use in industrial automation, control equipment, PCB assemblies, electronic manufacturing, and other electrical connector applications requiring high reliability and ease of installation.
Explore the full range of Phoenix Contact Pluggable Terminal Blocks and other connectors on EnvMart for compatible industrial and electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a nominal current of up to 8 A and a rated voltage of 320 V.
This terminal block accommodates wire sizes ranging from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG).
The compact dimensions are 18 mm in length, 19.84 mm in width, and 11.1 mm in depth.
It features 5 contacts arranged in a single row configuration.
The pitch of this model is 3.81 mm.
The housing is constructed from polyamide, providing insulation and mechanical stability.
It employs a screw connection method with a tension sleeve to secure the wires.
Yes, this product is RoHS compliant, adhering to strict environmental standards.
This terminal block is designed with a straight orientation.
It is manufactured in Poland.
The terminal block is color-coded green for easy identification in circuit assemblies.
It is suitable for use in industrial automation, control equipment, PCB assemblies, and electronic manufacturing.
