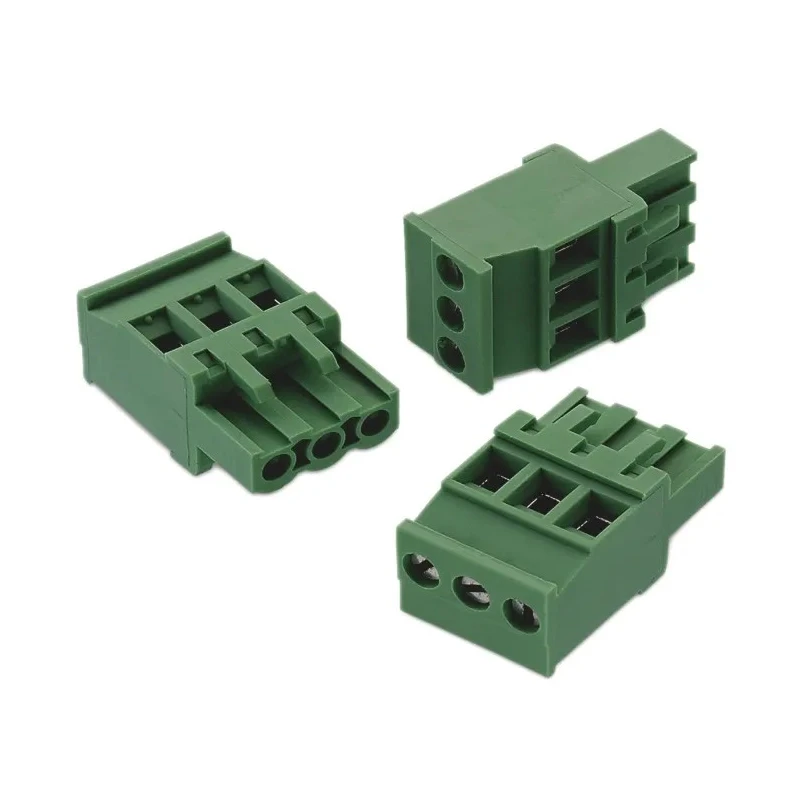

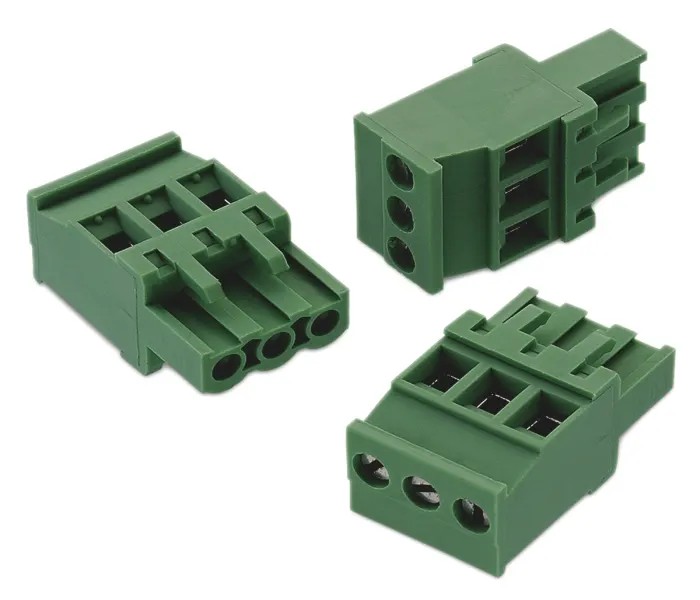

Wurth Elektronik 352 Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 300V AC, 17A Current 691352510003

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 352 Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 300V AC, 17A Current 691352510003

Name: Wurth Elektronik 352 Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 300V AC, 17A Current 691352510003
Brand: Wurth Elektronik
SKU: 378531
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Blocks Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	300V ac
Brand	Wurth Elektronik
Colour	Green
Orientation	Straight
Current	17A
Length	15.24mm
Depth	26mm
Width	12.6mm
Housing Material	Polyamide
Series	352
Number of Rows	1
Pitch	5.08mm
Number of Contacts	3
Minimum Wire Size mm²	0.21mm²
Maximum Wire Size mm²	3.31mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Cable Entry
RS PRO Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 RowBrand	RS PRO

Key Features

Constructed with green polyamide housing ensuring durability and UL94-V0 flame retardancy.
Designed for straight orientation with cable entry wire connection method for ease of installation.
Accepts wire sizes from 24 AWG up to 12 AWG, accommodating a wide range of applications.
Compact dimensions of 15.24 mm length, 12.6 mm width, and 26 mm depth for space-efficient designs.
Features a retention latch and slot type M3 screw terminals for secure wire fixing.
Manufactured with tin plated phosphor bronze wire guards for excellent conductivity and corrosion resistance.
Ideal for industrial, electronic, and power connector applications requiring modular pluggable solutions.

Product Description

Wurth Elektronik 691352510003 pluggable terminal block from the 352 Series offers a 3-contact, 5.08 mm pitch design in a single row configuration, supporting a voltage rating of 300V AC and a current of 17A. The housing is made from green polyamide (UL94-V0 rated) providing flame retardant properties, ensuring secure and safe electrical connections in demanding environments.

This terminal block is engineered for straight orientation and utilizes cable entry wire connection method with slot type M3 screw terminals. It accommodates wire sizes ranging from 0.21 mm² to 3.31 mm² (24 AWG to 12 AWG), making it adaptable for various conductor sizes.

The compact form factor with length 15.24 mm, width 12.6 mm, and depth 26 mm is tailored for space-efficient PCB mounting and wiring assemblies. A retention latch on the wire side secures the block firmly in place, enhancing mechanical stability during operation.

Featuring tin plated phosphor bronze wire guards, the terminal block ensures excellent electrical conductivity and corrosion resistance for longevity and reliability in industrial, manufacturing, and power electronics applications. These Pluggable Terminal Blocks provide easy modular installation and removal, making maintenance and system modification simple and efficient.

Designed for electronic, power, and industrial control applications, the Wurth Elektronik 352 Series terminal block is a robust solution for secure electrical connections with the flexibility of plug-in modularity.

Constructed with green polyamide housing for durability and flame retardance. Supports wire sizes from 24 AWG to 12 AWG for versatile connectivity. Tin plated phosphor bronze wire guards provide corrosion resistance. Retention latch enhances mechanical security during use.

Compact dimensions enable efficient PCB space utilization. Rated for 17A at 300V AC, suitable for varied power applications. Easy modular installation and removal enhance maintenance efficiency. Explore more electronic components and connectors at EnvMart for your manufacturing, industrial automation, and electronic assembly needs.
