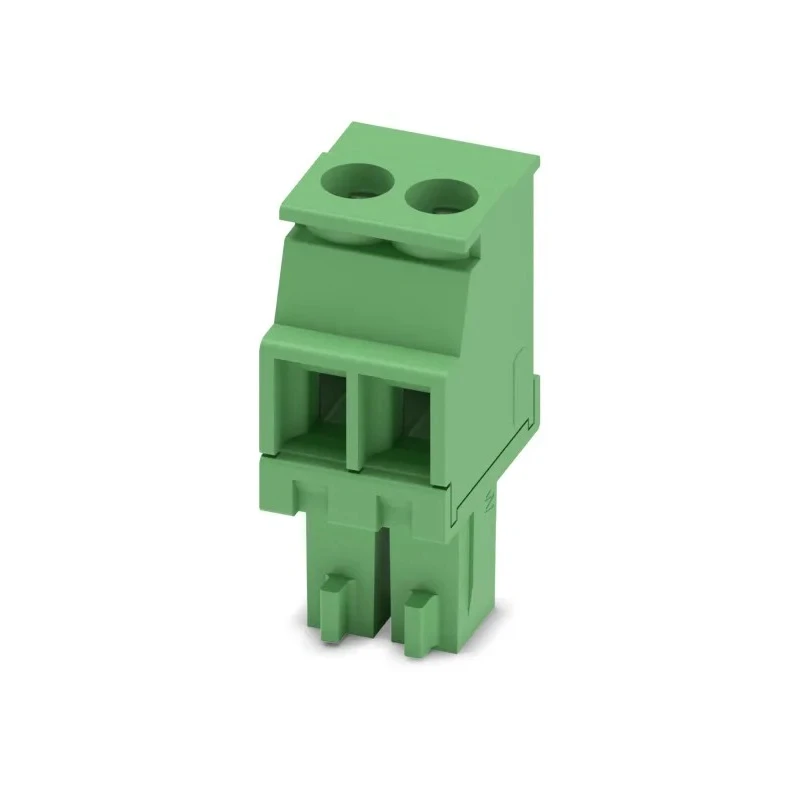

Phoenix Contact MCVR 1.5/2-ST-3.5 Series Pluggable Terminal Block, 2-Contact, 3.5 mm Pitch, 1 Row, 320V, 8A 1863152

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MCVR 1.5/2-ST-3.5 Series Pluggable Terminal Block, 2-Contact, 3.5 mm Pitch, 1 Row, 320V, 8A 1863152

Name: Phoenix Contact MCVR 1.5/2-ST-3.5 Series Pluggable Terminal Block, 2-Contact, 3.5 mm Pitch, 1 Row, 320V, 8A 1863152
Brand: PHOENIX CONTACT
SKU: 374125
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	8A
Length	7.8mm
Model	1863152
Depth	19.1mm
Width	10.4mm
Housing Material	Polyamide
Series	MCVR 1.5/2-ST-3.5
Number of Rows	1
Pitch	3.5mm
Number of Contacts	2
Connector Gender	Female
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	16AWG
Wire Connection Method	Screw Connection with Tension Sleeve

Key Features

The terminal block supports currents up to 8A safely.
Designed with a polyamide housing for high durability and electrical insulation.
Accommodates wire sizes from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG).
Equipped with screw connections featuring tension sleeves to ensure reliable wiring contact.
Compact dimensions with a length of 7.8 mm and width of 10.4 mm optimize space on DIN rails.
Green color coding aids visual identification in panel assemblies.
Single row design facilitates straightforward installation and wiring.

Product Description

Phoenix Contact 1863152 is a series MCVR 1.5/2-ST-3.5 pluggable terminal block designed with 2 contacts and a 3.5 mm pitch. This component is engineered for reliable and secure electrical circuit connections, ideally suited for industrial, automation, electronic, and electrical applications requiring compact and easy-to-maintain interfaces.

The terminal block features a robust polyamide housing that offers high mechanical strength and excellent electrical insulation. It supports a maximum current of 8A and a voltage rating of 320V, ensuring dependable performance under typical industrial operating conditions.

This model accommodates both metric wire sizes from 0.14 mm² up to 1.5 mm² and AWG sizes 28 to 16. The connection method uses screw connectors equipped with tension sleeves that guarantee a steadfast and vibration-resistant wire hold.

The compact footprint measures 7.8 mm in length, 10.4 mm in width, and 19.1 mm in depth, allowing efficient use of space on DIN rails or mounting panels. Its green color coding enhances readability and identification within terminal assemblies.

Applications include use in electrical cabinets, signal distribution, control panels, and various automation systems within manufacturing, industrial machinery, and electrical installation sectors.

The terminal block supports currents up to 8A safely. Designed with a polyamide housing for high durability and electrical insulation. Accommodates wire sizes from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG). Equipped with screw connections featuring tension sleeves to ensure reliable wiring contact.

Compact dimensions with a length of 7.8 mm and width of 10.4 mm optimize space on DIN rails. Voltage rating suitable for up to 320V applications. Green color coding aids visual identification in panel assemblies. Single row design facilitates straightforward installation and wiring.

Explore the full range of Phoenix Contact components and Pluggable Terminal Blocks at EnvMart for optimal electrical connectivity solutions.
