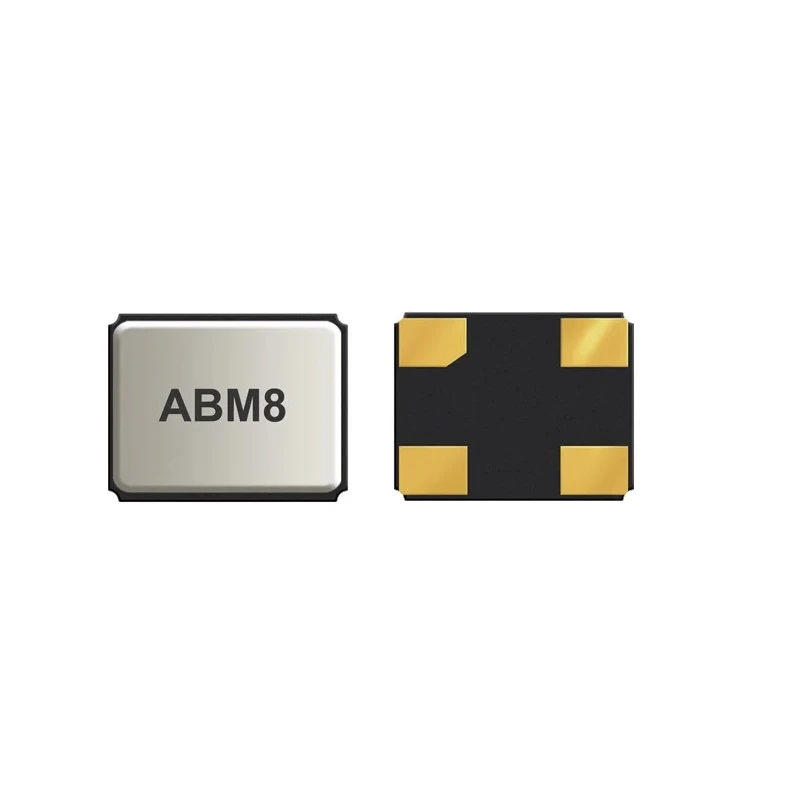

Abracon 16 MHz Crystal Unit Surface Mount 4-Pin 0.8 mm Height 3.2 mm Length 2.5 mm Width 9pF Load ABM8-16.000MHz-9-B1U-T

Abracon ABM8-16.000MHz-9-B1U-T is a 16 MHz Crystal Unit designed for surface mounting with a 4-pin configuration. This crystal unit features a standard frequency of 16 MHz and maintains a frequency tolerance of ±10 ppm, providing accurate timing for electronic circuits.

Its compact dimensions, measuring 3.2 mm in length, 2.5 mm in width, and a low profile height of 0.8 mm, make it suitable for modern, densely packed electronic equipment. The load capacitance is 9 pF, optimizing electrical characteristics for signal integrity.

The device operates reliably within a temperature range from -20°C minimum to 70°C maximum, making it ideal for varied industrial and commercial electronic applications. It includes a series resistance of 70 Ω which supports stable oscillation and signal quality. Due to its seam sealed package, the crystal unit assures high reliability, particularly in thin and compact equipment requiring tight tolerances.

This crystal unit complies with RoHS environmental standards, ensuring it meets current regulatory requirements for hazardous substances. Typical applications include high-density circuits, modems, communication devices, test equipment, PCMCIA cards, and wireless systems, where precise frequency control is critical.

Standard frequency of 16 MHz ensuring precise oscillation. Surface mount type suitable for high-density applications. Load capacitance of 9 pF for optimal circuit matching. Compact package dimensions: length 3.2 mm, width 2.5 mm, height 0.8 mm.

Frequency stability and tolerance both at ±10 ppm for reliable performance. Operates efficiently within temperature range -20°C to 70°C. Series resistance of 70 Ω supporting high-quality signal stability. Seam sealed package ensures high reliability in thin equipment.

Compliant with RoHS standards for environmental safety. Explore EnvMart’s selection of Abracon Crystal Units for precision timing components in industrial, laboratory, and communication electronics.
