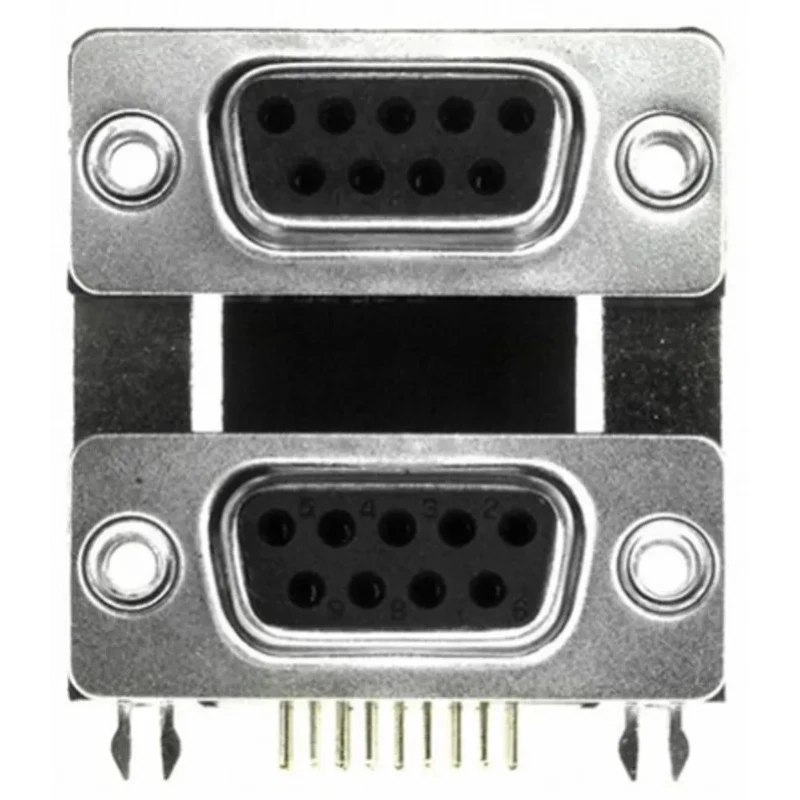

Norcomp Right Angle PCB D-Sub Connector DA-9 DB-9 2.769 mm Pitch Gold Plated Brass Contacts Steel Housing 189-009-513R571
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1kV |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | 189-009-513R571 |
| Mount Type | PCB |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 189 |
| Mounting Hardware | 4 to 40 Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts A | 9 |
| D-Sub Shell Size A | DA-9 |
| Contact Gender A | Female |
| D-Sub Shell Size B | DB-9 |
| Contact Gender B | Male |
Key Features
- This right angle PCB mount connector features dual ports for space-saving design on circuit boards.
- High-performance brass contacts are gold-plated for excellent conductivity and corrosion resistance.
- Steel housing with nickel plating offers improved shielding and durability.
- Suitable for currents up to 5A and voltage up to 1kV, ensuring reliable signal transmission.
- Operating temperature ranges from -55°C to 105°C, suitable for various industrial environments.
- The connector uses solder termination with 4 to 40 inserts or standoffs for secure mounting.
- Designed for applications requiring multiple connector ports within limited PCB space.
- Manufactured with high temperature UL94V-0 thermoplastic insulator capable for 260°C process temperature.
Product Description
Norcomp 189-009-513R571 is a right angle PCB mount D-Sub connector featuring DA-9 and DB-9 shell sizes with a 2.769 mm pitch. This dual-port connector is designed to maximize PCB space efficiency while providing robust electrical connections with gold-plated brass contacts rated for 5A current and 1kV voltage. The connector housing is made of nickel-plated steel, enhancing electromagnetic shielding and mechanical durability.
Operating reliably between -55°C and 105°C, this connector utilizes a UL94V-0 thermoplastic insulator rated for high-temperature soldering processes. Mounting options include 4 to 40 inserts or hex standoffs, providing secure attachment to circuit boards. The right angle orientation facilitates flexible PCB layouts and space savings.
Applications include electronic and power connectors in industrial, manufacturing, and electronic component assemblies where compact, high-quality D-Sub connections are required. The product is manufactured in Taiwan, Province of China, adhering to the 189 series standards for stacked D-Sub Connectors.
This right angle PCB mount connector features dual ports for space-saving design on circuit boards. High-performance brass contacts are gold-plated for excellent conductivity and corrosion resistance. Steel housing with nickel plating offers improved shielding and durability.
Suitable for currents up to 5A and voltage up to 1kV, ensuring reliable signal transmission. Operating temperature ranges from -55°C to 105°C, suitable for various industrial environments. The connector uses solder termination with 4 to 40 inserts or standoffs for secure mounting.
Designed for applications requiring multiple connector ports within limited PCB space. Manufactured with high temperature UL94V-0 thermoplastic insulator capable for 260°C process temperature.
Explore Norcomp and other trusted brands for electronic connectors in the EnvMart catalog to find compatible components and accessories tailored for your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 5A and a voltage of 1kV, ensuring reliable signal transmission.
The connector operates reliably within a temperature range of -55°C to 105°C, making it suitable for various industrial environments.
It uses solder termination, allowing for secure mounting on PCBs with 4 to 40 inserts or standoffs.
The housing is made of nickel-plated steel, and the contacts are high-performance brass with gold plating for excellent conductivity and corrosion resistance.
The pitch size for this model is 2.769 mm, which helps in space-saving designs on circuit boards.
This connector features a total of 9 contacts, with a combination of female and male genders in the DA-9 and DB-9 shell sizes, respectively.
This model has a right angle orientation, facilitating flexible PCB layouts and efficient use of space.
It is manufactured in Taiwan, Province of China, adhering to the 189 series standards for stacked D-Sub connectors.
The thermoplastic insulator used in this connector is rated for a maximum process temperature of 260°C.
It is designed for electronic and power connector applications in industrial, manufacturing, and electronic component assemblies where compact D-Sub connections are required.
This connector belongs to the 189 series, which is specifically designed for stacked D-Sub connectors.
This model supports PCB mounting, providing secure attachment to circuit boards for various applications.
