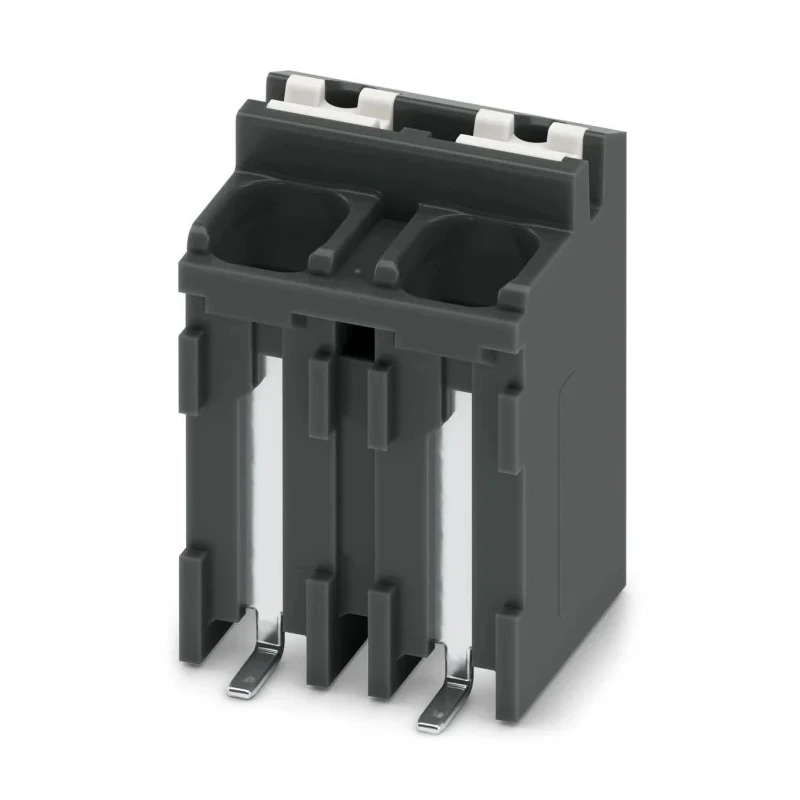

Phoenix Contact SPT-SMD 1.5/2-V-5.08 R24 PCB Terminal Block, 2-Contact, 5.08 mm Pitch, Surface Mount, 1 Row, 13.5A 1824417

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact SPT-SMD 1.5/2-V-5.08 R24 PCB Terminal Block, 2-Contact, 5.08 mm Pitch, Surface Mount, 1 Row, 13.5A 1824417

Name: Phoenix Contact SPT-SMD 1.5/2-V-5.08 R24 PCB Terminal Block, 2-Contact, 5.08 mm Pitch, Surface Mount, 1 Row, 13.5A 1824417
Brand: PHOENIX CONTACT
SKU: 90313
Price: 2.1 USD
Availability: InStock



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	500V
Brand	Phoenix Contact
Colour	Black
Orientation	Straight
Current	13.5A
Length	9.08mm
Model	1824417
Depth	13.6mm
Width	7.7mm
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Series	SPT-SMD 1.5/ 2-V-5.08 R24
Number of Rows	1
Pitch	5.08mm
Number of Contacts	2
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	16AWG
Wire Connection Method	Spring

Key Features

Supports 2 wire connections with a 5.08 mm pitch.
Surface mount design for compatibility with SMT assembly processes.
Handles up to 13.5 A current and up to 500 V voltage.
Employs spring actuation lever for tool-free wire connection and removal.
Liquid crystal polymer housing ensures high thermal and mechanical stability.
Accommodates wire sizes from 0.2 mm² to 1.5 mm² (24 - 16 AWG).
1 row design, color black, suitable for automated production lines.

Product Description

This 2-contact terminal block features a 5.08 mm pitch, surface mount configuration, and a straight row orientation, ensuring optimal space utilization on PCBs.

The push-in spring technology and actuation lever make wiring fast, reliable, and tool-free - ideal for high-mix, automated environments. Accepting both solid and stranded conductors ranging from 0.2 to 1.5 mm² (24 - 16 AWG), it suits diverse PCB layouts in industrial, automation, HVAC, control, and instrumentation applications.

With a robust liquid crystal polymer housing, this terminal block withstands mechanical and thermal stresses during solder reflow processes. Its tape-on-reel packaging streamlines automated placement, while anchoring and soldering pins assure stability and secure PCB attachment, whether deployed in horizontal or vertical mounting schemes.

Electrical ratings include a continuous current capacity of 13.5 A and voltage withstand up to 500 V (per IEC/UL standards), making it suitable for both signal and power distribution within sophisticated PCB assemblies. The black, compact body (9.08 mm length, 7.7 mm width, 13.6 mm depth) integrates seamlessly into modern electronics designs.

2-contact PCB Terminal Block with 5.08 mm pitch and surface mount style. Supports up to 13.5A and 500V; ideal for demanding power and signal handling. Spring actuation lever enables rapid, tool-free wire insertions and removals.

Accommodates wires from 0.2 - 1.5 mm² (24 - 16 AWG). Liquid crystal polymer housing for durability and automated reflow compatibility. Orientation: straight; color: black; secure anchoring pins and tape-on-reel packaging.

Engineered for use in industrial electronics, factory automation, HVAC equipment, and instrumentation systems.

This Phoenix Contact terminal block represents reliable German engineering for robust printed circuit board connections. Explore EnvMart to browse more PCB terminal solutions and discover Phoenix Contact’s portfolio for electronics, automation, and control.
