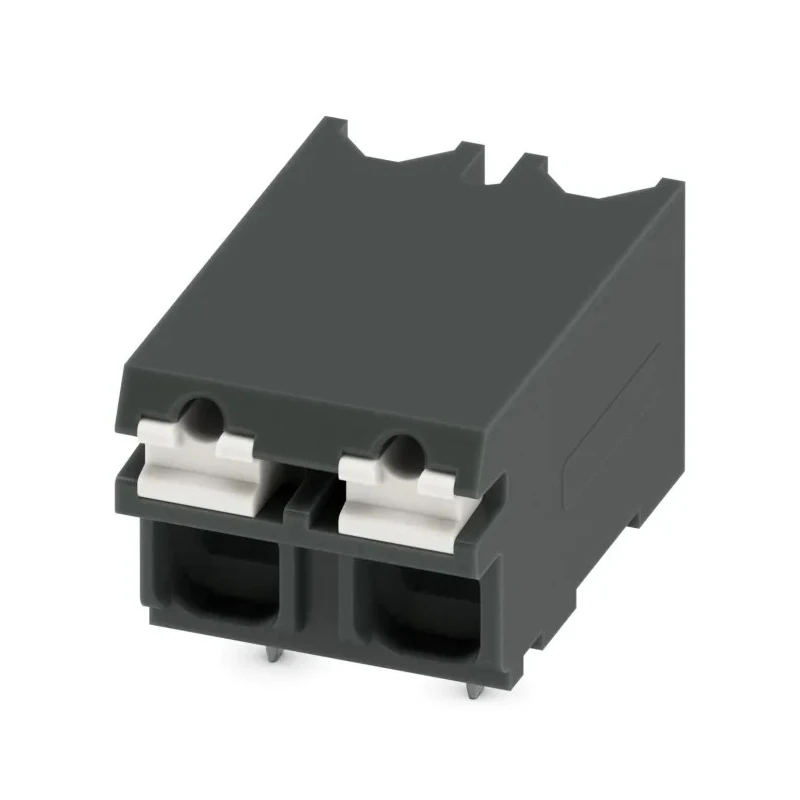

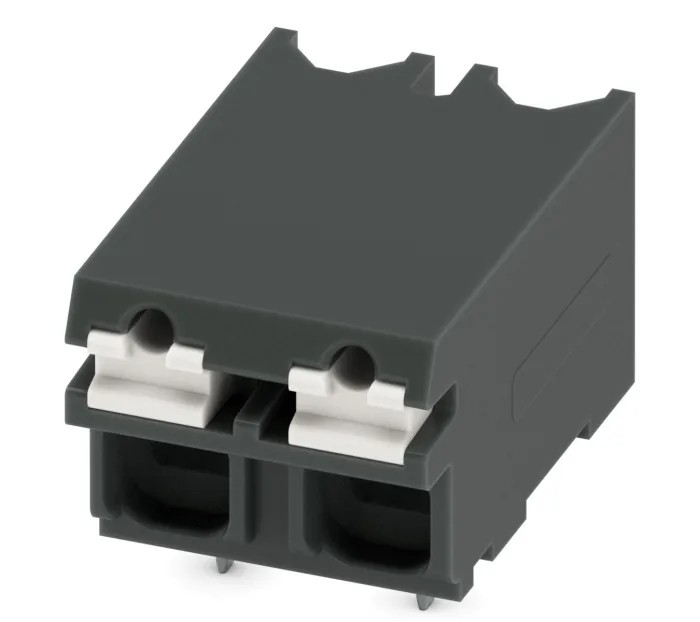

Phoenix Contact SPT-SMD 1.5/ 2-H-5.0 R24 Series PCB Terminal Block, 2-Contact, 5 mm Pitch, Surface Mount, Straight 1824747
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 13.5A |
| Length | 9mm |
| Model | 1824747 |
| Depth | 13.6mm |
| Width | 7.7mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Series | SPT-SMD 1.5/ 2-H-5.0 R24 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 2 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring |
Key Features
- Features push-in spring technology for tool-free conductor connection and disconnection.
- Suitable for solid or stranded conductors with wire sizes from 0.2 mm² to 1.5 mm² (24 to 16 AWG).
- Constructed with liquid crystal polymer housing for durability and performance.
- Comes in a horizontal mounting style with two anchoring pins for PCB alignment.
- Delivered in tape-on-reel packaging enabling automated assembly and reflow soldering.
- Compact dimensions with depth of 13.6 mm, length of 9 mm, and width of 7.7 mm.
- Supports current up to 13.5 A and voltage up to 500 V for robust electrical performance.
Product Description
Phoenix Contact 1824747 PCB Terminal Block provides a reliable connection solution for electronic circuit boards, supporting currents up to 13.5 A and voltages up to 500 V. The 2-contact design with a 5 mm pitch and straight orientation facilitates efficient board-level connectivity with spring actuation levers to connect and disconnect wires easily.
Its housing, made from liquid crystal polymer, ensures high mechanical strength and heat resistance, suitable for surface mounting on PCBs. The terminal block supports wire sizes ranging from 0.2 mm² to 1.5 mm² (24 to 16 AWG), addressing a range of conductor types with a push-in spring connection technology that eliminates the need for additional tools and reduces assembly time and costs.
The horizontal mounting features anchoring pins to assure precise alignment on the PCB during automated assembly, further supported by tape-on-reel packaging compliant with IEC 60283-3, enabling seamless integration into SMT reflow processes. With compact dimensions of 13.6 mm depth, 9 mm length, and 7.7 mm width, it fits efficiently in dense PCB layouts.
This Phoenix Contact terminal block series is widely used across industrial electronics, manufacturing, power connectors, and automation equipment, ensuring secure electrical connections in demanding environments. The product is manufactured in Germany, maintaining high quality standards.
Features push-in spring technology for tool-free conductor connection and disconnection. Suitable for solid or stranded conductors with wire sizes from 0.2 mm² to 1.5 mm² (24 to 16 AWG). Constructed with liquid crystal polymer housing for durability and performance.
Comes in a horizontal mounting style with two anchoring pins for PCB alignment. Delivered in tape-on-reel packaging enabling automated assembly and reflow soldering. Supports current up to 13.5 A and voltage up to 500 V for robust electrical performance.
Explore comprehensive ranges of PCB Terminal Blocks and Phoenix Contact products on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 13.5 A, ensuring robust electrical performance in various applications.
The terminal block is rated for a maximum voltage of 500 V, suitable for high voltage applications.
It accommodates wire sizes from 0.2 mm² to 1.5 mm² (24 to 16 AWG), making it versatile for different conductor types.
The pitch for this model is 5 mm, facilitating efficient board-level connectivity.
The housing is constructed from liquid crystal polymer, providing durability and performance.
It features a horizontal mounting style with two anchoring pins for precise alignment during installation.
The dimensions are 13.6 mm in depth, 9 mm in length, and 7.7 mm in width, allowing for compact placement in PCB layouts.
It utilizes a push-in spring connection method, allowing for tool-free conductor connection and disconnection.
It is delivered in tape-on-reel packaging, which is compliant with IEC 60283-3, enabling automated assembly and reflow soldering.
This model is manufactured in Germany, adhering to high quality standards.
It has 2 contacts, providing a reliable connection solution for electronic circuit boards.
It is widely used across industrial electronics, manufacturing, power connectors, and automation equipment.
