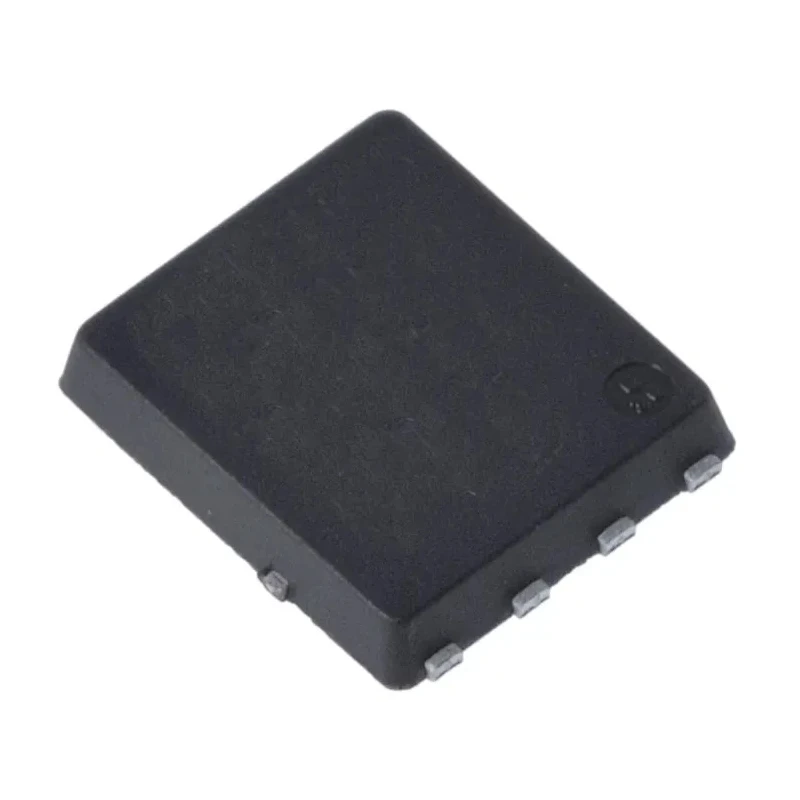

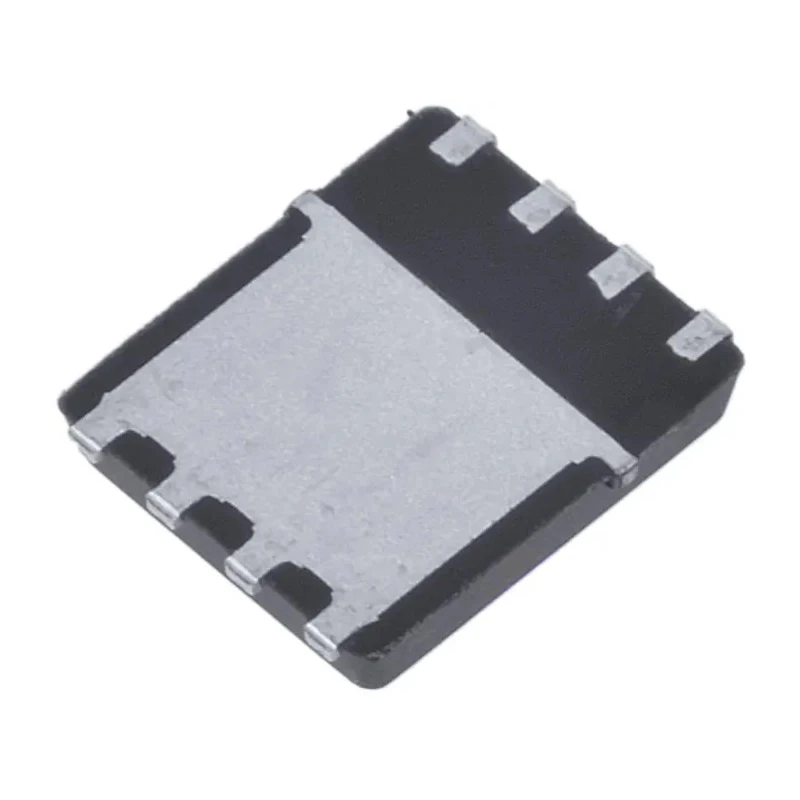

Infineon OptiMOS 5 N-Channel MOSFET, 100 A, 60 V, Enhancement Mode, 8-Pin TDSON BSC028N06NSATMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.1mm |
| Length | 6.1mm |
| Model | BSC028N06NSATMA1 |
| Width | 5.35mm |
| Mount Type | Surface |
| Series | OptiMOS 5 |
| Maximum Operating Temperature | 150°C |
| Package Type | TDSON |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | Pb Free, Halogen Free (IEC61249-2-21), JEDEC (J-STD20,JESD22), RoHS |
| Pin Count | 8 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 100A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 2.8mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 83W |
| Typical Gate Charge Qg @ Vgs | 37nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | 1.2V |
Key Features
- Supports a maximum continuous drain current of 100A.
- Operates at a maximum drain source voltage of 60V with enhancement mode channel.
- Features a low on-resistance of 2.8mΩ minimizing power loss.
- Comes in an 8-pin TDSON surface-mount package for effective thermal management.
- Operates within a temperature range from -55°C to 150°C for extreme environment suitability.
- Typical gate charge of 37nC ensures precise switching capabilities.
- Maximum gate-source voltage rated at ±20V for robust gate control.
- Forward voltage is 1.2V for optimized conduction.
Product Description
Infineon BSC028N06NSATMA1 OptiMOS 5 Series N-Channel MOSFET is engineered for demanding power applications requiring high efficiency and reliability. Rated for a maximum continuous drain current of 100A and a drain-source voltage of 60V, it ensures robust performance in power management circuits.
This device integrates an enhancement mode channel with a low on-resistance (Rds) of 2.8mΩ, minimizing energy losses and improving thermal efficiency. The compact 8-pin TDSON surface-mount package optimizes heat dissipation and footprint for modern electronics.
Designed to operate over a wide temperature range from -55°C to 150°C, it performs reliably in harsh industrial, automotive, and renewable energy environments. The typical gate charge of 37nC facilitates rapid and precise switching, backed by a maximum gate-source voltage tolerance of ±20V, ensuring robust gate drive operation.
Compliant with key industry standards including Pb Free, Halogen Free (IEC61249-2-21), JEDEC (J-STD20, JESD22), and RoHS, this MOSFET supports sustainability and quality assurance. Its low forward voltage drop of 1.2V further improves conduction efficiency.
Common applications include synchronous rectification in power supplies, electric vehicle motor drives, industrial automation control systems, UPS backup units, DC-DC converters, inverters, and renewable energy systems, where precise power control and durability are critical.
Supports a maximum continuous drain current of 100A. Low on-resistance of 2.8mΩ enhances efficiency. Wide operating temperature range from -55°C to 150°C. Compact 8-pin TDSON package for effective thermal management. Suitable for high-frequency switching applications.
Complies with Pb Free, Halogen Free, JEDEC, and RoHS standards.
Explore Infineon MOSFETs in the Electronics & Electricals category on EnvMart for advanced semiconductor solutions tailored to your industrial, automotive, and power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 100A.
It can operate at a maximum drain-source voltage of 60V.
This unit features a low on-resistance of 2.8mΩ, which helps minimize power loss.
It operates within a temperature range from -55°C to 150°C, suitable for extreme environments.
The typical gate charge is 37nC, facilitating precise switching capabilities.
The maximum gate-source voltage is rated at ±20V, ensuring robust gate control.
This model has dimensions of 6.1mm in length, 5.35mm in width, and a height of 1.1mm.
It comes in an 8-pin TDSON surface-mount package, which optimizes thermal management.
It complies with Pb Free, Halogen Free (IEC61249-2-21), JEDEC (J-STD20, JESD22), and RoHS standards.
Common applications include synchronous rectification in power supplies, electric vehicle motor drives, and DC-DC converters.
The forward voltage drop is 1.2V, which enhances conduction efficiency.
The maximum power dissipation is rated at 83W.
