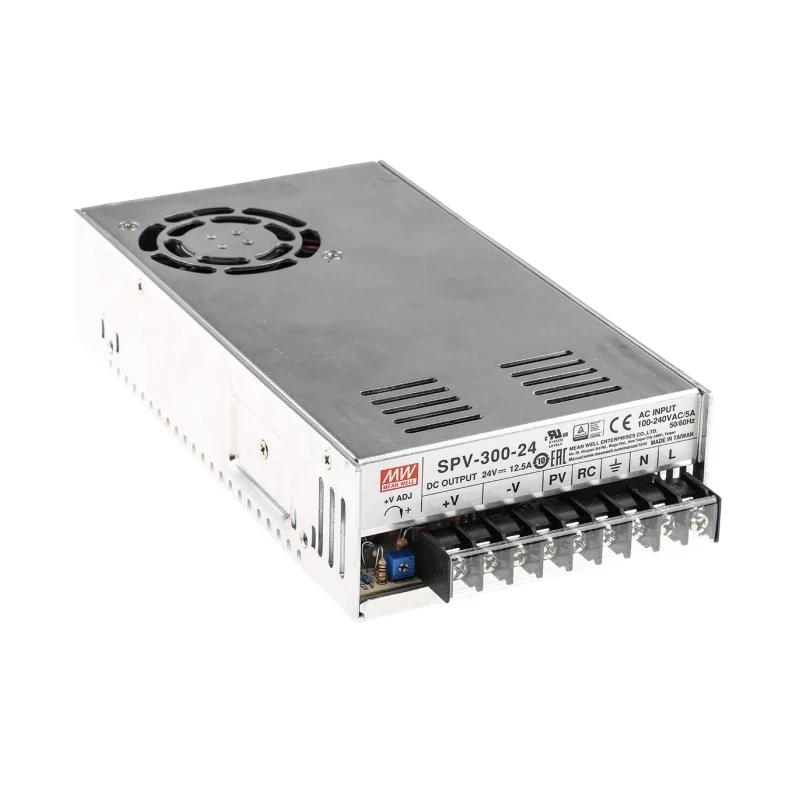

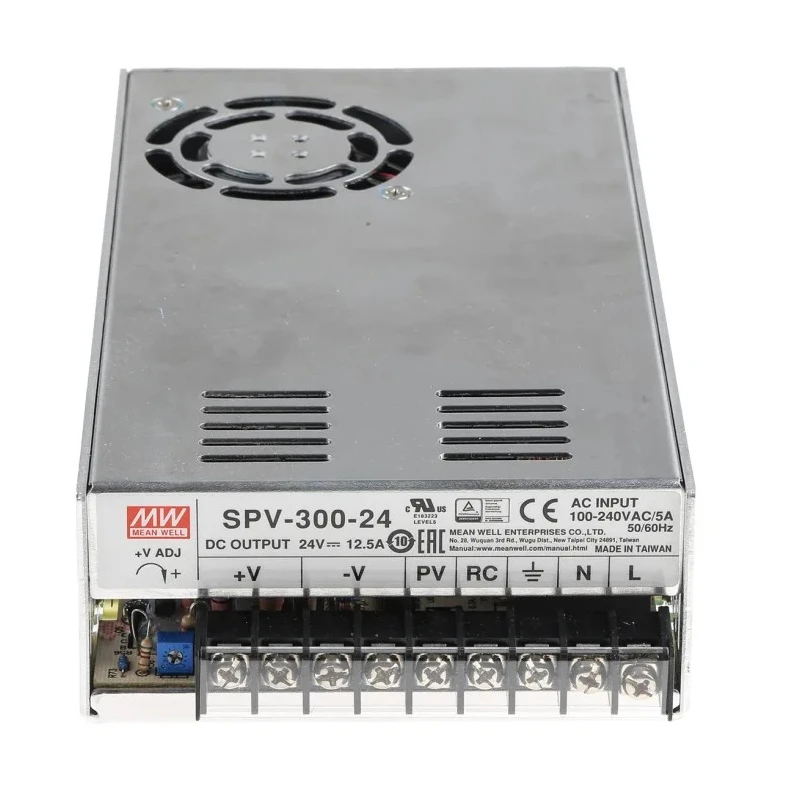

MEAN WELL Single Output 300W 24V DC Switching Power Supply, Universal Input 88-264VAC 124-370VDC, Chassis Mount SPV-300-24

MEAN WELL SPV-300-24 Switching Power Supply is a high-performance 300W single output embedded switch mode power supply designed for industrial and laboratory applications. It delivers a stable 24V DC output at 12.5A, with the flexibility to operate from a wide range of input voltages from 88VAC to 264VAC and 124VDC to 370VDC, making it ideal for global installation environments.

This model incorporates a built-in active Power Factor Correction (PFC) boasting a power factor greater than 0.95, ensuring efficient energy utilization. It is engineered with comprehensive protection features including short circuit, overload, overvoltage, and over temperature protections to safeguard connected equipment.

The power supply includes a built-in DC fan for forced air cooling with automatic fan speed control to ensure longevity of operation in demanding industrial environments. Its output voltage is programmable externally within 20% to 110% range using a control voltage between 1VDC and 5.5VDC, providing enhanced flexibility for dynamic applications.

Applications include LCD panel burn-in systems, IC testing equipment, factory automation, and mechanical and electrical industries. The switching frequency is fixed at 100 kHz supporting stable performance with an efficiency of up to 85%.

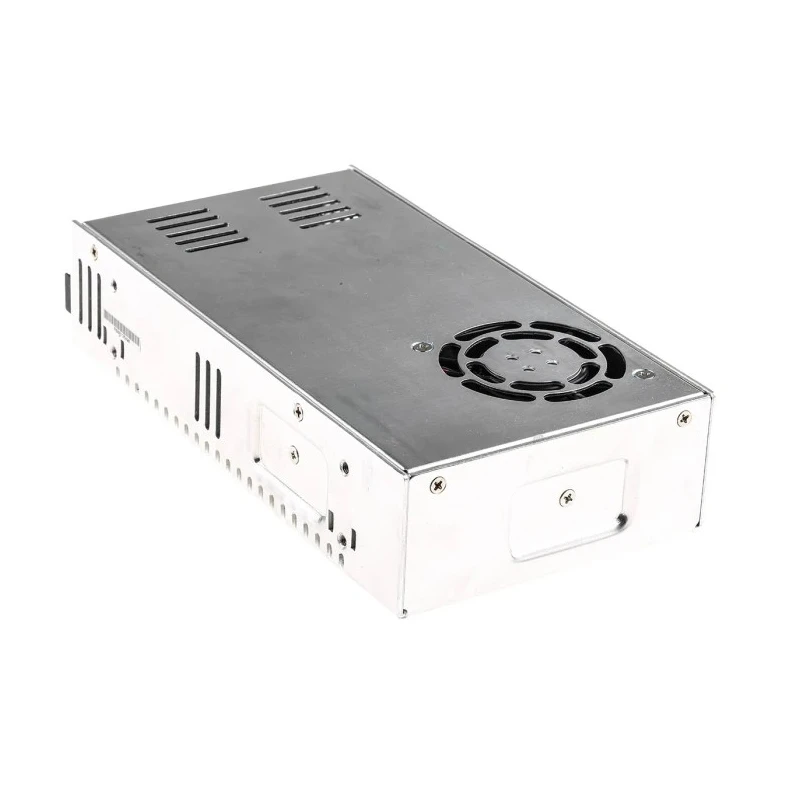

It features a chassis mount design with compact dimensions of 215mm length, 115mm width, and 50mm depth, weighing approximately 1.1 kg. The temperature operating range is from -20°C to 65°C, making it robust for industrial use.

Built-in active PFC with power factor >0.95. Short circuit, overload, overvoltage, and over temperature protections. Forced air cooling with fan speed control. Output voltage programmable from 20% to 110% by external control.

High efficiency up to 85% with fixed 100 kHz switching frequency. Wide input voltage range: 88-264VAC, 124-370VDC. Chassis mount form factor with compact size and 1.1 kg weight. Applicable for industrial automation, testing, and electrical equipment.

This product is manufactured in Taiwan, Province Of China, ensuring high-quality standards and compliance with international certifications including CSA C22.2 No. 62368-1, UL 62368-1, TUV BS EN/EN 62368-1, and others.
