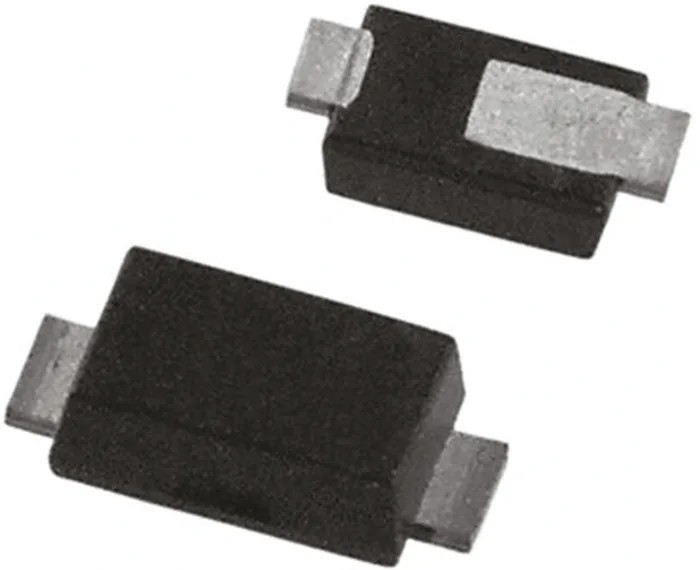

DiodesZetex 60 V 3 A 2-Pin Surface Mount Schottky Barrier Diode PowerDI123 SBR3U60P1-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 3mm |
| Length | 3mm |
| Model | SBR3U60P1-7 |
| Width | 1.93mm |
| Mount Type | Surface |
| Series | 3.0A SBR |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI123 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Barrier |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 650mV |
| DiodesZetex 60 V 3 A Diode Barrier 2-Pin PowerDI123 SBR3U60P1-7Brand | DiodesZetex |
Key Features
- Surface mount technology with PowerDI123 package type for efficient PCB integration.
- Maximum continuous forward current of 3 amperes ensures robust performance.
- Peak reverse repetitive voltage rating of 60 volts allows for reliable blocking capabilities.
- Low maximum forward voltage of 650 millivolts reduces power loss during operation.
- Wide operating temperature range from -65°C to 150°C suits harsh environments.
- Peak non-repetitive forward surge current of 80 amperes for transient load tolerance.
- Compliance with Automotive Standard AEC-Q101 and FBI approval standards.
- Compact dimensions with length and height of 3 mm, and width of 1.93 mm.
Product Description
DiodesZetex SBR3U60P1-7 is a high-performance 2-pin Schottky Barrier Diode designed for surface mount applications using the PowerDI123 package. It features a maximum continuous forward current of 3 A and a peak reverse voltage of 60 V, making it suitable for power rectification tasks in electronic circuits.
This diode displays a low forward voltage drop of 650 mV, enhancing efficiency by reducing conduction losses. It operates reliably across a wide temperature range from -65°C to 150°C, ensuring stability under demanding industrial and automotive conditions.
With its peak non-repetitive forward surge current capability of 80 A, the SBR3U60P1-7 handles transient current spikes effectively. The device meets industry standards including the automotive-grade AEC-Q101 certification, confirming its suitability for automotive and industrial electronics.
The compact PowerDI123 package measures 3 mm in length and height with a width of 1.93 mm, providing a small PCB footprint and ease of installation. Its two-pin design is ideal for barrier rectifier configurations requiring robust diode protection with minimal space requirements.
Common applications include power supplies, protection circuits, and automotive electronics requiring reliable rectification with low thermal dissipation. The diode's barrier technology offers improved thermal performance and long-term reliability compared to standard Schottky devices.
Surface mount package PowerDI123 enables compact design. Maximum forward current 3 A supports moderate power applications. Reverse voltage rating 60 V suitable for general-purpose rectification. Low forward voltage drop minimizes power loss.
Wide temperature tolerance from -65°C to 150°C for tough environments. Automotive AEC-Q101 standard ensures high-quality performance. Compact size eases PCB layout and assembly. Peak surge current ability handles transient conditions safely.
Explore more Schottky Diodes & Rectifiers from DiodesZetex and other premium brands on EnvMart for your industrial and commercial electronic needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the SBR3U60P1-7 is 3 amperes.
This model has a peak reverse repetitive voltage rating of 60 volts.
The maximum forward voltage drop for the SBR3U60P1-7 is 650 millivolts.
It operates reliably across a wide temperature range from -65°C to 150°C.
The diode is housed in a PowerDI123 package type, suitable for surface mount applications.
The peak non-repetitive forward surge current rating for this unit is 80 amperes.
The dimensions of this diode are 3 mm in length, 1.93 mm in width, and 3 mm in height.
Yes, it complies with the Automotive Standard AEC-Q101, confirming its suitability for automotive applications.
This model is a Schottky Barrier Diode, specifically designed for barrier rectification.
The peak reverse current for this diode is 100 microamperes (100μA).
Common applications include power supplies, protection circuits, and automotive electronics requiring reliable rectification.
The country of origin for this diode is India.
