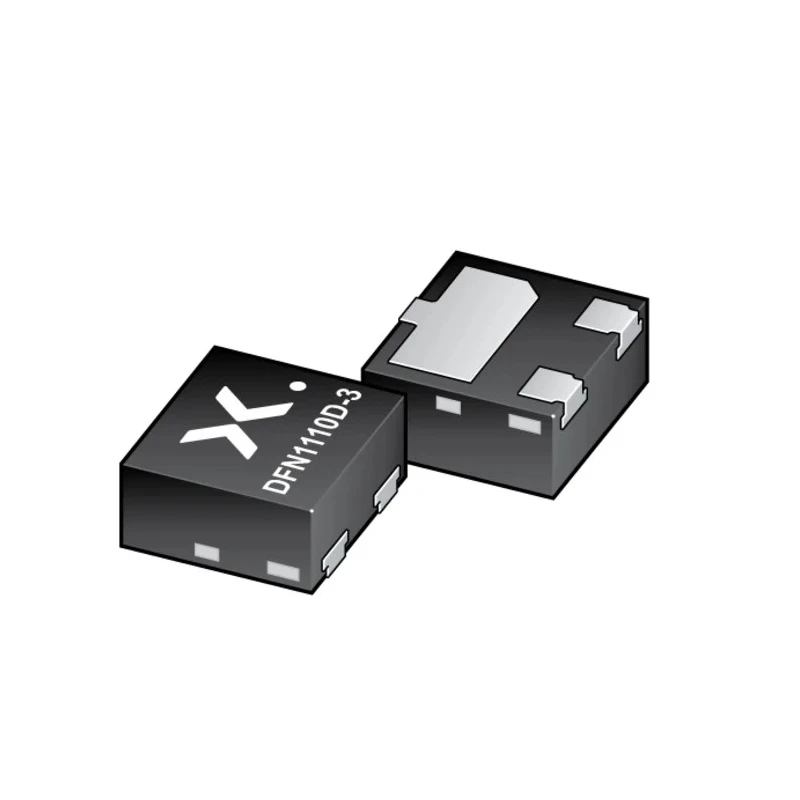

Nexperia 30 V 200 mA Schottky Barrier Schottky Diode Surface Mount DFN1110D-3 BAT54QB-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BAT54QB-QZ |
| Mount Type | Surface |
| Series | BAT54QB-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 380mV |
Key Features
- Encapsulated in ultra small DFN1110D-3 leadless SMD plastic package with side-wettable flanks.
- Low forward voltage of 380 mV reduces power losses during operation.
- Maximum continuous forward current of 200 mA and peak surge current of 200 mA ensures reliability.
- Operates in temperature range from -55°C to 150°C, suitable for automotive and industrial environments.
- Qualified according to AEC-Q101 automotive standard and RoHS compliant.
- Low capacitance design supports high-speed switching applications.
- Low package height of 0.5 mm supports compact PCB layouts and automated optical inspection.
- Single diode configuration suitable for rectification and protection circuits.
Product Description
Nexperia BAT54QB-QZ is a Schottky barrier diode designed for surface mount technology, packaged in the ultra compact DFN1110D-3 plastic package. It supports a maximum reverse repetitive voltage of 30 V and maximum continuous forward current of 200 mA, making it an ideal choice for low voltage and high-speed switching applications in electronic circuits.
The low forward voltage of only 380 mV helps minimize power dissipation during conduction, enhancing energy efficiency. The diode withstands a peak non-repetitive forward surge current of 200 mA, providing robustness in transient conditions.
Operating reliably across a wide temperature range from -55°C to 150°C, the BAT54QB-QZ diode is well suited for use in automotive electronics as well as industrial and commercial electronic designs. It meets the automotive industry’s AEC-Q101 standard and is RoHS compliant, ensuring safety and environmental standards are met.
The compact DFN1110D-3 (SOT8015, JEDEC MO340-BA) package features a low profile height of 0.5 mm and side-wettable flanks suitable for high volume automatic optical inspection (AOI) during PCB assembly. Its single diode configuration and low capacitance make it highly effective for rectification and protection in power management and signal processing circuits.
This Schottky diode is widely used in power supplies, voltage clamping, reverse polarity protection, and other semiconductor circuit applications in the electronics, automotive, and industrial manufacturing sectors.
Encapsulated in ultra small DFN1110D-3 leadless SMD plastic package with side-wettable flanks. Low forward voltage of 380 mV reduces power losses during operation. Maximum continuous forward current of 200 mA and peak surge current of 200 mA ensures reliability.
Operates in temperature range from -55°C to 150°C, suitable for automotive and industrial environments. Qualified according to AEC-Q101 automotive standard and RoHS compliant. Low capacitance design supports high-speed switching applications.
Low package height of 0.5 mm supports compact PCB layouts and automated optical inspection. Single diode configuration suitable for rectification and protection circuits. Explore more semiconductor components and Schottky diodes on EnvMart to find the ideal parts for your industrial and electronic projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage for this model is 30 V.
The forward voltage drop is 380 mV, which helps reduce power losses during operation.
It has a maximum continuous forward current rating of 200 mA.
This diode operates within a temperature range of -55°C to 150°C.
This model is packaged in a DFN1110D-3 leadless SMD plastic package.
It is qualified according to the AEC-Q101 automotive standard.
The peak non-repetitive forward surge current is 200 mA.
It features a single diode configuration suitable for rectification and protection circuits.
Yes, this model is RoHS compliant, meeting environmental safety standards.
This Schottky diode is suitable for applications in power supplies, voltage clamping, and reverse polarity protection.
It features a low capacitance design, which supports high-speed switching applications.
The height of the DFN1110D-3 package is 0.5 mm, allowing for compact PCB layouts.
