Molex PicoBlade Series PCB Header, 1.25mm Pitch, Through-Hole Mounting, 10 Contacts, Shrouded 53047-1010

Free Delivery in India | Lowest Global Shipping Charges

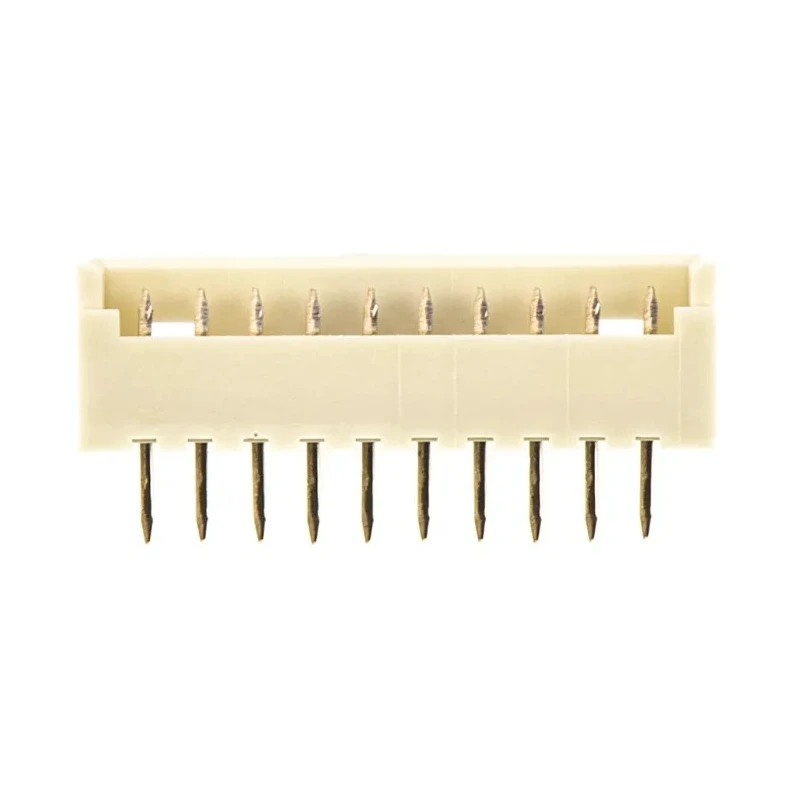

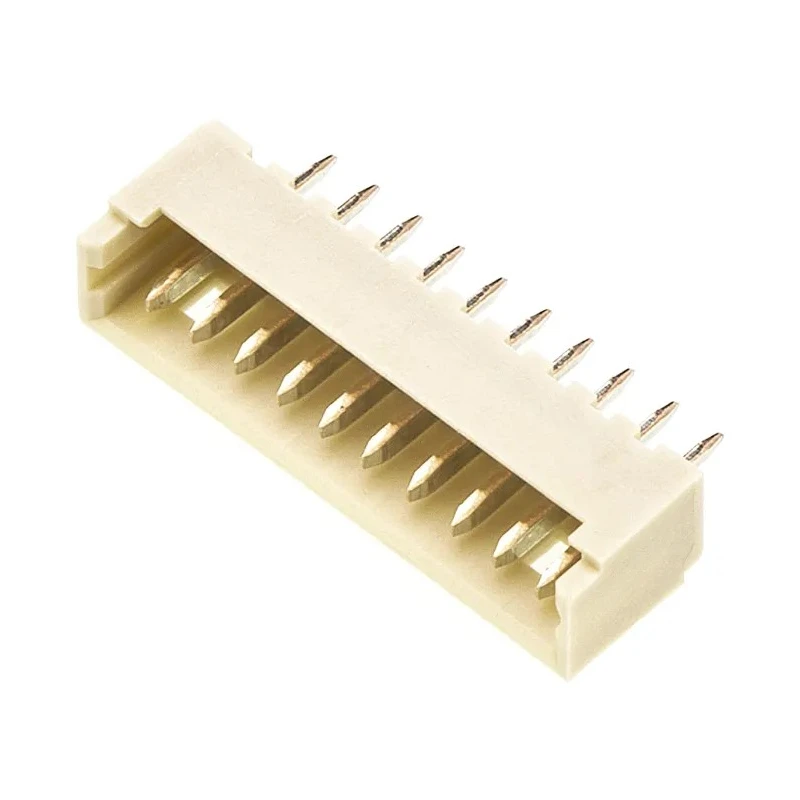

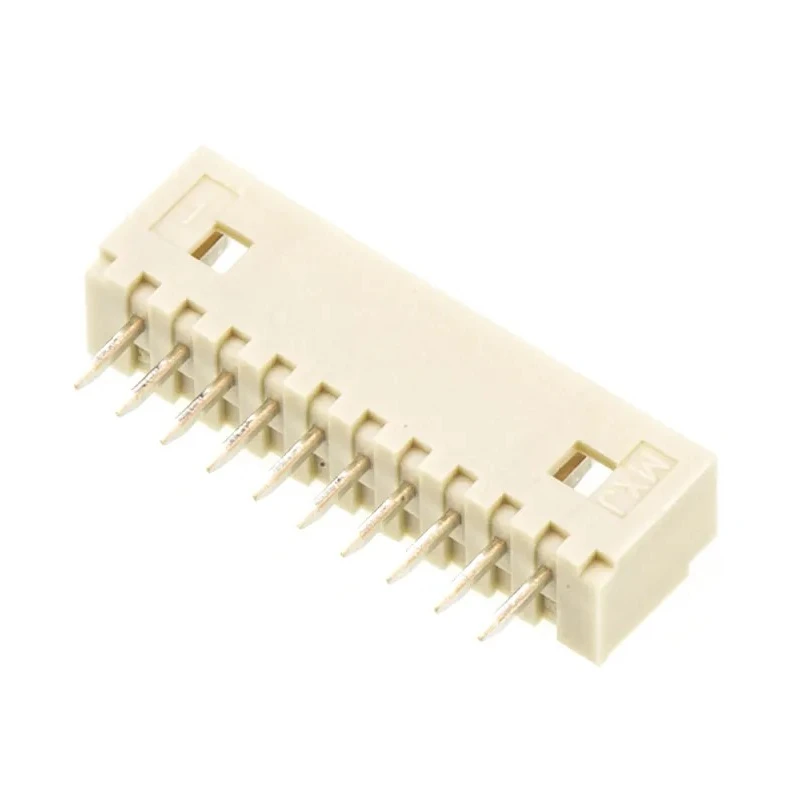

Molex PicoBlade Series PCB Header, 1.25mm Pitch, Through-Hole Mounting, 10 Contacts, Shrouded 53047-1010

Name: Molex PicoBlade Series PCB Header, 1.25mm Pitch, Through-Hole Mounting, 10 Contacts, Shrouded 53047-1010
Brand: Molex
SKU: 117368
Price: 0.73 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Japan
Voltage	125V
Brand	Molex
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	PicoBlade
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	1

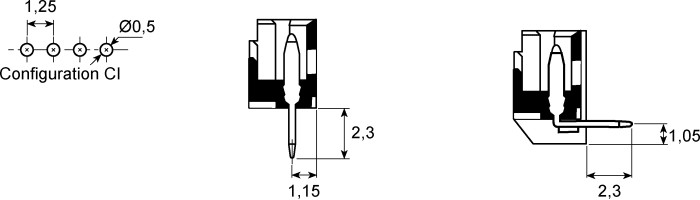

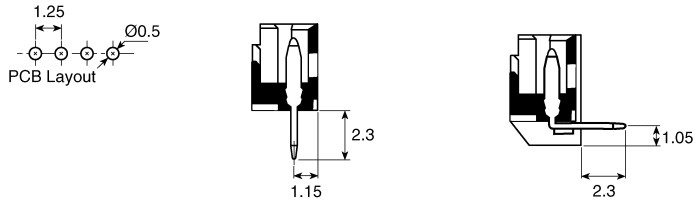

Pitch	1.25mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.3mm

Key Features

The connector features a straight body orientation for efficient installation.
It uses phosphor bronze contact material with tin plating ensuring excellent conductivity and durability.
Housing is made of nylon to provide protection and insulation.
Rated for 125 V voltage and 1 A current for a variety of electronic applications.
The shrouded design protects contacts against dust and debris.
Suitable for small electronic devices and compact PCB assemblies.
Tail pin length is 2.3 mm for secure solder termination.
Operates reliably between -40 °C and 85 °C temperatures.

Product Description

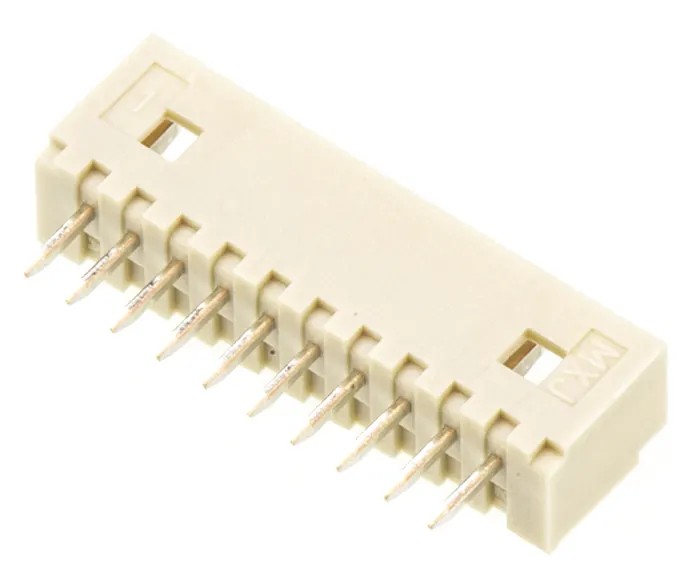

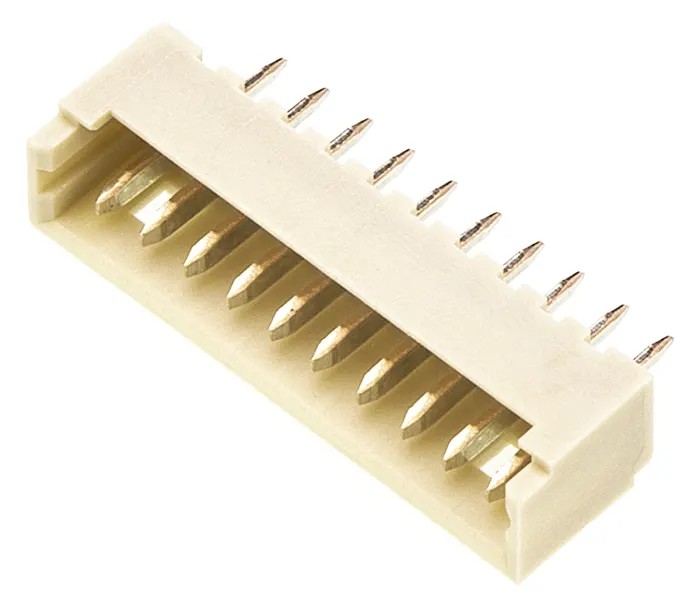

Molex 53047-1010 PCB Header is a high-quality component from the PicoBlade series, featuring a 1.25 mm pitch and ten male contacts arranged in a single row. This shrouded, straight-body connector is designed for through-hole mounting, providing a secure and reliable wire-to-board connection method.

The housing is constructed from durable nylon material, offering insulation and protection, while the phosphor bronze contacts plated with tin ensure excellent electrical conductivity and resistance to wear.

It is rated for a voltage of 125 V and a current of 1 A, making it suitable for a wide range of electronic and industrial applications, including automation systems, consumer electronics, instrumentation, and PCB assemblies requiring compact connectors.

The connector supports reliable solder termination with its 2.3 mm tail pin length. Operating temperature ranges from -40 °C to 85 °C, ensuring performance in both low and high-temperature environments.

The shrouded design protects contacts from dust and debris, contributing to long-term durability and connection integrity. The connector features a straight body orientation for easy PCB assembly. Phosphor bronze, tin-plated contacts provide longevity and reliable conductivity.

Nylon housing offers mechanical strength and insulation. Through-hole mounting ensures secure mechanical and electrical connections. Compatible with other Molex PicoBlade series connectors for modular system design. Rated for 125 V and 1 A, appropriate for many electronic devices.

This Molex PicoBlade Series PCB Header is manufactured in Japan, reflecting high manufacturing standards and quality control. Its compact design and shrouded contacts make it especially suited for electronics requiring space-efficient, robust connectors in industrial, laboratory, and manufacturing settings.
