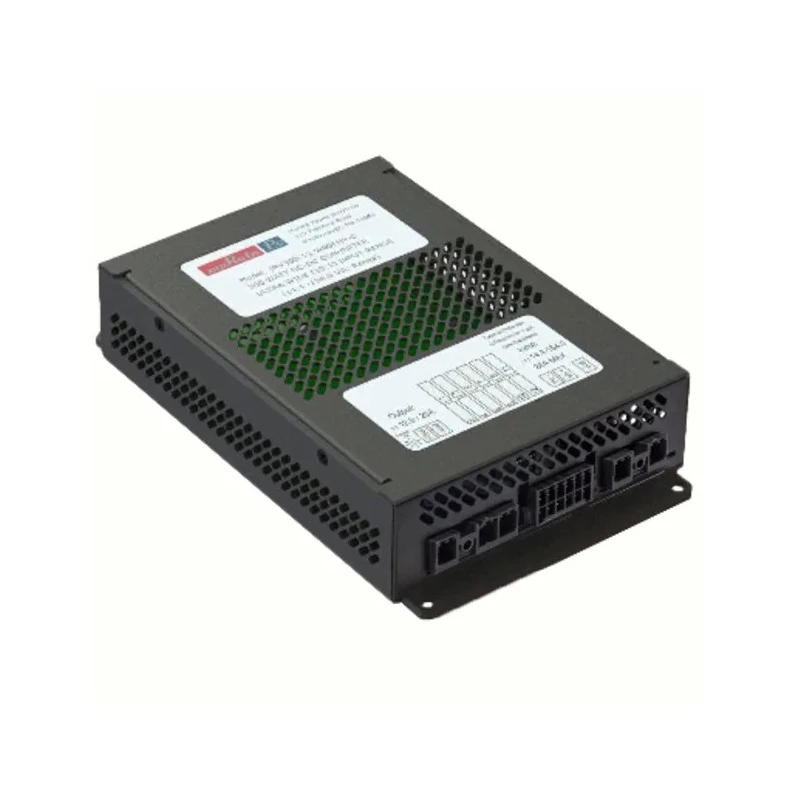

Murata IRV300 Isolated DC-DC Converter 24V DC Output 160V DC Max Input 12.5A 300W High Efficiency Chassis Mount IRV300
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata IRV300 Isolated DC-DC Converter, 24V dc/, 1 |
| Brand | Murata |
| Efficiency | 92% |
| Length | 184.6mm |
| Model | IRV300 |
| Depth | 39.7mm |
| Gross Weight | 900g |
| Width | 116mm |
| Mount Type | Chassis |
| Series | IRV300 |
| Maximum Operating Temperature | 70°C |
| Package Type | Chassis Mount |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 120mV Pk-Pk |
| Maximum Output Power | 300W |
| Maximum Input Voltage | 160V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 16.8V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 12.5A |
| Isolation Voltage | 4.25kV dc |
Key Features
- Designed for high efficiency up to 92% typical performance.
- Chassis mount package type for easy installation and secure mounting.
- Wide input voltage range from 16.8V DC minimum to 160V DC maximum.
- Suitable for railway applications meeting EN50155 and EN 50121-3-2 standards.
- Single output with low ripple and noise of 120mV peak-to-peak.
- Features extensive self-protection functions including over-temperature shutdown.
- Allows output voltage adjustment range up to +15% of nominal voltage.
- Operating temperature range from -40°C to 70°C for harsh environment tolerance.
Product Description
Murata IRV300 is a 300W isolated DC-DC converter featuring a chassis mount design that provides a reliable 24V DC output voltage. It supports a wide input voltage range with a minimum of 16.8V DC and maximum up to 160V DC, making it ideal for systems requiring wide voltage input tolerance.
This converter is tailored for railway and industrial applications, complying with rigorous standards such as EN50155 and EN 50121-3-2 to ensure consistent performance in demanding environments. It delivers a steady output current of 12.5A and includes a wide trim range for output voltage adjustment up to +15%.
The IRV300 series offers high efficiency up to 92%, low ripple and noise at 120mV peak-to-peak, and a robust isolation voltage of 4.25kV DC, ensuring stable and clean power supply.
Built with a chassis mount package, it measures 184.6mm in length, 116mm in width, and 39.7mm in depth, weighing approximately 900 grams. The converter is suitable for operating temperatures ranging from -40°C up to 70°C, providing flexibility for various industrial environments.
High efficiency up to 92% for energy saving operation. Robust chassis mounting for secure installation. Wide input voltage range from 16.8V to 160V DC. Complies with EN50155 and EN 50121-3-2 railway standards. Adjustable output voltage with a trim range of +15%.
Extensive self-protection features including over-temperature shutdown. Low ripple and noise output ensures clean power delivery. Compact size suitable for restrictive space applications.
This isolated DC-DC Converter is well suited for industrial, railway, and transportation power supply applications where reliability, efficiency, and safety are critical. Explore the full Murata IRV300 range and related components in the EnvMart electronics category for advanced power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 160V DC.
It provides a 24V DC output voltage with a maximum output current of 12.5A.
The efficiency rating of this converter is up to 92%.
This model measures 184.6mm in length, 116mm in width, and 39.7mm in depth.
The operating temperature range for the IRV300 is from -40°C to 70°C.
Yes, it includes extensive self-protection functions such as over-temperature shutdown.
It complies with EN50155 and EN 50121-3-2 standards, making it suitable for railway applications.
The ripple and noise output is specified at 120mV peak-to-peak.
This model features a chassis mount design for secure installation.
The isolation voltage for this converter is 4.25kV DC.
Yes, the output voltage can be adjusted up to +15% of the nominal voltage.
The gross weight of this model is approximately 900 grams.
