| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3mm |
| Model | NUP1301,215 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | NUP |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 20V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Series |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 100V |
| Maximum Reverse Stand-off Voltage Vwm | 80V |
| Peak Pulse Power Dissipation Pppm | 200W |
| Test Current It | 100μA |
| Maximum Peak Pulse Current Ippm | 11A |
| Maximum Reverse Leakage Current | 35μA |

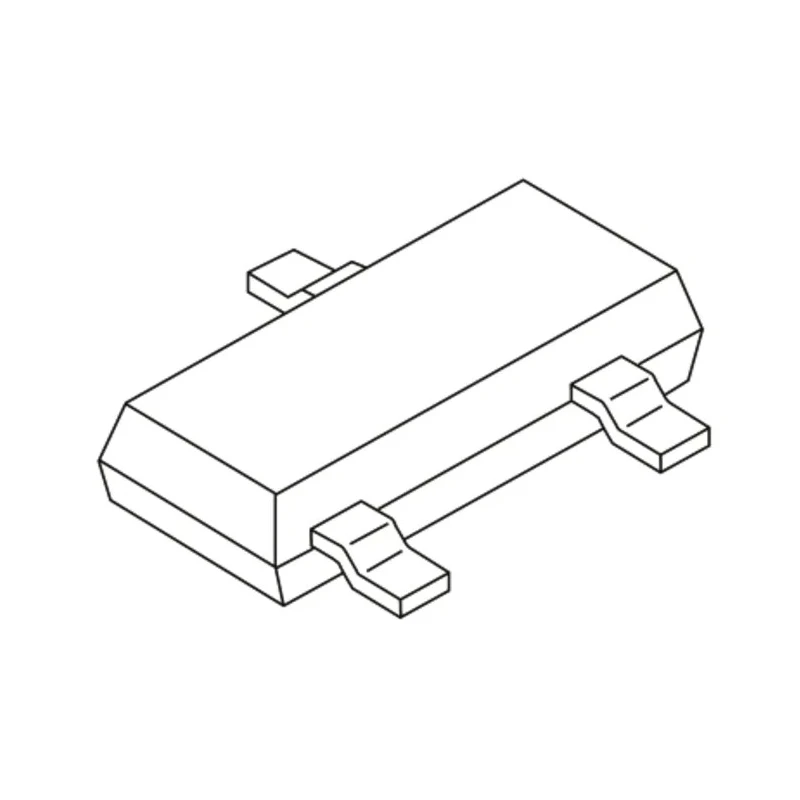

Nexperia NUP1301,215 2-element uni-directional ESD protection array offers ultra-low capacitance transient voltage suppression tailored for electronic surge protection.
This 3-pin SOT-23 device delivers a peak pulse power dissipation of 200W with a minimum breakdown voltage of 100V, providing reliable transient voltage suppression for sensitive signal lines. The diode series configuration ensures efficient uni-directional ESD protection.
Engineered for use in automotive and industrial applications, it meets the AEC-Q101 standard and operates over a broad temperature range from -55°C to 150°C. Its compact dimensions of 3mm x 1.4mm x 1.1mm allow easy surface mounting on modern PCBs.
The maximum reverse stand-off voltage of 80V and a clamping voltage of 20V allow it to protect devices from voltage spikes and electrostatic discharge events, while maintaining minimal leakage current of 35μA during normal operation.
Uni-directional diode configuration providing ESD protection. 200W peak pulse power capacity with 11A peak pulse current. Surface mount SOT-23 package supports compact assembly. Wide operating temperature range from -55°C to 150°C.
Automotive grade AEC-Q101 compliance ensures reliability. Compact package dimensions suitable for dense PCB layouts. Low leakage current minimizes power loss during normal conditions. Designed specifically for single signal line protection in rail-to-rail circuits.
This component is ideal for use in electronic, communication, automotive, and industrial equipment requiring robust ESD and transient voltage suppression to safeguard sensitive circuitry.
Explore more semiconductor and ESD protection solutions at EnvMart to optimize your electronic designs.
Explore more products in our ESD Protection Diode category.
