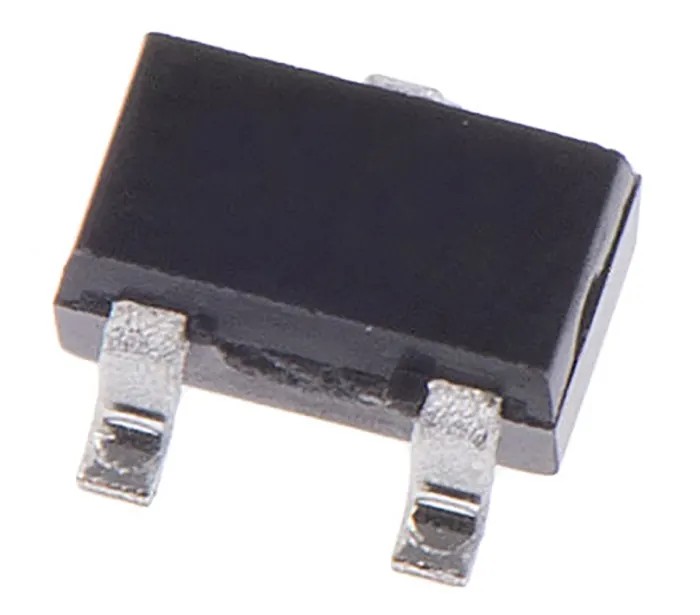

DiodesZetex 75 V 300 mA General Purpose 3-Pin SC-70 Diode BAW56W-7-F

DiodesZetex BAW56W-7-F is a high-quality general purpose diode packaged in a 3-pin SC-70 surface mount package. It has a maximum continuous forward current rating of 300 mA and a peak reverse repetitive voltage of 75 V, making it suitable for various semiconductor and electronic applications requiring efficient switching.

This diode provides a fast peak reverse recovery time of 4 nanoseconds, optimizing performance in high-speed switching circuits. It operates reliably between temperatures of -65°C and 150°C, ensuring robust operation in industrial, automotive, and commercial environments.

The device features a maximum forward voltage of 1.25 V to reduce conduction losses. Designed to meet the automotive standard AEC-Q101, it guarantees stringent quality and reliability for electronic component manufacturers.

Physically compact with dimensions of 2.2 mm in length, 1.35 mm width, and 1 mm height, the diode enables space-saving, efficient PCB designs for use in industrial machinery, automotive electronic controls, communication devices, and consumer electronics.

The common anode diode configuration and a peak non-repetitive forward surge current rating of 2 A allow for resilient performance in transient conditions and versatile circuit integrations.

Typical applications include power rectification, signal switching, and general-purpose semiconductor circuit protection, particularly where fast recovery and reliable switching are needed.

Set your designs up for success with the DiodesZetex BAW56W-7-F diode offering robust semiconductor performance across a broad set of industrial and commercial electronic requirements.

Explore our extensive collections of semiconductor and diode components at EnvMart for quality assured electronic parts and components. This diode features a maximum continuous forward current of 300 mA providing reliable performance.

It has a peak reverse repetitive voltage rating of 75 V, suitable for typical semiconductor use cases. The device has a fast peak reverse recovery time of 4 ns enhancing switching speed. It operates over a wide temperature range from -65°C to 150°C for robust industrial use.

The diode has a maximum forward voltage of 1.25 V ensuring efficient conduction. Complies with automotive standard AEC-Q101 ensuring quality and reliability standards. Its compact size with length 2.2 mm, width 1.35 mm, and height 1 mm facilitates PCB space-saving designs.

The common anode diode configuration allows versatile use in electronic circuits. Peak non-repetitive forward surge current rating of 2 A offers durability under transient conditions.

Explore more products in our Schottky Diodes & Rectifiers category.
