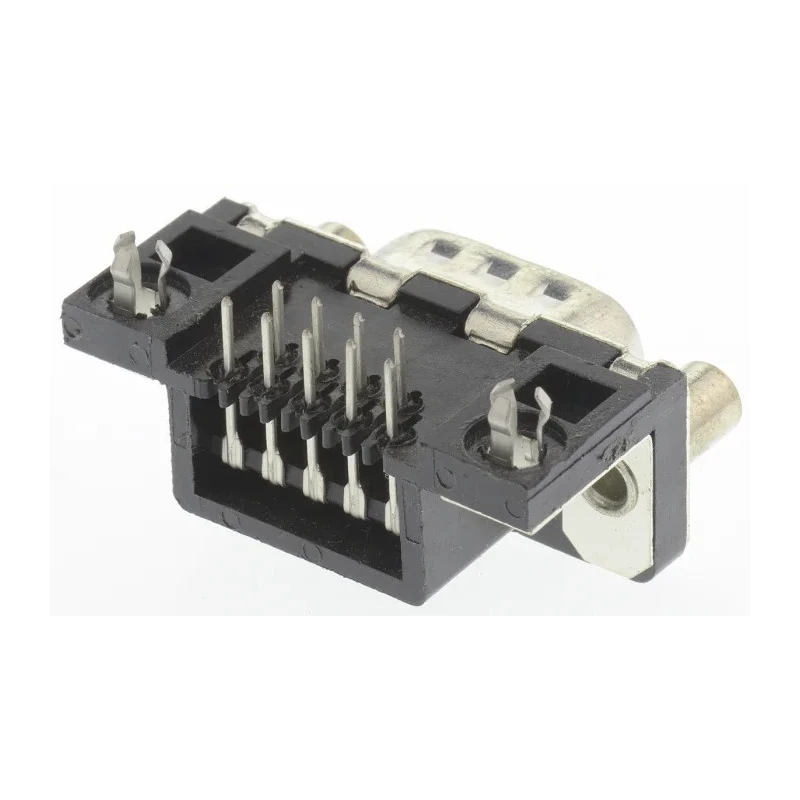

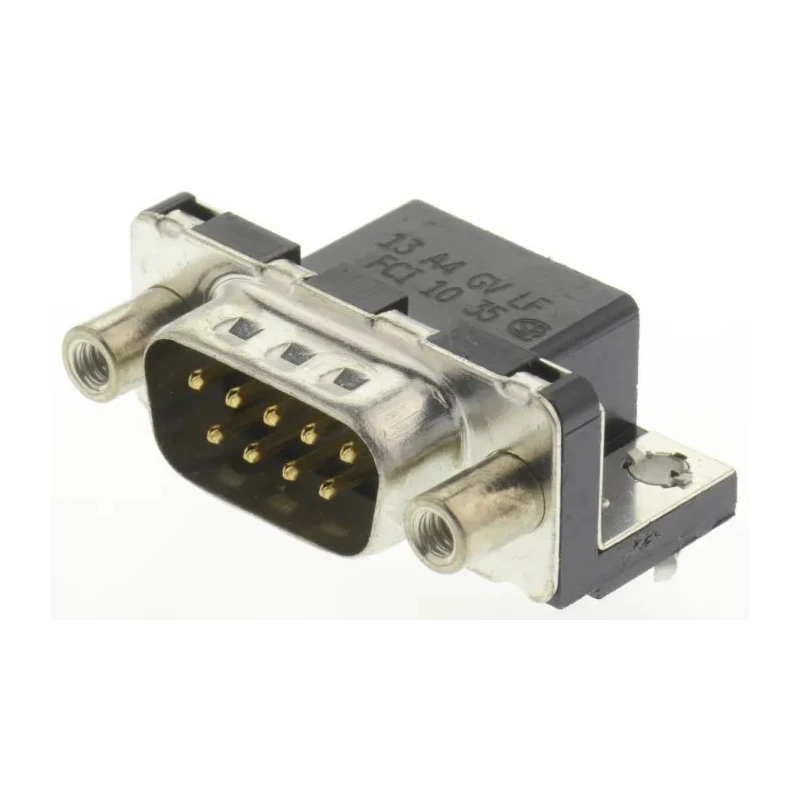

Amphenol Communications Solutions Delta D 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with D09P13A4GV00LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300.0V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 5A |
| Model | D09P13A4GV00LF |
| Mount Type | Through Hole |
| Series | Delta D |
| Mounting Hardware | #4-40 UNC Screw |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
| D-Sub Shell Size | E |
| FCI CONNECTORS 9 Way Right Angle PCB D-sub Connector Plug, 2.74mm PitchBrand | RS PRO |
Key Features
- Right angle orientation ensures efficient PCB mounting.
- Gold over nickel contact plating provides excellent corrosion resistance.
- Supports a current rating of 5A for robust electrical applications.
- Mount type is through hole with #4-40 UNC screw mounting hardware.
- Operating temperature range from -55°C to 125°C for versatile use environments.
- Suitable for military, industrial, and commercial applications.
- 2.74 mm pitch with male contact gender and solder termination type.
- Standard D type connector shell size E designed for PCB connections.
Product Description
Amphenol Communications Solutions D09P13A4GV00LF 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector is engineered for reliable performance in electronic systems requiring sturdy and stable connections. It features a right angle orientation suitable for compact PCB assembly and mounting.
The connector is built with gold over nickel plating on contacts, offering superior corrosion resistance and reliable electrical conductivity over extended use. Designed for a 5A current rating and a maximum voltage of 300 V, it meets demanding industrial and commercial standards.
Its body uses the D-sub shell size E standard, ensuring compatibility with common electronic interfaces and systems. Mounting is accomplished through hole with #4-40 UNC screw hardware, facilitating secure PCB installation and mechanical stability.
Operating temperature ranges from -55°C to 125°C, making it adaptable to harsh environments typical in military and industrial applications. The male contact gender and solder termination enable robust and permanent connections.
Right angle orientation supports efficient PCB layout. Gold over nickel plating enhances durability and conductivity. 5A current rating for demanding electrical loads. Standard D-sub shell size E ensures wide compatibility.
Through hole mount with #4-40 UNC screws for sturdy assembly. Wide operating temperature range for diverse environments. Male contact gender with solder termination for reliable connection. 2.74 mm pitch spacing supports precise circuit design.
Suitable for military, industrial, and commercial electronics.
This connector is ideal for use in industrial machinery, computing hardware, military communication equipment, and commercial electronic devices. Its robust construction and precise specifications support reliable signal transmission and mechanical integrity.
Explore more industrial-grade connectors at EnvMart’s comprehensive D-Sub Connector category for diverse applications across electronic and communication systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A, making it suitable for robust electrical applications.
The operating temperature range for this connector is from -55°C to 125°C, allowing for versatile use in various environments.
It features a through hole mount with #4-40 UNC screw mounting hardware for secure PCB installation.
The pitch size of this connector is 2.74 mm, which supports precise circuit design.
The contacts are plated with gold over nickel, providing excellent corrosion resistance and reliable conductivity.
This connector has a male contact gender, suitable for solder termination type connections.
It is suitable for military, industrial, and commercial applications, including industrial machinery and communication equipment.
The maximum voltage rating for this model is 300V, making it suitable for various electronic systems.
This connector uses the standard D-sub shell size E, ensuring compatibility with common electronic interfaces.
This model belongs to the Delta D series, which is designed for reliable performance in electronic systems.
The country of origin for this connector is India.
The termination type for this model is solder, which allows for robust and permanent connections.
