TE Connectivity AMPMODU MOD II Series Right Angle Through Hole PCB Header 24 Contacts 2.54 mm Pitch 2 Row Shrouded 280522-2

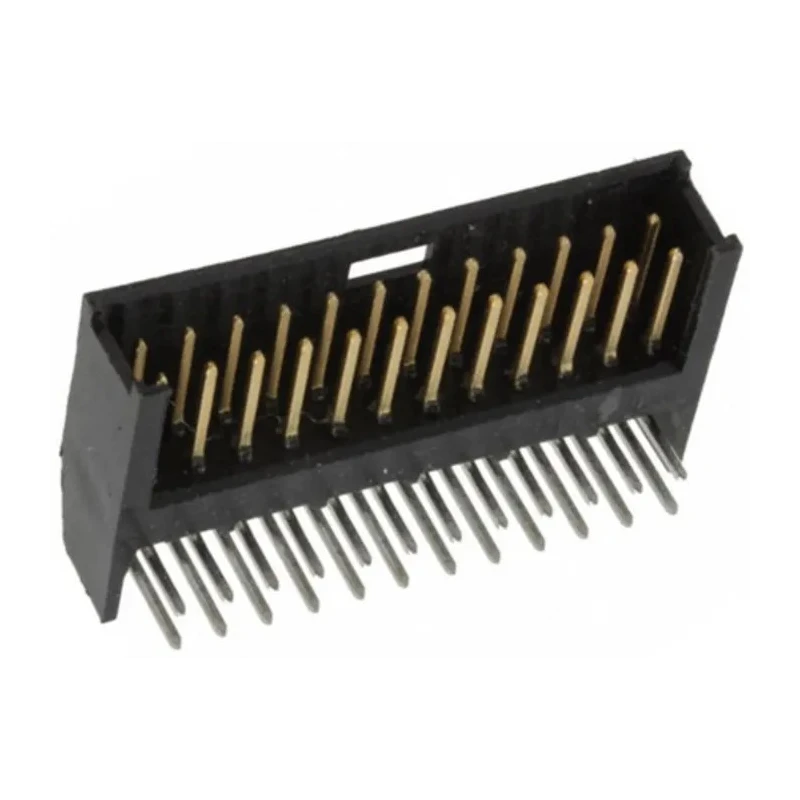

TE Connectivity 280522-2 AMPMODU MOD II Series Right Angle Through Hole PCB Header features 24 male contacts distributed across 2 rows with a standard 2.54 mm pitch spacing. This shrouded header is housed in durable thermoplastic material providing three-sided pin protection and ensures secure, polarized mating for reliable mechanical and electrical performance. The header uses gold-plated brass contacts and a solder termination type with a tail pin length of 3.5 mm designed for insertion into PCB through holes.

This PCB header is rated for 3A current and withstands voltages up to 750V. It operates efficiently in environments ranging from -65°C to 105°C, making it suitable for harsh industrial and automotive applications. The positive detent locking mechanism adds connection stability, preventing unintended disconnects.

The AMPMODU interconnect system is well suited for various industrial uses including automotive controls, telecommunications, industrial testing equipment, medical instruments, storage devices, computer systems, and consumer appliances. Its compact and robust design provides versatility in board-to-board and wire-to-board connector systems, enhancing device reliability and ease of assembly.

This through hole mounted header combines secure mechanical locking, polarization to avoid mismatching, and compatibility with standard automated assembly processes. The shrouded design not only protects pins from damage but also enhances electrical safety by minimizing accidental shorts or damage during handling.

The housing material is thermoplastic offering mechanical strength and electrical insulation. Gold plating over brass contacts ensures optimal conductivity and corrosion resistance. The connector is designed for right angle orientation enabling compact printed circuit board layouts.

Operating temperature range from -65°C to 105°C supports wide environment adaptability. This 2-row, 24-contact header facilitates efficient circuit interconnections in multi-function devices. Solder termination and 3.5 mm tail length supports reliable PCB through hole insertion and mounting.

The design includes a positive locking detent window for secure mating with the receptacle connector.

Choose this TE Connectivity AMPMODU MOD II Series PCB header for high reliability, ease of use, and compatibility with industrial and commercial electronic assemblies. Explore more PCB connectors, headers, and interconnect system components for enhanced electronic device solutions at EnvMart.
