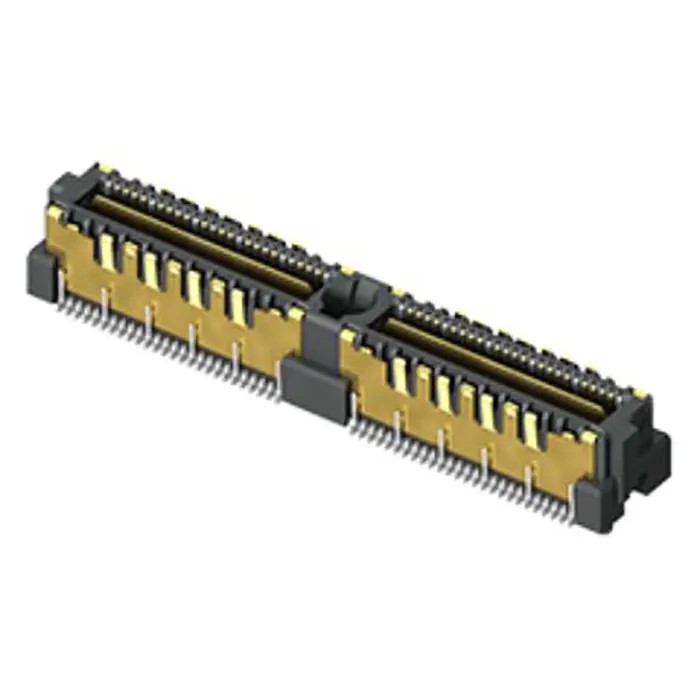

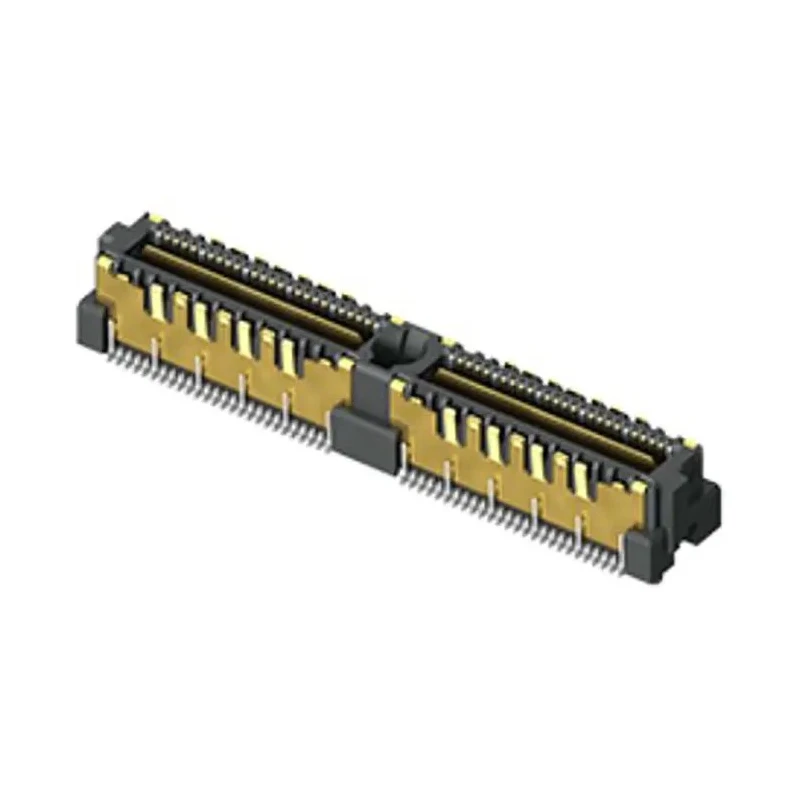

Samtec QMSS Series Straight Surface Mount PCB Header, 104 Contacts, 0.64 mm Pitch, 2 Rows, Shrouded QMSS-052-06.75-L-D-A

Samtec QMSS-052-06.75-L-D-A PCB Header is a high-quality surface mount connector designed for electronic components requiring board-to-board interconnection. It features 104 male contacts arranged in two rows, each spaced at a 0.64 mm pitch, providing a compact yet efficient interface.

The connector housing is constructed from liquid crystal polymer, offering excellent mechanical strength and temperature resistance. Contacts are made from phosphor bronze with gold plating to ensure superior conductivity and corrosion resistance. It supports a current rating of 2.6 amperes and voltage up to 300 volts, suitable for a wide range of electronic applications.

This PCB Header is shrouded, adding mechanical protection and alignment assistance during assembly, and is oriented straight for ease of surface mounting using solder termination.

Rated for operation in harsh environments with temperatures ranging from -55°C to 125°C, it meets demanding industrial and commercial electronic requirements. This connector is commonly used in industrial control systems, consumer electronics, telecommunications equipment, and other applications needing reliable, high-density board-to-board connections.

Features a liquid crystal polymer housing for durability. Phosphor bronze contacts plated with gold ensure reliable conductivity. Designed for surface mounting with a straight orientation. Rated for 2.6A current and 300V voltage for robust electrical performance.

Operates effectively within a temperature range from -55°C to 125°C. Suitable for board-to-board connector systems in electronic assemblies. Termination is solder type for secure PCB integration. Male contact gender and row pitch of 0.64 mm facilitate precise mating.

EnvMart offers this component to serve customers engaged in design, production, and repair of electronic devices.
