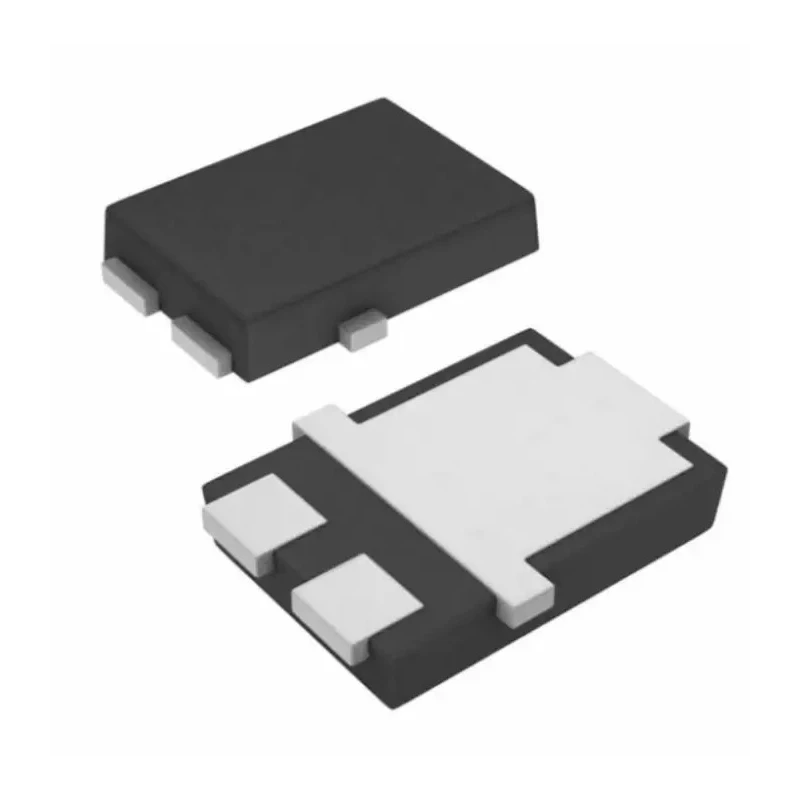

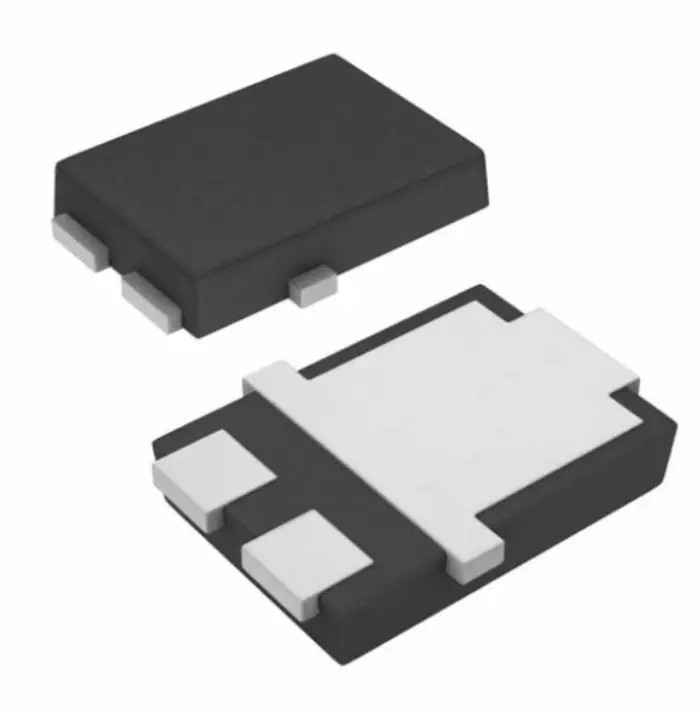

Vishay 100 V 12 A Schottky Diode 3-Pin Surface Mount TO-277 V12P10-M3/86A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 4.75mm |
| Model | V12P10-M3/86A |
| Width | 6.15mm |
| Mount Type | Surface |
| Series | V12 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 250μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 0.7V |
| Vishay 100 V 12 A Diode Schottky 3-Pin TO-277 V12P10-M3/86ABrand | Vishay |
Key Features
- Features patented Trench MOS Barrier Schottky structure for improved efficiency.
- Provides fast switching speeds and low forward voltage drop.
- Maximum forward voltage is 0.7 V at rated conditions.
- Operating temperature range from -40°C to 150°C ensures robust performance.
- Peak reverse repetitive voltage of 100 V and peak non-repetitive forward surge current of 200 A.
- Conforms to automotive standard AEC-Q101.
- Ideal for AC/DC switched mode power supplies and DC/DC converters.
- Single diode configuration with 3 pins for surface mounting applications.
Product Description
Vishay V12P10-M3/86A is a high-performance Schottky diode designed for surface mounting in a TO-277 package. It operates at a maximum continuous forward current of 12 A and a peak reverse repetitive voltage of 100 V, making it suitable for robust electronic circuit designs.
Utilizing a patented Trench MOS Barrier Schottky (TMBS) technology, this diode offers improved switching speed and reduced forward voltage drop compared to traditional planar Schottky diodes. The TMBS structure minimizes minority carrier injection, reducing stored charges and enhancing efficiency, especially at operating voltages of 45 V and above.
With a compact size (4.75 mm length, 6.15 mm width, and 1.2 mm height) and surface mount capability, the V12P10-M3/86A diode is ideal for space-constrained applications in power supplies, AC/DC switched mode power supplies, and DC/DC converters. Its automotive-grade qualification per AEC-Q101 certifies its reliability in demanding environments.
The diode supports a wide temperature range from -40°C to 150°C, allowing operation in harsh industrial, automotive, and consumer electronics contexts. The maximum forward voltage is specified at 0.7 V, and the device can handle peak forward surge currents up to 200 A, ensuring durability under transient load conditions.
This product is manufactured in China by Vishay, a reputable semiconductor brand known for quality and innovation. Features patented Trench MOS Barrier Schottky structure for improved efficiency. Fast switching speed reduces power losses in power electronics.
Compact TO-277 surface mount package dimensions. Wide operating temperature range ensures reliability. Automotive standard AEC-Q101 qualification. Single diode configuration with three pins for easy PCB integration. Peak reverse current of 250 µA ensures low leakage.
Suitable for industrial, automotive, and power conversion applications. Explore the Electronics & Electricals category at EnvMart for additional semiconductor devices and Schottky diodes from Vishay and other leading manufacturers.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay V12P10-M3/86A Schottky diode is 12 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop for this diode is 0.7 V at rated conditions.
The operating temperature range of the V12P10-M3/86A is from -40°C to 150°C.
The diode is packaged in a TO-277 type, suitable for surface mounting applications.
It can handle a peak non-repetitive forward surge current of 200 A.
This Schottky diode has a pin count of 3.
The V12P10-M3/86A conforms to the automotive standard AEC-Q101.
The peak reverse current for this diode is specified at 250 μA.
The dimensions of the diode are 4.75 mm in length, 6.15 mm in width, and 1.2 mm in height.
This model uses a single diode configuration with three pins for easy PCB integration.
It is suitable for applications in AC/DC switched mode power supplies and DC/DC converters.
