Nexperia Digital Transistor 100 mA NPN 50 V 6-Pin UMT PUMH9,115

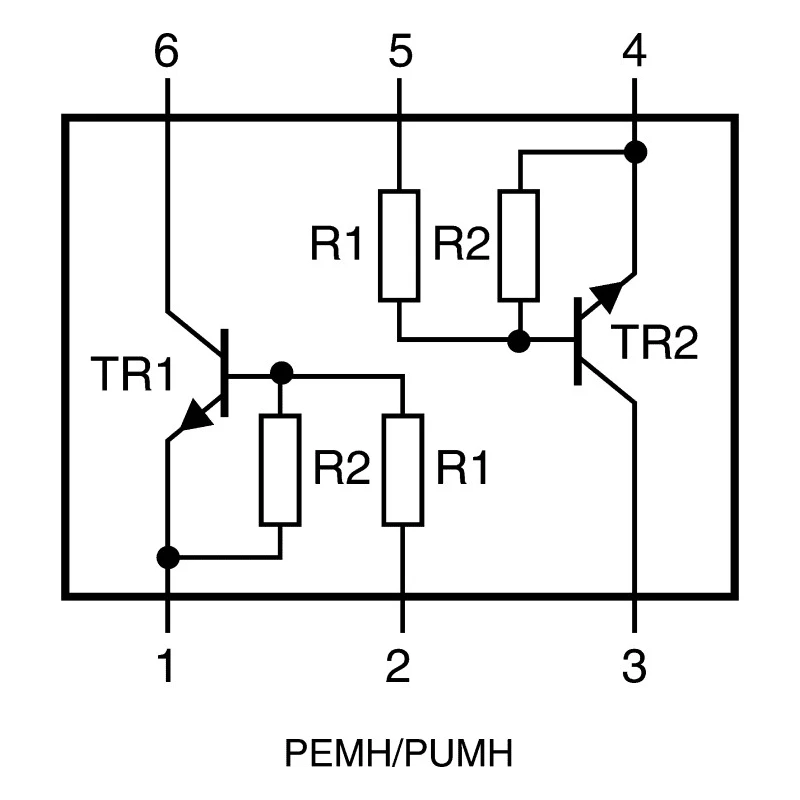

Nexperia PUMH9,115 Digital Transistor 100 mA NPN 50 V 6-Pin UMT is a surface mount bipolar transistor featuring integrated resistors for easy drive from digital sources. It supports a maximum DC collector current of 100 mA and can withstand collector-emitter voltages up to 50 V.

This transistor offers isolated NPN configuration with a minimum DC current gain of 100, making it suitable for reliable switching and amplification in low power electronic circuits.

With a maximum power dissipation rating of 200 mW and maximum operating temperature up to 150°C, it performs well in demanding industrial and automotive environments. The device operates efficiently up to 230 MHz frequency.

The compact UMT package with 6 pins (length 2.2 mm, width 1.35 mm, height 1.1 mm) allows for surface mounting on densely populated PCBs, helping reduce board space without compromising functionality.

Maximum DC collector current of 100 mA ensures reliable switching performance. Maximum collector-emitter voltage rating of 50 V suitable for various low power electronic circuits. Package type is UMT with 6 pins designed for surface mount technology.

Isolated transistor configuration for enhanced signal integrity. Maximum power dissipation is 200 mW for efficient thermal management. Minimum DC current gain (hFE) of 100 supports efficient signal amplification. Operating temperature range from 0°C to 150°C for stable operation.

Maximum transition frequency of 230 MHz supports high-speed switching. Compact dimensions allow space-saving PCB design. Meets AEC-Q101 automotive standard for robust vehicle applications.

Commonly used in industrial electronics, automotive circuits, power management systems, and digital signal applications, this transistor provides a reliable component choice for engineers and technicians.
