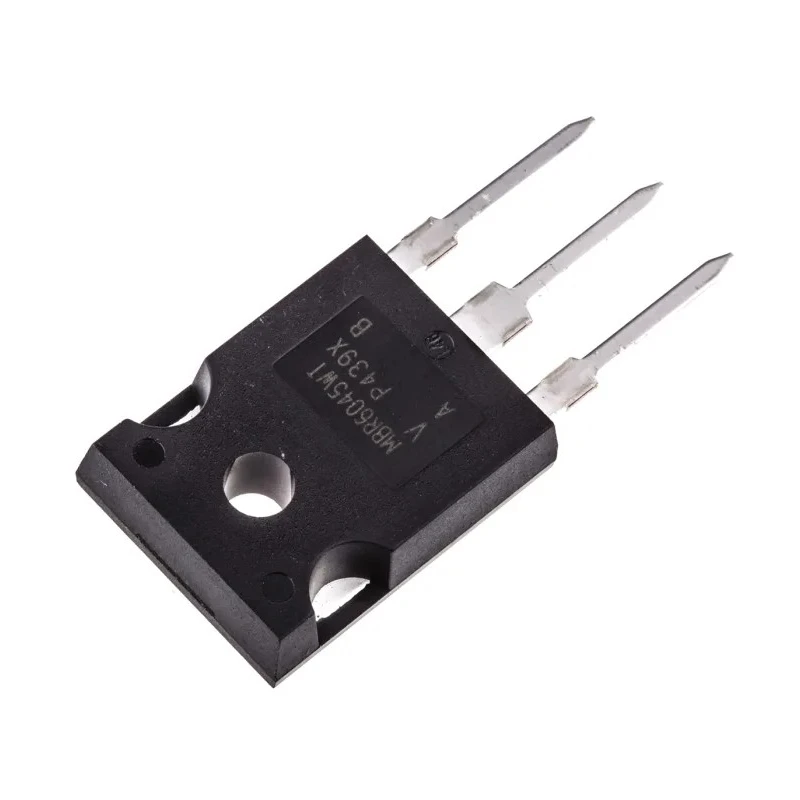

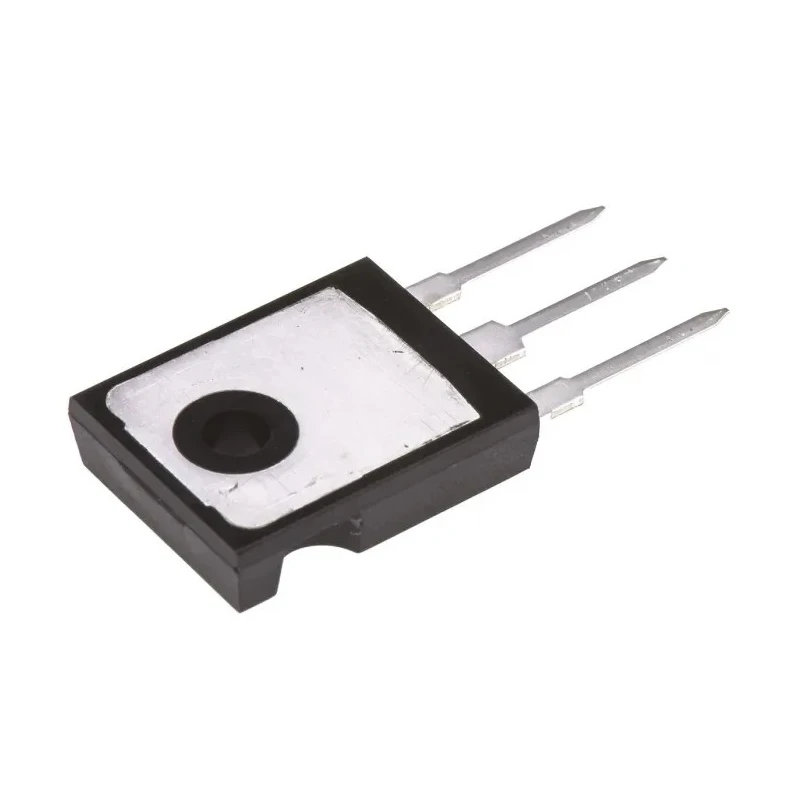

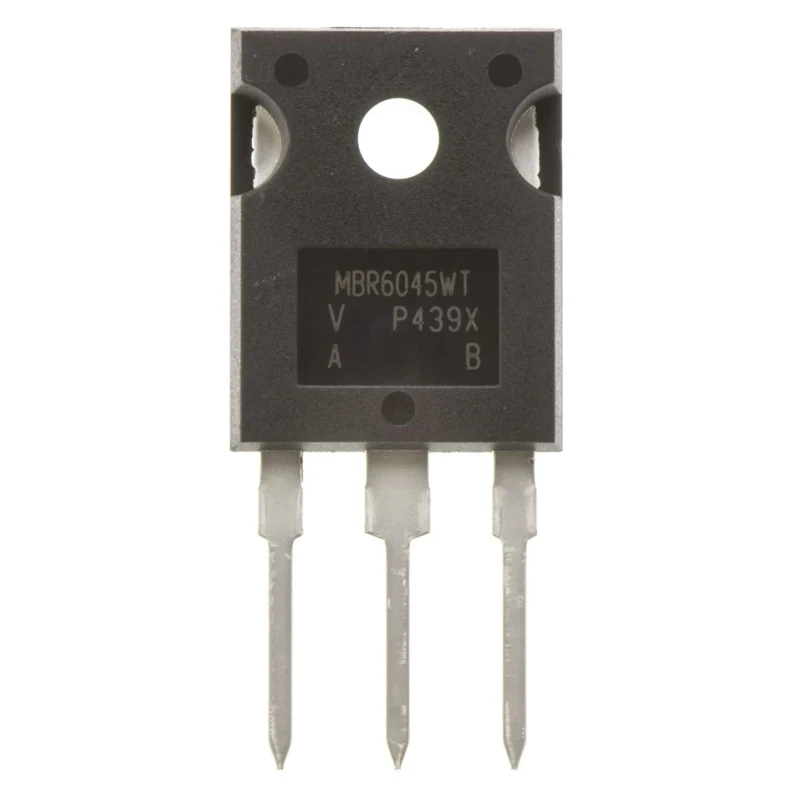

Vishay 45 V 60 A Schottky Diode 3-Pin TO-247AC VS-MBR6045WT-N3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.87mm |
| Model | VS-MBR6045WT-N3 |
| Width | 5.31mm |
| Mount Type | Through Hole |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.9kA |
| Maximum Forward Voltage Vf | 620mV |
| Schottky barrier diode,MBR6045WT 60A 45VBrand | Vishay |
| Vishay 45V 30A, Dual Schottky Diode, 3-Pin MBR6045WTBrand | Vishay |
Key Features
- High-performance Schottky diode suitable for fast switching applications.
- Common cathode diode configuration ensuring efficient current flow control.
- Maximum forward voltage of 620 mV minimizing power loss during conduction.
- Wide operating temperature range from -55°C to 150°C for reliable operation.
- Peak non-repetitive forward surge current capability of 2.9 kA for transient conditions.
- Robust through-hole mount type ensuring secure PCB installation.
- No automotive or industry-specific certifications specified.
Product Description
Vishay VS-MBR6045WT-N3 is a high-performance Schottky diode designed for applications requiring fast switching and low power dissipation. Rated for 45 V peak reverse repetitive voltage and 60 A maximum continuous forward current, it is housed in a 3-pin TO-247AC package ensuring robust mechanical and electrical reliability suitable for industrial, commercial, and electronic circuit applications.
Featuring a common cathode diode configuration, this diode exhibits a low forward voltage drop of 620 mV, which helps reduce conduction losses and improve energy efficiency in power conversion systems. It is capable of handling peak non-repetitive forward surge current surges up to 2.9 kA, making it resilient against transient events.
The diode operates reliably over a broad temperature range from -55°C to 150°C, making it suitable for harsh environments and demanding operating conditions. Its compact physical dimensions (15.87 mm length, 5.31 mm width, and 20.7 mm height) allow for efficient PCB layout in power electronic designs.
As a through-hole mounted device, the VS-MBR6045WT-N3 offers straightforward assembly onto printed circuit boards, making it ideal for power supplies, inverters, DC-DC converters, and other power management solutions in the electronics, industrial, and automation sectors.
High-performance Schottky diode with fast switching capabilities. Low forward voltage drop to minimize power losses. Common cathode configuration for efficient current handling. High surge current rating for transient robustness.
Wide operating temperature range for versatile deployment. Compact TO-247AC package for easy mounting. Suitable for power electronics and industrial automation applications. Reliable semiconductor component from Vishay Semiconductor portfolio.
Explore more electronic components including diodes and rectifiers at EnvMart to support your industrial and commercial electronics projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 60 A.
This diode has a peak reverse repetitive voltage rating of 45 V.
The maximum forward voltage drop for this diode is 620 mV.
It operates reliably over a temperature range from -55°C to 150°C.
This model uses a through-hole mount type for secure PCB installation.
The diode can handle a peak non-repetitive forward surge current of 2.9 kA.
The dimensions of the TO-247AC package are 15.87 mm in length, 5.31 mm in width, and 20.7 mm in height.
It features a common cathode diode configuration.
The peak reverse current for this model is 1 mA.
This diode is suitable for power supplies, inverters, DC-DC converters, and other power management solutions.
This model belongs to the VSX series of Schottky diodes.
The diode is manufactured in India.
