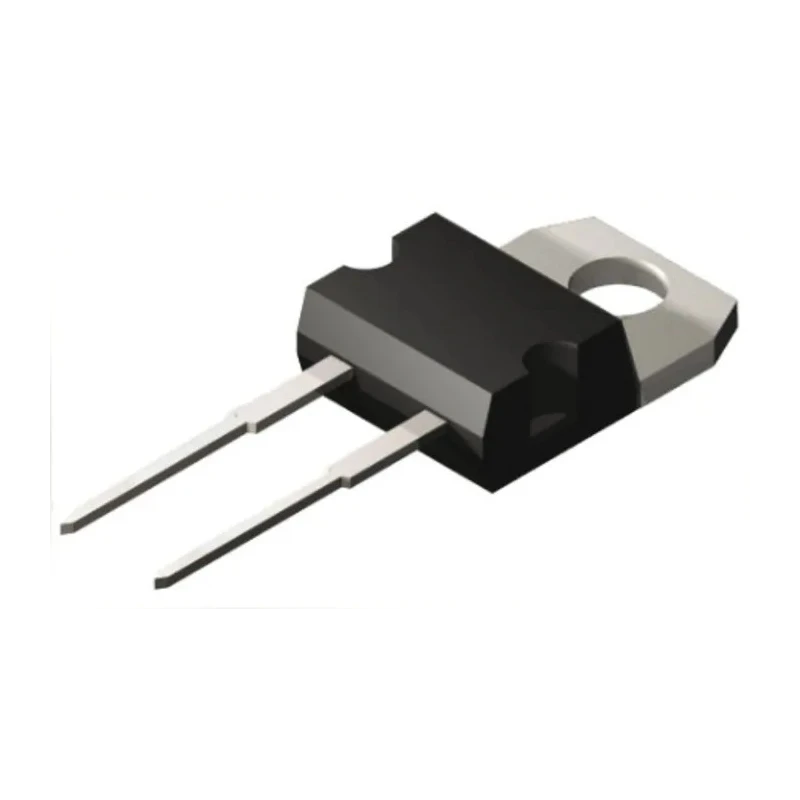

STMicroelectronics 650 V 22 A Silicon Carbide (SiC) Schottky Diode, 2-Pin TO-220AC Package STPSC6H065DI

STMicroelectronics STPSC6H065DI Silicon Carbide (SiC) Schottky diode is engineered for demanding power electronic applications requiring high voltage and current handling capabilities. This 2-pin TO-220AC packaged diode is rated for a maximum continuous forward current of 22 A and peak reverse repetitive voltage of 650 V, making it ideal for medium power rectification and high efficiency power conversion.

Featuring Silicon Carbide technology, the diode provides ultra-fast switching with negligible reverse recovery, significantly reducing switching losses compared to traditional silicon diodes. The SiC construction ensures excellent thermal stability and temperature-independent switching behavior up to 175°C, allowing operation in harsh industrial conditions.

The diode supports a high forward surge current of up to 400 A, which ensures robustness under transient overload conditions frequently encountered in power supply and motor drive circuits. Its suitability for power factor correction (PFC) applications makes it an excellent choice for energy efficient industrial power systems.

Designed for through-hole mounting, the TO-220AC package offers easy integration in printed circuit boards with robust mechanical and electrical characteristics. The epoxy molding adheres to V0 UL94 flammability rating, ensuring electrical safety standards compliance.

Typical applications include industrial power supplies, renewable energy inverters, motor drives, and power factor correction circuits in commercial and industrial HVAC systems. This diode ensures improved operational efficiency and longevity in demanding electronic environments.

This diode features an ultra-high performance power Schottky rectifier construction. It offers negligible reverse recovery, ensuring efficient switching with low losses. Switching behavior remains independent of temperature up to 175°C.

Designed with high forward surge capability, supporting up to 400 A peak non-repetitive forward surge current. The diode is dedicated for Power Factor Correction (PFC) applications. Key mechanical dimensions are 15.9 mm height, 10.4 mm length, 4.6 mm width, and 3.85 mm pin diameter.

Constructed with V0-rated epoxy meeting UL94 standards for electrical insulation. Suitable for through-hole mounting in power conversion circuits. Operates reliably from -40°C to a maximum of 175°C operating temperature.
