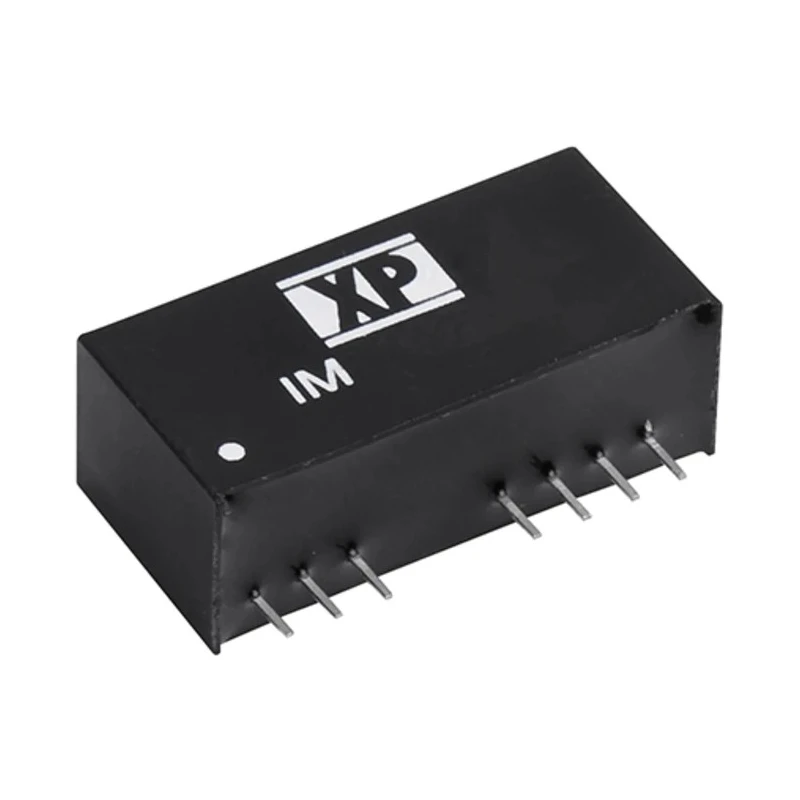

XP Power Isolated DC-DC Converter 5V DC Output, 200 mA, 2 W, 9 - 36V DC Input, Through Hole, IM2405S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IM DC/DC Converter, 5V dc/ 200 mA, 36V dc |
| Brand | XP Power |
| Efficiency | 81% |
| Length | 26mm |
| Model | IM2405S |
| Depth | 12.5mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IM |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1200000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -5V dc |
| Input Ratio4 | 1 |
Key Features
- Provides an isolated 5V DC output at up to 200 mA from a broad 9 - 36V DC input range.
- Supports dual output operation for a versatile range of requirements.
- Delivers a maximum output power of 2 W suitable for compact power supply design.
- Features through hole SIP package for robust PCB assembly.
- Offers isolation voltage of 1.5 kV DC for enhanced electrical safety and protection.
- High MTBF of 1,200,000 hours for reliable long-term use.
- Efficient design with up to 81% conversion efficiency.
- Operates in temperature ranges from -40°C up to 100°C, suitable for demanding environments.
Product Description
XP Power IM2405S is an isolated DC-DC converter designed to deliver a regulated single 5V DC output at 200 mA, with a maximum power rating of 2 W. Supporting a wide input range from 9V to 36V DC, this converter is an optimal solution for powering sensitive electronic components in applications that demand electrical isolation and stable voltage conversion.
This model features a through hole mounting in a compact industry-standard 7-pin SIP package, making it suitable for direct integration into printed circuit boards in industrial control systems, instrumentation, and embedded electronics. Providing dual outputs, the converter ensures flexibility and adaptability for varied load requirements. The 1.5 kV DC isolation voltage further enhances safety and minimizes risk of electrical interference between input and output, protecting downstream circuitry.
Reliable operation is underscored by its high MTBF (Mean Time Between Failures) of 1,200,000 hours, and the device operates efficiently at up to 81% energy conversion. With an extended operating temperature range from -40°C to 100°C, IM2405S is suitable for harsh environments and demanding use cases, including manufacturing, laboratory, and industrial sites where robust and continuous power supply is essential.
Its compact dimensions (26mm length, 9.2mm width, 12.5mm depth) allow integration even in space-constrained PCB layouts. The SIP package simplifies assembly ensuring stable mechanical and electrical contacts. The converter is part of the XP Power IM series, well-regarded for its reliability, innovation, and protection features such as continuous short circuit protection and remote on/off controls.
Use cases include driving low-power sensors, microcontrollers, communication modules, and interface circuits in industrial automation, test and measurement instruments, and commercial electronics. Whether providing stable voltage isolation or safeguarding against ground loops, XP Power IM2405S meets stringent requirements for precision and safety.
Explore further options in DC-DC Converters in EnvMart’s Electronics & Electricals category, or browse the complete XP Power range for solutions tailored to industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 36V DC.
It provides an output current of 200 mA.
The maximum output power is 2 W.
This unit features a through hole mounting type.
It has an efficiency rating of up to 81%.
The isolation voltage is 1.5 kV DC.
The dimensions are 26mm in length, 9.2mm in width, and 12.5mm in depth.
It operates within a temperature range of -40°C to 100°C.
This converter supports dual output operation.
The MTBF is rated at 1,200,000 hours.
It uses a SIP (Single In-line Package) type.
It is suitable for powering sensitive electronic components in industrial control systems, instrumentation, and embedded electronics.
