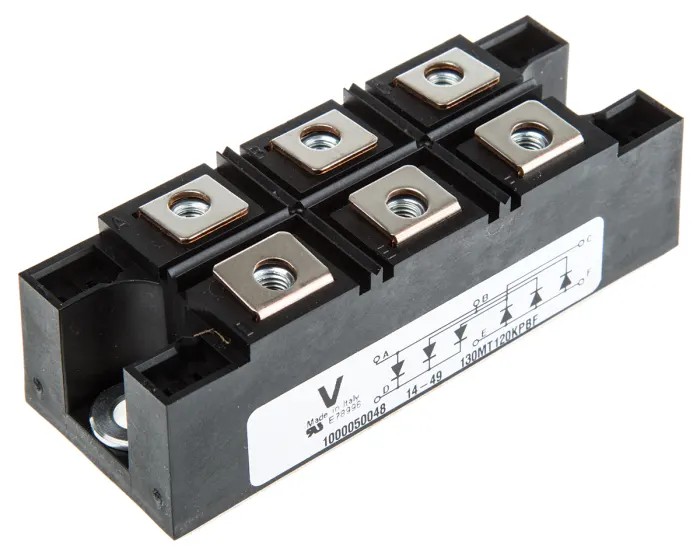

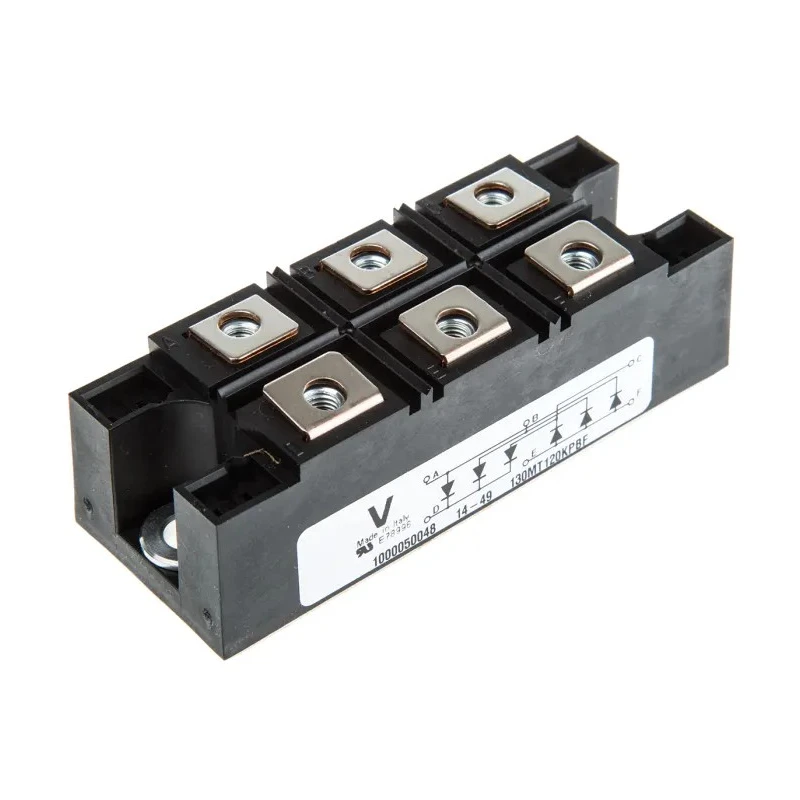

Vishay Bridge Rectifier Module, 1200 V 1.18 kA Peak Forward Surge Current, 160 A Forward Current, 6-Pin VS-130MT120KPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-130MT120KPBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VS-130MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 6 |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.18kA |
| Forward Current If | 160A |
| Peak Forward Voltage Vf | 1.63V |
Key Features
- Designed for panel mounting with a compact INT-A-PAK package.
- Supports a forward current of 160 A for heavy-duty operations.
- Operates efficiently within -40°C to 150°C temperature range.
- 6-pin configuration suitable for three-phase circuits.
- High thermal conductivity package with electrically insulated case.
- Ensures excellent power-to-volume ratio for space-constrained installations.
- Isolating voltage capability of 4000 Vrms for safety and durability.
- Peak forward voltage is 1.63 V, optimizing power loss.
Product Description
Vishay VS-130MT120KPBF Bridge Rectifier Module is a highly reliable semiconductor device designed for converting alternating current (AC) to direct current (DC) in industrial and commercial applications. Featuring a three-phase configuration and a peak reverse repetitive voltage of 1200 V, it is ideal for full-wave rectification in power electronics. The module uses a robust INT-A-PAK package enabling panel mounting and maintaining excellent thermal performance with a maximum operating temperature of 150°C.

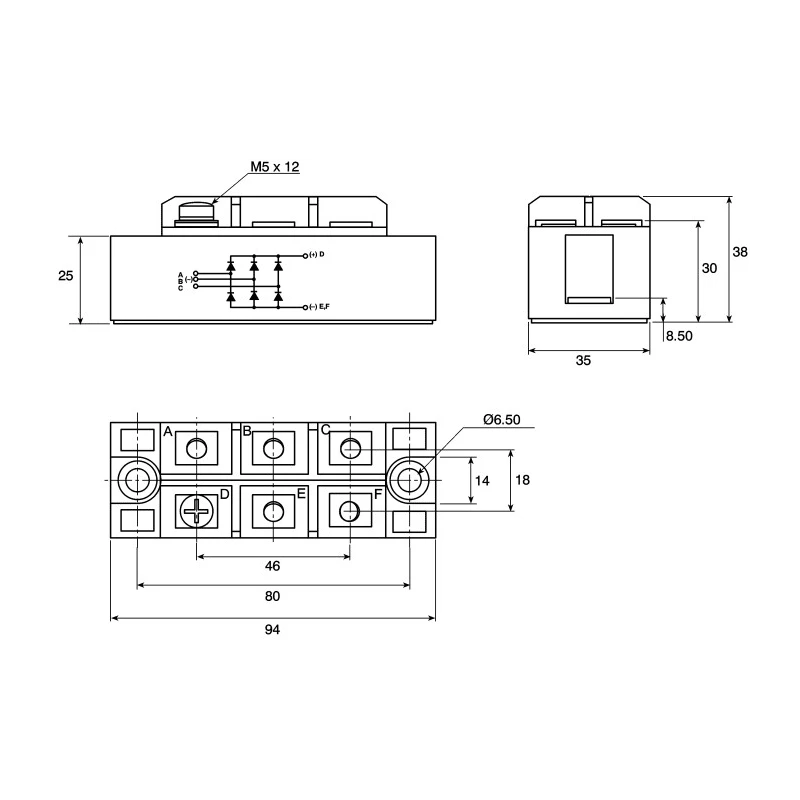

This rectifier supports a continuous forward current of 160 A and can withstand a peak non-repetitive forward surge current of 1.18 kA, ensuring durability in high surge current scenarios. It has a 6-pin configuration optimized for three-phase bridge rectification with a compact length of 94 mm, width of 35 mm, and height of 30 mm.
Its electrically insulated case enhances safety while providing an isolating voltage of 4000 Vrms. The device maintains a peak forward voltage of 1.63 V to minimize conduction losses and ensures a peak reverse current of 10 mA for effective blocking capability. Its construction offers an excellent power-to-volume ratio, making it suitable for space-sensitive equipment in industrial automation, power supplies, and heavy-duty electric modules.
The product is categorized under bridge rectifier modules often utilized in industrial machinery, power conversion systems, and high-power electronic equipment. Vishay's semiconductor technology underpins its reliability and performance in harsh environments.
Designed for panel mount with INT-A-PAK package. Three-phase single configuration with 6-pin arrangement. Handles up to 160 A forward current continuously. Capable of surge currents up to 1.18 kA peak forward surge current.
Wide temperature range operation from -40°C to 150°C. High isolating voltage of 4000 Vrms for safety. Compact dimensions with 94 mm length, 35 mm width, 30 mm height. Peak reverse voltage of 1200 V and low peak forward voltage of 1.63 V.
Explore more in the Electronics & Electricals category for Bridge Rectifier Modules and related semiconductor components on EnvMart for industrial and technical electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-130MT120KPBF bridge rectifier module supports a continuous forward current of 160 A.
This model has a peak reverse repetitive voltage of 1200 V, making it suitable for high-voltage applications.
It can withstand a peak non-repetitive forward surge current of 1.18 kA.
The dimensions of this unit are 94 mm in length, 35 mm in width, and 30 mm in height.
It operates efficiently within a temperature range of -40°C to 150°C.
This model is designed for panel mounting with an INT-A-PAK package.
The module features a 6-pin configuration, optimized for three-phase circuits.
The peak forward voltage is 1.63 V, which helps minimize conduction losses.
It has an isolating voltage capability of 4000 Vrms, enhancing safety and durability.
This bridge rectifier module is suitable for industrial machinery, power conversion systems, and high-power electronic equipment.
The peak reverse current is rated at 10 mA, ensuring effective blocking capability.
This model belongs to the VS-130MT series of bridge rectifier modules.
