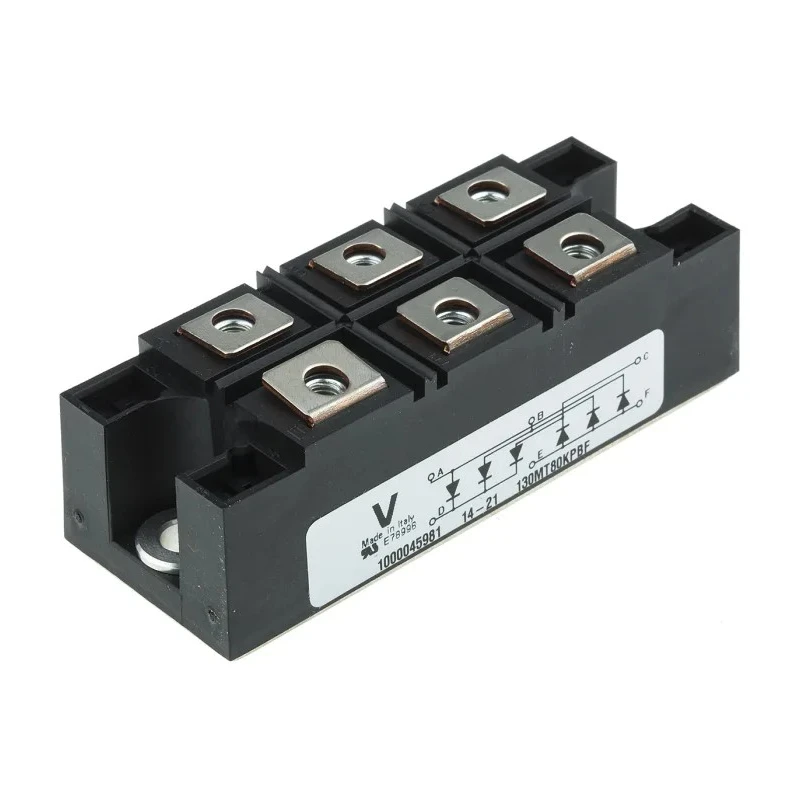

Vishay Bridge Rectifier Module 800 V 1.18 kA 6-Pin Single VS-130MT80KPBF

Vishay VS-130MT80KPBF is a high-performance bridge rectifier module engineered for converting alternating current (AC) input into direct current (DC) output in three-phase configurations. This module supports a peak reverse repetitive voltage of 800 volts and can sustain a forward current of 160 amperes, making it ideal for industrial power management and control systems.

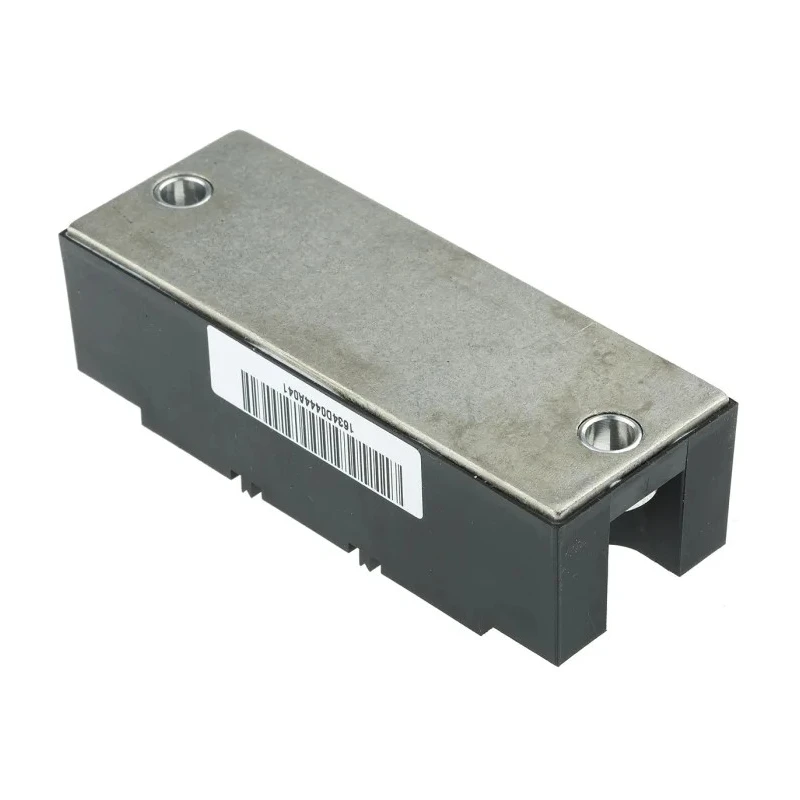

The device is housed in an INT-A-PAK package optimized for panel mounting with six pins, providing secure and reliable electrical connections. It features a high thermal conductivity case that is electrically insulated, enabling safe and efficient heat dissipation during high-load operation up to 150°C maximum temperature.

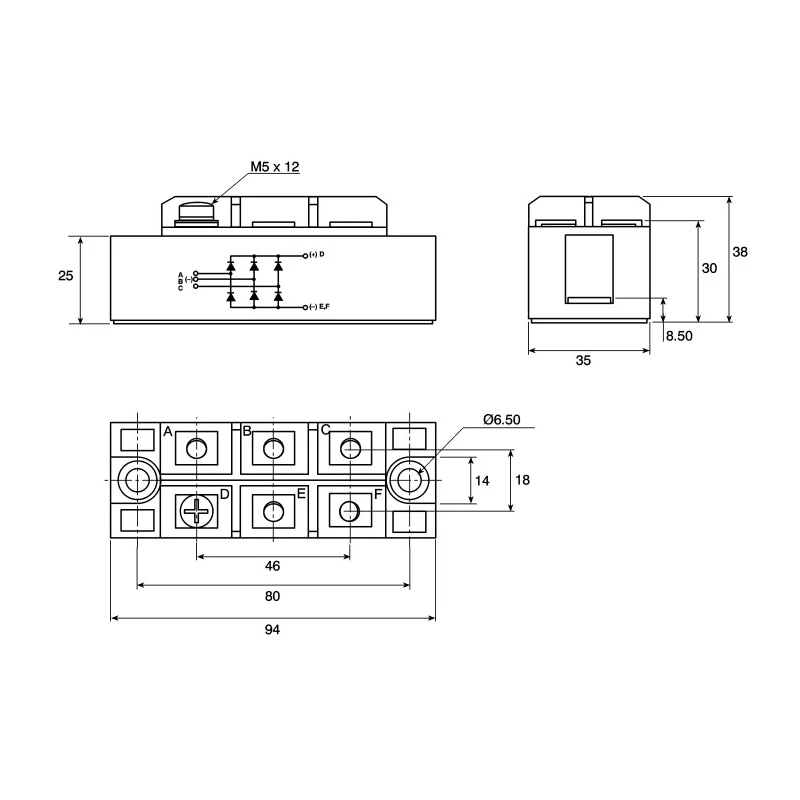

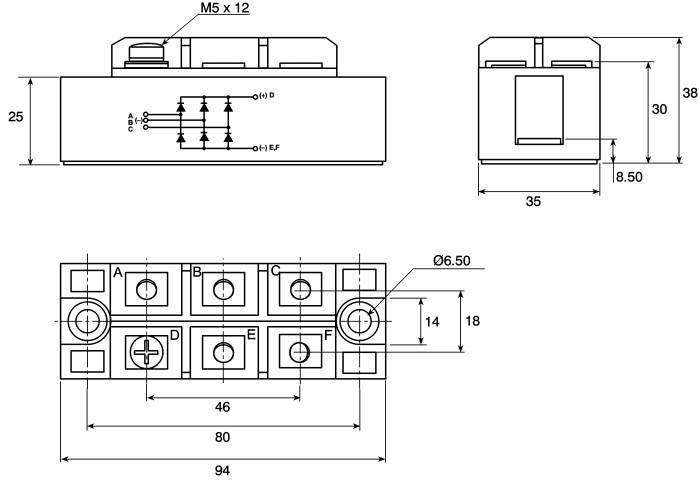

With a peak non-repetitive forward surge current rating of 1.18 kA, this bridge rectifier ensures robust performance against transient electrical surges often encountered in power electronics applications. Its compact dimensions of 94 mm length, 35 mm width, and 30 mm height facilitate space-saving installations in equipment and machinery.

This module exhibits a low forward voltage drop of 1.63 V and a peak reverse current of 10 mA, delivering efficient conversion and minimal power loss within the expected operating range from -40°C to 150°C. Although this product holds no specific automotive certifications, it meets strict durability and reliability criteria for standard industrial applications.

Peak reverse repetitive voltage rating of 800 V supports high-voltage applications. Forward current rating of 160 A suitable for heavy industrial loads. High surge current capacity of 1.18 kA ensures resilience against transients.

Compact INT-A-PAK power module with panel mount installation. Excellent thermal management due to high conductivity insulated case. Operating temperature range from -40°C up to 150°C. Three-phase bridge rectifier configuration with six-pin connections.

Isolating voltage of 4000 Vrms enhances operational safety. Low forward voltage drop reduces power dissipation. Compact dimensions allow for integration in tight spaces.

This Vishay Bridge Rectifier Module is well suited for various industrial, power electronics, manufacturing, and semiconductor applications where reliable three-phase rectification is required. Its robust design and thermal performance make it ideal for use in power supply units, motor drives, and other demanding electrical control systems.
