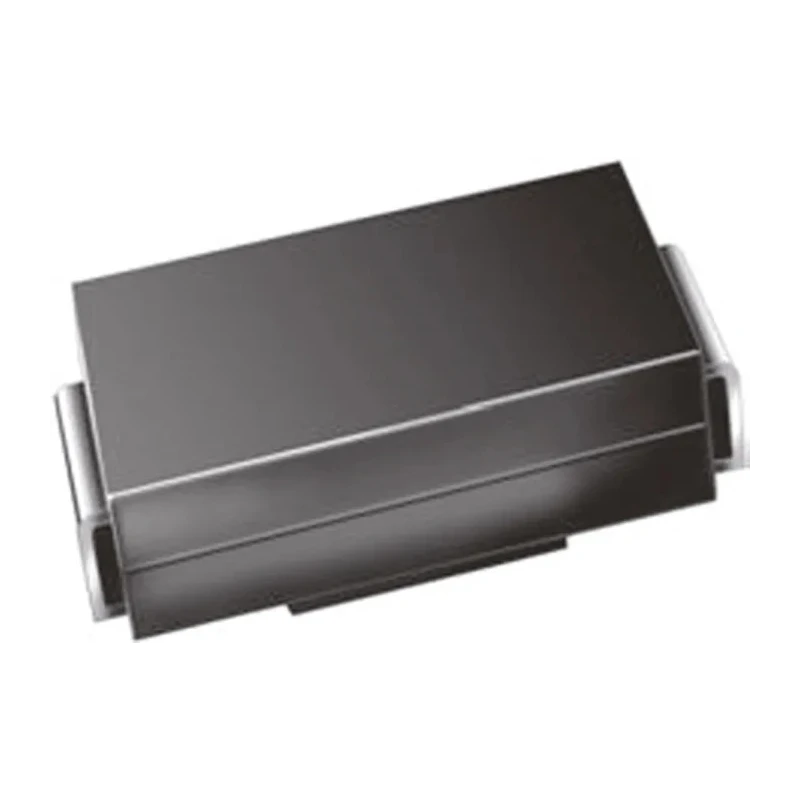

Vishay 30 V 3 A Surface Mount Schottky Rectifier DO-214AC B330LA-E3/61T

Vishay B330LA-E3/61T is a high-performance Schottky rectifier designed for surface mount applications, featuring a maximum forward current of 3 A and peak reverse voltage of 30 V. This 2-pin diode is packaged in the DO-214AC (SMA) form factor with compact dimensions (4.5 mm length, 2.79 mm width, 2.09 mm height), making it suitable for space-constrained electronic circuit boards.

Engineered with a low forward voltage drop of 500 mV and fast switching capabilities, it efficiently reduces power loss in power supply circuits, improving overall system efficiency. The diode supports a peak non-repetitive forward surge current of 65 A, enabling it to withstand transient spikes without degradation.

Operating reliably over a wide temperature range from -65°C to 150°C, the B330LA-E3/61T is suitable for industrial, electronic, and power management applications that demand robust performance under varied environmental conditions.

The device conforms to multiple rigorous semiconductor standards such as JESD 201 Class 2, JESD 22-B102, J-STD-002, RoHS compliance ensuring environmental friendliness, UL 94 V-0 flame retardant rating, and J-STD-020 certification. These certifications demonstrate its quality, reliability, and safety in electronic system integration.

This Schottky rectifier is suitable for use in power supplies, DC-DC converters, freewheeling diodes in relay coils, and general rectification needs requiring fast recovery and low voltage drops. Its single diode configuration with 2 pins simplifies the component footprint and mounting process during assembly.

Maximum continuous forward current of 3 amperes ensures dependable operation under typical load conditions. Peak reverse repetitive voltage rating of 30 volts protects devices against voltage spikes. Compact DO-214AC package with standardized dimensions enhances PCB layout flexibility.

Low forward voltage of 500 mV reduces conduction losses in power circuits. High surge current handling of 65 amperes safeguards against transient thermal stresses. Wide operating temperature range from -65°C to 150°C for use in diverse industrial environments.

Certified to multiple industry standards ensuring compliance and safety. Single diode, 2-pin configuration ideal for discrete semiconductor applications in power electronics. Discover a comprehensive range of Vishay semiconductor products including Schottky diodes and rectifiers at EnvMart for your industrial and electronic component requirements.
