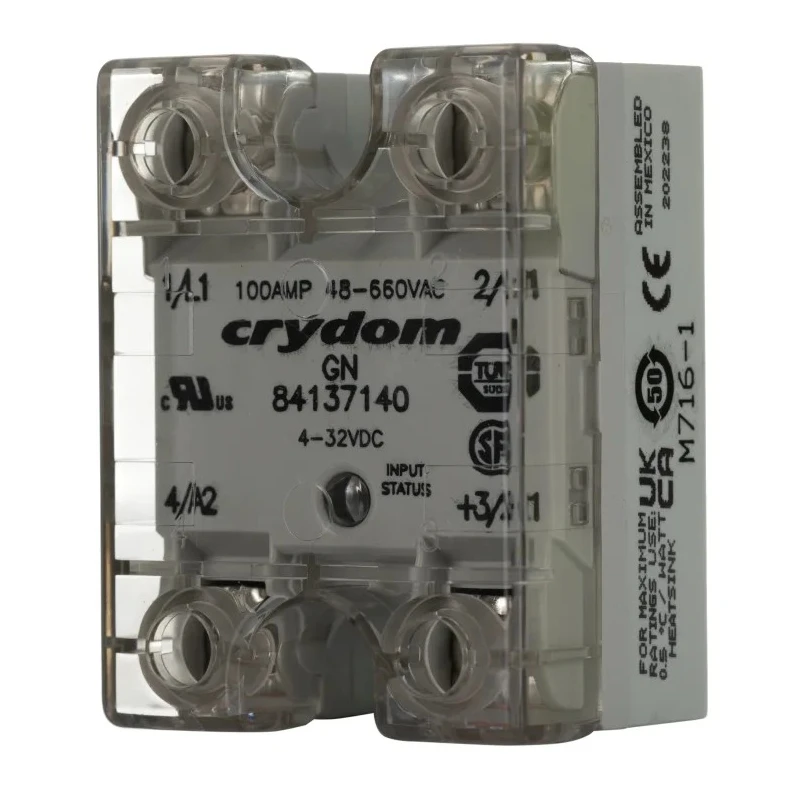

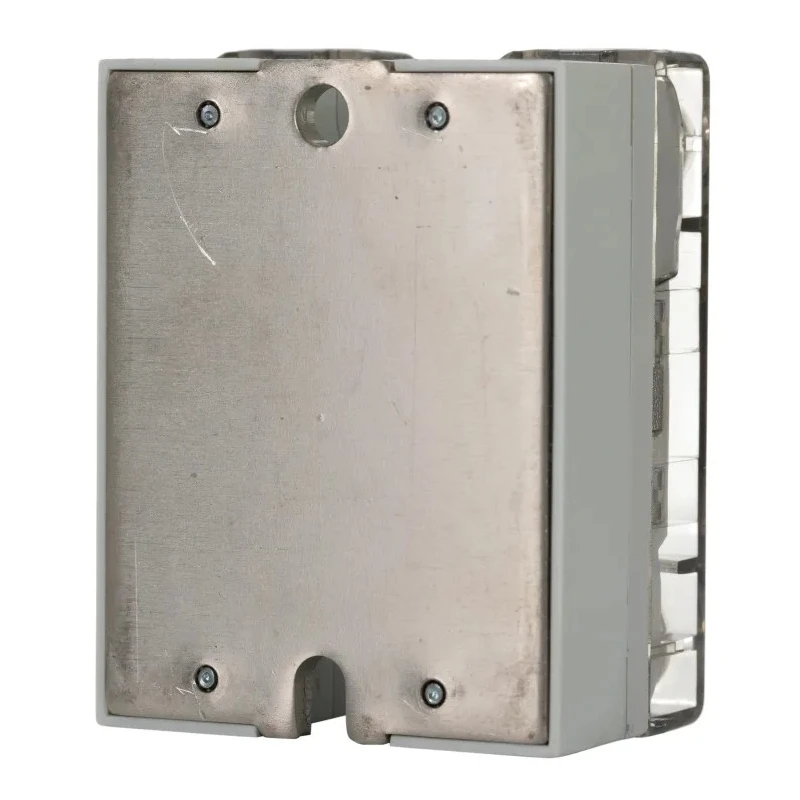

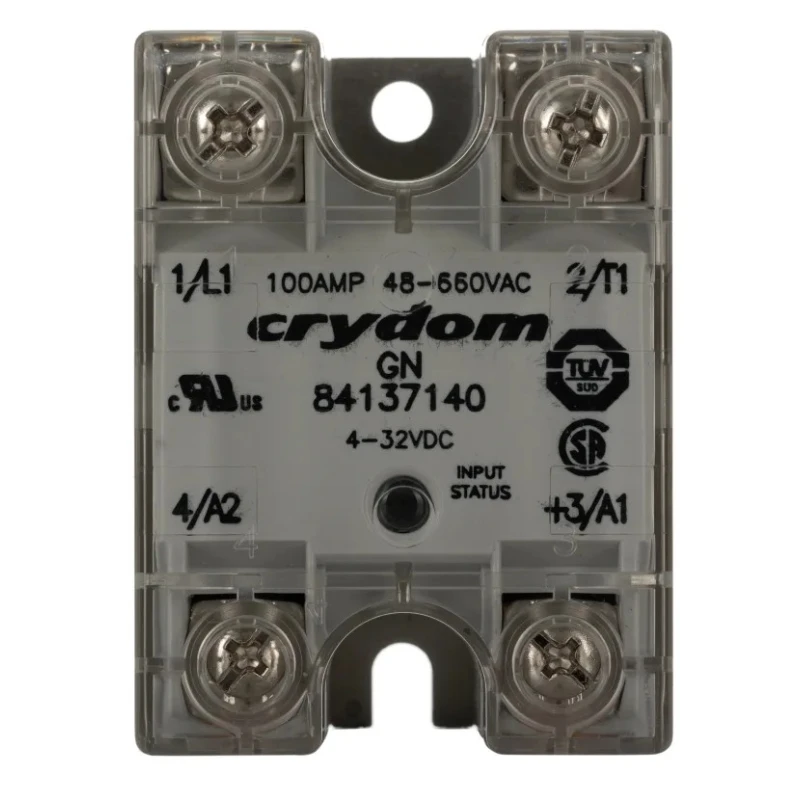

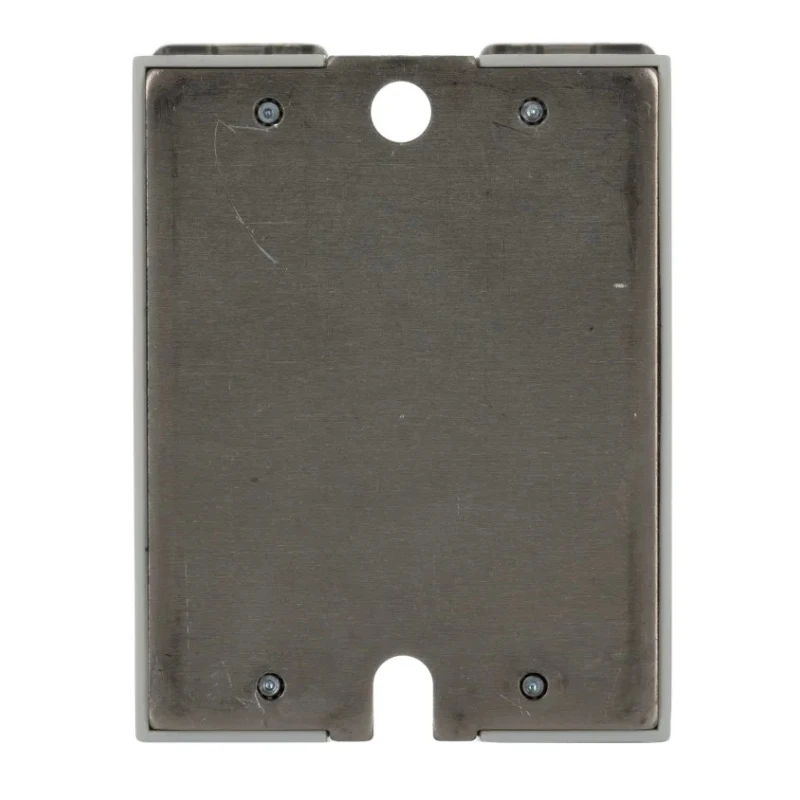

Crydom GN Series Solid State Relay, 100A Load, Panel Mount, 660V AC Load, 32V DC Control 84137140

Crydom 84137140 Solid State Relay is engineered for robust industrial control applications requiring reliable switching without mechanical wear. With a maximum load current of 100A and capable of handling up to 660V AC load voltage, this relay suits heavy-duty power control in manufacturing, robotics, lighting control, and automation systems.

The relay operates across a wide AC voltage range between 48V minimum and 660V maximum load, controlled by a DC input voltage ranging from 3V to 32V. Its screw terminal type ensures ease of installation and secure electrical connections. The zero cross switching function reduces electrical noise and prolongs the relay's operational life by switching loads at the zero crossing of the AC waveform.

The solid-state construction with SCR output type eliminates mechanical moving parts, providing silent, rapid, and reliable switching. The device's thermoplastic housing grants excellent impact resistance and durability under harsh industrial environments. An included green LED status indicator simplifies diagnostics by signaling the presence of control input.

With an IP20 rating, it offers protection against solid objects. It operates reliably in temperatures ranging from -40°C to 80°C and features capacitance of 8pF and low off-state leakage current of 0.25mArms, contributing to energy efficiency.

Dimensions are compact with 44.5mm length and 30.9mm height, facilitating easy panel mounting in constrained spaces. The product adheres to UL and CE standards, assuring compliance with international safety and quality benchmarks.

Supports a wide AC load voltage range from 48V to 660V for versatile applications. Operates on a 32V DC control voltage with screw terminal connections for secure and easy wiring. Equipped with zero cross switching for reduced electrical noise and extended relay life.

Features a durable thermoplastic housing suitable for harsh industrial environments. Includes a green LED status indicator for easy input signal monitoring. Has an operating temperature range from -40°C to 80°C ensuring reliability in varied conditions.

Conforms to UL and CE standards, ensuring quality and safety compliance. Compact dimensions of 44.5mm length and 30.9mm height for efficient panel integration.

This Crydom solid state relay is ideal for industrial, manufacturing, HVAC, robotics, and lighting control applications requiring precise, reliable power switching. Explore more Solid State Relays and industrial control components on EnvMart to enhance your system's automation and efficiency.
