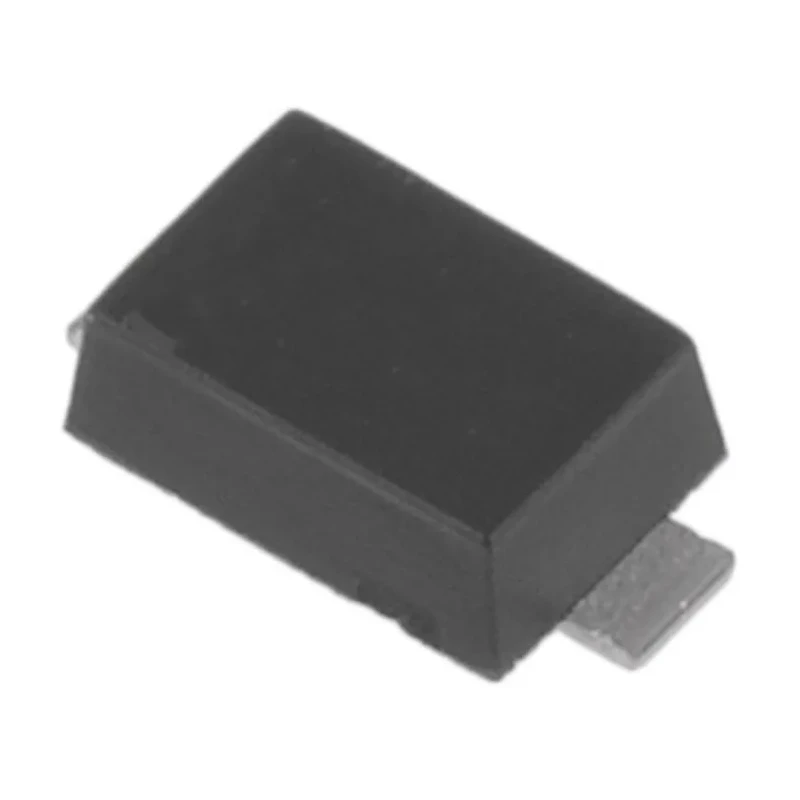

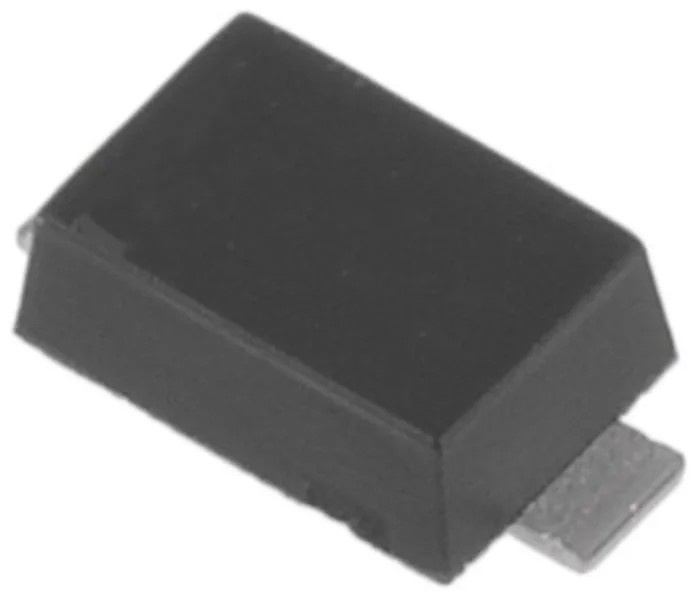

onsemi Schottky Diode 40 V 500 mA Surface Mount 2-Pin SOD-123 NRVB0540T1G

onsemi NRVB0540T1G Schottky Diode is a discrete semiconductor designed for efficient rectification and fast switching applications in electronic circuits. This device is housed in a compact 2-pin SOD-123 surface mount package engineered for optimal automated board assembly. Its maximum continuous forward current is 500 mA, and it can withstand a peak reverse repetitive voltage of 40 V, making it ideal for low voltage power supply and signal processing tasks in industrial, automotive, and consumer electronic applications.

The diode's low maximum forward voltage of 0.62 V minimizes conduction losses, contributing to enhanced circuit efficiency. It operates reliably across a broad temperature range from -55°C to 150°C, suiting demanding thermal environments including automotive applications compliant with the AEC-Q101 standard. The device incorporates a guardring for stress protection, enhancing avalanche ruggedness and reliability during surge conditions.

Mechanical features include an epoxy molded case with corrosion resistant external surfaces and leads that are readily solderable. The cathode is clearly marked with a band for easy polarity identification. Its small footprint, measuring just 2.84 mm in length, 1.8 mm in width, and 1.25 mm in height, allows designers to maximize PCB space.

This diode is supplied in reel formats of 3000 units (7 inch reel) or 10000 units (13 inch reel) on 8 mm tape, optimizing inventory and automated pick-and-place manufacturing processes. The lead and mounting surface temperature for soldering purposes is limited to a max of 260 °C for 10 seconds to avoid damage during assembly.

Typical industrial use cases include power rectification in power supplies, DC/DC converters, and automotive electronic circuits where high reliability and low forward voltage drop are critical. This component is also suited for general-purpose low voltage switching applications where efficient and robust diode performance is required.

Explore more semiconductor and diode components in the Electronics & Electricals category at EnvMart for reliable sourcing of quality devices. This diode features a continuous forward current rating of 500 mA. Peak repetitive reverse voltage is rated at 40 V, suitable for low voltage applications.

The device exhibits a low forward voltage drop of 0.62 V, improving efficiency. Operating temperature ranges from -55°C to 150°C, supporting wide thermal environments. Package is epoxy molded with corrosion-resistant leads for durability and solderability.

Automotive compliant meeting AEC-Q101 standards for reliability. The diode includes a cathode band polarity designator and guardring for stress protection. Peak non-repetitive forward surge current capability is 5.5 A for transient robustness.

Compact dimensions of 2.84 mm length, 1.8 mm width, and 1.25 mm height facilitate high-density PCB layout. Available on reels of 3000 or 10000 units for efficient manufacturing supply chains.
