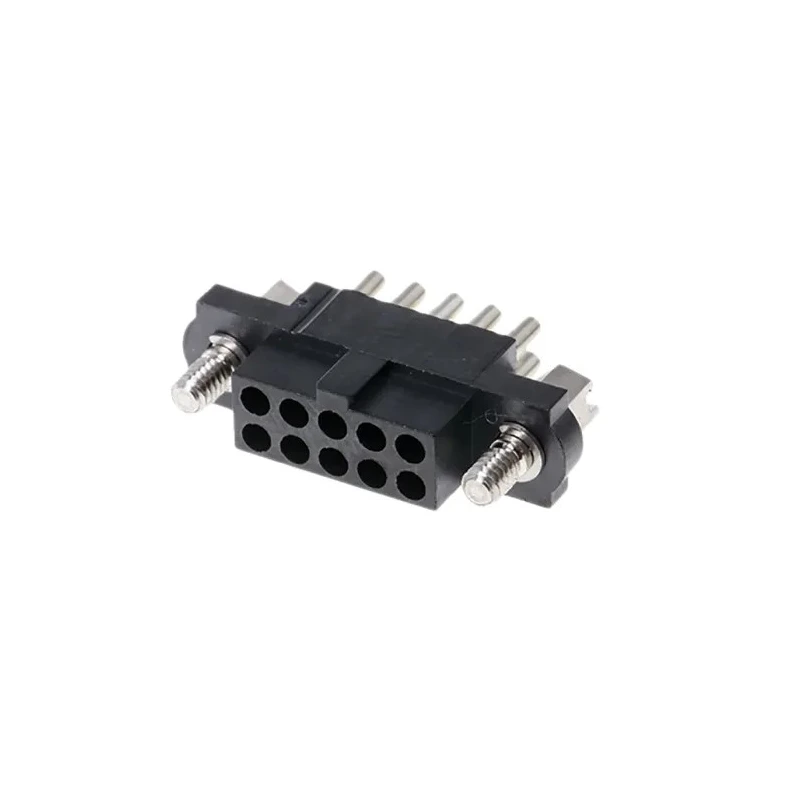

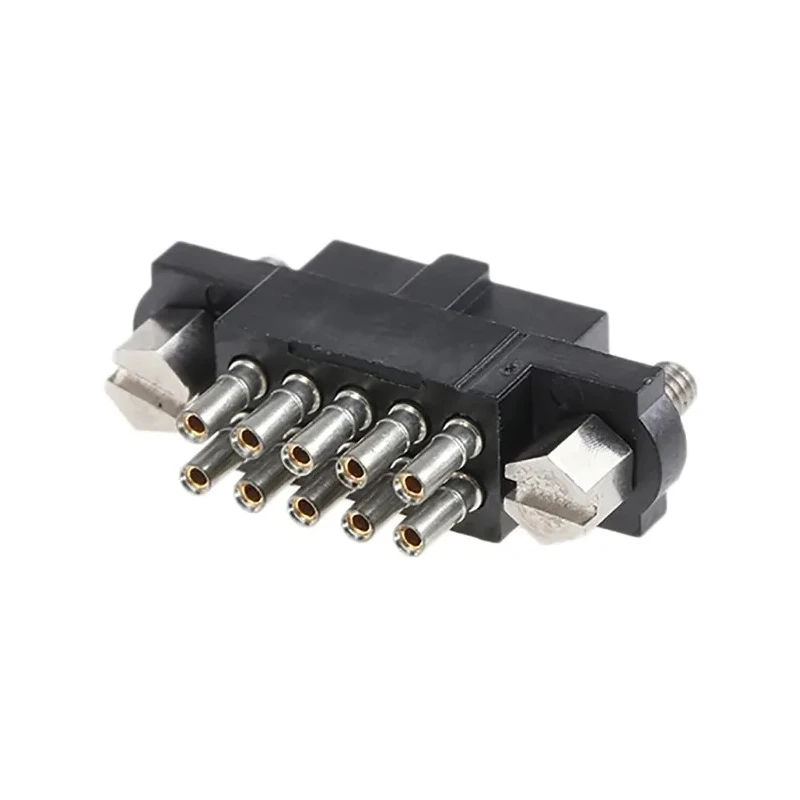

HARWIN Datamate J-Tek Series Straight Panel PCB Socket 10-Contact 2 Row 2 mm Pitch Crimp M80-4601042

HARWIN M80-4601042 Datamate J-Tek Series straight panel PCB socket is a high-reliability connector designed for demanding industrial and aerospace applications.

This PCB Socket features 10 female contacts arranged in 2 rows with a 2 mm pitch, supporting crimp termination for easy and secure wiring. The contacts are manufactured with beryllium copper alloy and plated in gold to achieve excellent conductivity and resistance to corrosion. The housing material is polyphenylene sulphide, offering both insulation and mechanical durability.

The socket is intended for panel mounting with a straight orientation, enabling board-to-board connection systems operating at 12A and 120V. It is built to withstand operating temperatures ranging from -55°C to 125°C, making it suitable for harsh environments typically found in aerospace, military, telecommunications, medical, robotics, and petroleum industries.

The connector also incorporates polarization features and fully shrouded housings to prevent mis-mating and protect contacts. It includes a jackscrew fixing mechanism for secure panel attachment. This product complies with established standards for electrical connectors, ensuring reliability in commercial off-the-shelf (COTS) applications where safety and performance are critical.

Typical applications include high vibration or shock environments where long mating cycles are required without performance degradation. The 4-finger contact design enhances connection integrity and ensures consistent electrical performance under extreme conditions.

The socket features 10 female crimp contacts with a 2 mm pitch. Housing is polyphenylene sulphide, providing insulation and robustness. Operating temperature range from -55°C to 125°C. Rated for 12A current and 120V voltage operation.

Panel mount type with straight orientation allows reliable board-to-board connection. Gold-plated beryllium copper alloy contacts ensure durability and conductivity. Jackscrew mounting method for secure panel fixing. Designed for aerospace, military, medical, industrial, and telecommunications use.
