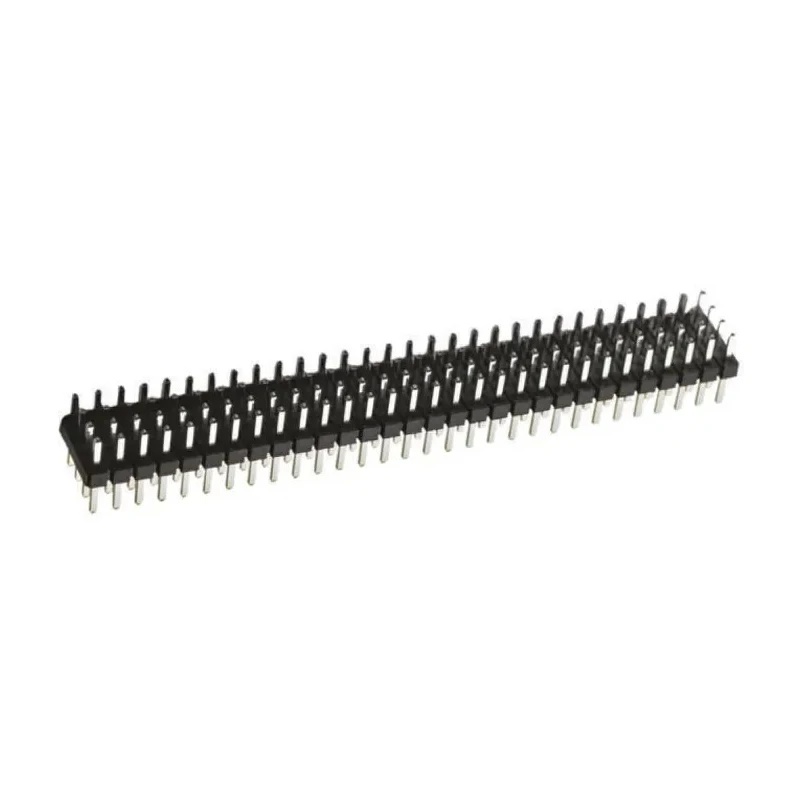

HARWIN 2 mm Pitch Male Pin Backplane Connector, Straight Male, 16 Column, 4 Row, 120 Way M22-6023042
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 1A |
| Model | M22-6023042 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Number of columns | 16 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Male |
| Connector Gender | Male |
| Backplane Connector Type | Male Pin |
Key Features
- Constructed with nylon housing for durability and stability.
- Features brass contacts plated with gold for enhanced conductivity and corrosion resistance.
- Supports a current rating of 1 ampere suitable for embedded PC applications.
- Configured with 16 columns and 4 rows to provide 120 connection points.
- Operates reliably between -55°C and 105°C for harsh environments.
- Designed with straight male orientation for easy board stacking compliance.
- Ideal for PC/104 Plus compatibility in embedded computing platforms.
- Contact termination is via soldering, ensuring secure electrical connections.
Product Description
HARWIN M22-6023042 is a high-performance 2 mm pitch male pin backplane connector tailored for embedded PC and industrial applications. Featuring 120 contact points arranged in 16 columns and 4 rows, this connector supports robust inter-board communication with a current capacity of 1A. The nylon housing provides mechanical stability and excellent insulation, while the brass contacts plated with gold ensure superior conductivity and corrosion resistance.
This connector is designed with a straight male orientation to facilitate precise stacking configurations compliant with PC/104 Plus standards. It has a through-hole mounting style, which enhances mechanical retention on printed circuit boards. Operating temperature ranges from -55°C to 105°C, making it suitable for demanding industrial and embedded environments.
The termination is soldered, providing reliable and durable electrical connections necessary for specialized backplane and rack connector applications. Produced by HARWIN, this model is manufactured in Taiwan, Province Of China, adhering to strict quality control requirements.
Constructed with durable nylon housing and gold-plated brass contacts. Supports a continuous current of 1 ampere. Features 16 columns and 4 rows with 120 contacts in total. Through-hole mounting for secure PCB connection.
Operating temperature range from -55°C to 105°C for versatile application environments. Solder termination ensures firm and stable contact connections. Compliant with PC/104 Plus connectors for embedded PC use. Manufactured in Taiwan, Province Of China.
This backplane connector is well suited for electronics manufacturing, industrial controls, embedded systems, and rack-mounted communication devices. It offers precise mechanical and electrical features required for reliable and long-term operation in harsh and precision-demanding applications.
Explore more HARWIN Connectors and power & connector solutions in our Electronics & Electricals section at EnvMart for high-quality industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1 ampere, making it suitable for embedded PC applications.
The connector features 16 columns and 4 rows, providing a total of 120 connection points.
The termination type is solder, ensuring secure and stable electrical connections.
The housing is constructed from nylon, providing mechanical stability and excellent insulation.
The contacts are made of brass and are plated with gold for enhanced conductivity and corrosion resistance.
It features a through-hole mounting style, which enhances mechanical retention on printed circuit boards.
This connector is designed with a straight male orientation for easy board stacking compliance.
It is compliant with PC/104 Plus standards, making it suitable for embedded computing platforms.
This model is manufactured in Taiwan, Province Of China, adhering to strict quality control requirements.
It is well suited for electronics manufacturing, industrial controls, embedded systems, and rack-mounted communication devices.
This connector is part of the M22 series by HARWIN.
