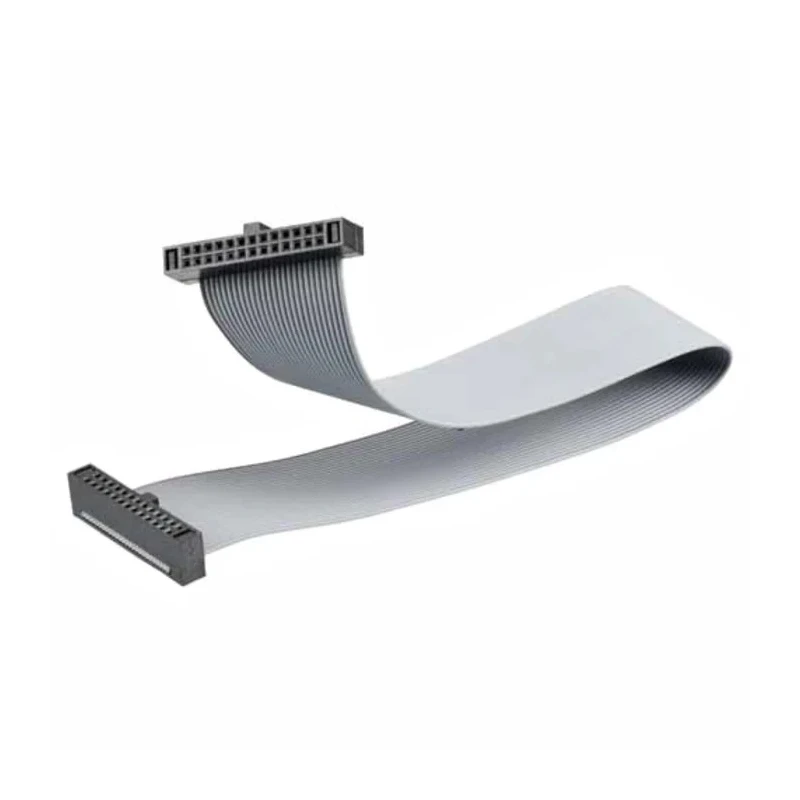

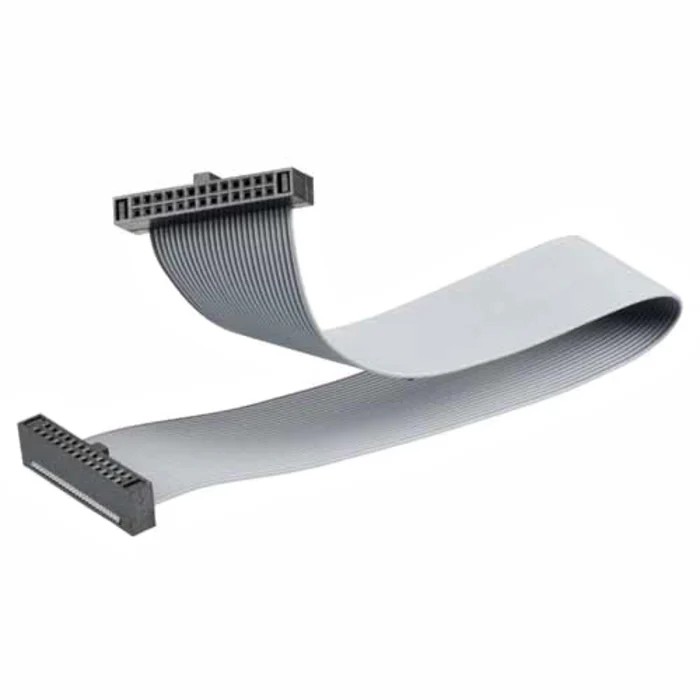

HARWIN 10-Way Female IDC Connector for Cable, 2 Row, 300V AC, 500mA Current, Series Archer M50 M50-9100542

HARWIN M50-9100542 is a precision-engineered 10-way female IDC (Insulation Displacement Connector) designed for cable mounting with a 2-row configuration. The connector supports a voltage of 300V AC and electrical current of 500mA, making it suitable for various industrial and electronic applications.

The connector features a 1.27mm pitch between contacts, facilitating compact wiring setups. The contacts are made of phosphor bronze and plated with tin over nickel and a layer of gold to ensure longevity and excellent conductivity, which resists corrosion and wear during usage.

The housing is constructed from Polybutylene Terephthalate (PBT), providing high durability and resistance to environmental stress. This shrouded female connector is specifically designed for cable mounting with straight orientation, enabling easy integration into cable assemblies.

With operating temperature limits from -20°C to 105°C, this connector is well suited for demanding environments in electronics manufacturing, telecommunications, aerospace, and other industrial sectors that require reliable interconnections.

The termination type is solder, ensuring robust mechanical and electrical connections. It is part of the Archer M50 series, adhering to strict quality and design specifications. Features 10 female contacts arranged in 2 rows for versatile cable connections.

Supports 300V AC voltage rating and 500mA current. Contact pitch is 1.27mm for precise cable interfacing. Durable housing made from Polybutylene Terephthalate (PBT). Contacts plated with tin over nickel and gold to resist corrosion.

Shrouded design offers safety by preventing accidental contact. Mount type is cable with straight orientation for simplified installation. Operating temperature range from -20°C to 105°C for reliability. Solder termination for secure connectivity.

Manufactured in China under the Archer M50 series standard.

This IDC connector is ideal for applications in electronics components, wiring harnesses, and assembly lines across industries including industrial machinery, telecommunications, and electronic equipment manufacturing. The connector's shrouded female contacts provide enhanced safety and performance for critical cable connections.
